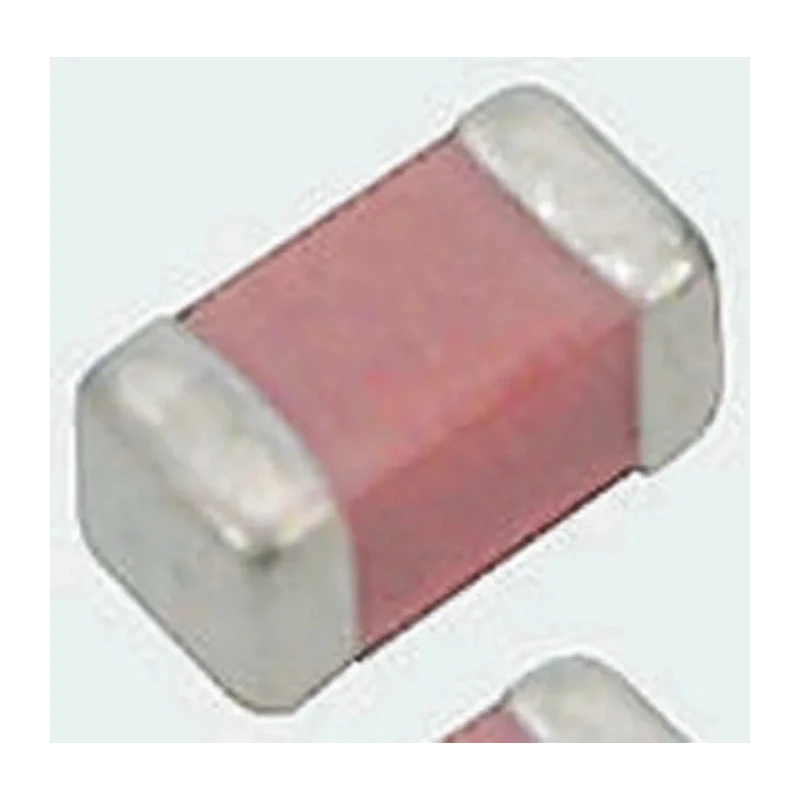

Vishay 18 pF Multilayer Ceramic Capacitor 100V DC ±5% C0G Dielectric Surface Mount 0603 Package VJ0603A180JXBAC

Free Delivery in India | Lowest Global Shipping Charges

Vishay 18 pF Multilayer Ceramic Capacitor 100V DC ±5% C0G Dielectric Surface Mount 0603 Package VJ0603A180JXBAC

Name: Vishay 18 pF Multilayer Ceramic Capacitor 100V DC ±5% C0G Dielectric Surface Mount 0603 Package VJ0603A180JXBAC
Brand: Vishay
SKU: 201842
Price: 0.07 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Vishay Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	Vishay
Height	0.94mm
Length	1.6mm
Model	VJ0603A180JXBAC
Packaging	7 in Reel/Paper Tape
Width	0.8mm
Mount Type	Surface
Series	VJ
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±5 %
Capacitance	18pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS, JEDEC JS709A, IEC 61249-2-21
Package/Case	0603
Dielectric	C0G

Key Features

High stability C0G dielectric ensures ultra-low temperature coefficient of capacitance.
Surface mount design suitable for automated PCB assembly.
Capable of operating from -55°C up to 150°C.
Package size of 1.6mm length by 0.8mm width and 0.94mm height.
Compliant with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards.
Reliable Noble Metal Electrode system ensures long-term performance.
Ideal for timing, tuning, sensor interface, and decoupling circuits.
Available on 7-inch reel with paper tape packaging for efficient machine insertion.

Product Description

Vishay VJ0603A180JXBAC is a high-quality multilayer ceramic capacitor designed for industrial and electronic applications requiring precise capacitance and temperature stability. This capacitor features an 18 pF capacitance with a voltage rating of 100V DC and a ±5% capacitance tolerance, housed in a compact 0603 surface mount package.

The capacitor utilizes C0G (NP0) dielectric, renowned for its ultra-stable characteristics, very low temperature coefficient of capacitance, and excellent aging properties, making it highly reliable in precision timing and filtering circuits. Its dimensions of 1.6 mm length, 0.8 mm width, and 0.94 mm height allow for space-saving PCB layouts in commercial and industrial electronic assemblies.

Designed for surface mount technology, it supports automated assembly processes and offers robust electrical performance with a maximum operating temperature of 150°C and a minimum of -55°C. The capacitor meets several standards including RoHS compliance, JEDEC JS709A, and IEC 61249-2-21, ensuring compatibility with environmental and quality mandates.

Typical applications include timing and tuning circuits, sensor and scanner interfaces, decoupling/filtering of high frequency signals, and surge suppression in various industrial, manufacturing, laboratory, and commercial electronic systems.

Packaging on a 7-inch reel with paper tape facilitates efficient insertion into assembly machinery, improving production efficiency for large volume manufacturing. High stability C0G dielectric with ultra-low temperature coefficient of capacitance.

Surface mount 0603 package enabling compact PCB designs. Wide operating temperature range from -55°C to 150°C. Compliance with RoHS, JEDEC JS709A, IEC 61249-2-21 standards. Reliable Noble Metal Electrode system for longevity.

Suitable for precision timing, decoupling, filtering, and surge applications. Packaging in 7 inch reel with paper tape for automated pick-and-place.
