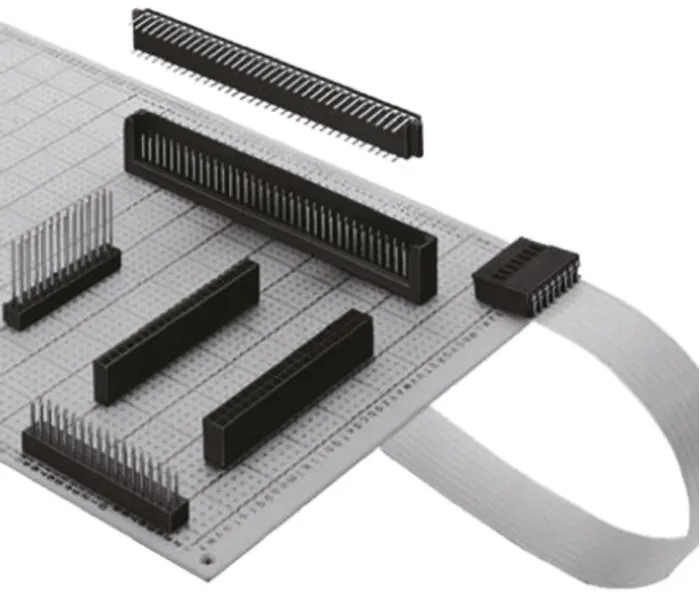

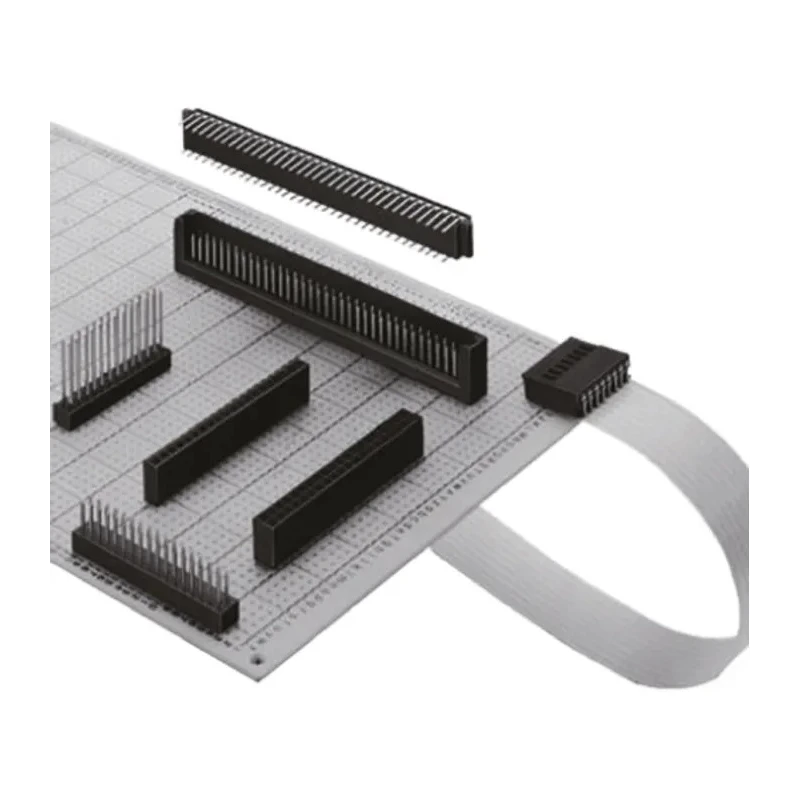

Hirose HIF3H Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder HIF3H
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 300V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | HIF3H |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | HIF3H |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- This connector provides a reliable board-to-board connection for electronic devices.
- It supports a current rating of 12A and a voltage rating of 300V.
- Constructed with bronze contacts plated in gold for excellent conductivity and corrosion resistance.
- The housing material is black UL94V-0 Polybutylene Terephthalate ensuring flame retardance.
- Designed for through-hole mounting with a straight orientation for easy PCB integration.
- Operates reliably between -55°C and 85°C temperature range.
- Includes polarization guides to prevent mis-insertion except for the 10-contact version.
- Made in Japan, ensuring high quality and durability.
Product Description
Hirose HIF3H Series Straight Through Hole PCB Socket, model HIF3H, is a 40-contact, 2-row, 2.54 mm pitch solder type connector designed for board-to-board applications. It operates at 300V and supports currents up to 12A, making it suitable for various electronic equipment requiring reliable PCB connectivity.
The connector features high-quality bronze contacts plated with gold, ensuring superior electrical performance and long-lasting corrosion resistance. Its housing is made from black UL94V-0 rated Polybutylene Terephthalate (PBT), providing flame retardant properties essential for electronic safety standards. The through-hole mount design and straight orientation facilitate easy installation on printed circuit boards.
The HIF3H series includes polarization guides (except the 10-contact variant) to prevent incorrect insertion, enhancing reliability in circuit assembly. The operating temperature range spans from -55°C to 85°C, ensuring performance under various environmental conditions.
Manufactured in Japan, this PCB socket aligns with high industry standards, delivering durability and precision. Typical industrial applications include use in computers, office automation systems, electronic instrumentation, and other termination equipment.
This PCB socket offers 40 contacts arranged in 2 rows with a consistent 2.54 mm pitch. Supports electric current capacity of 12 amperes at 300 volts operating voltage. Bronze contacts with gold plating provide superior conduction and durability.
Black PBT housing complies with UL94V-0 flame retardant standards for safety. Through-hole mounting and straight orientation enable secure PCB installation. Operates effectively in temperature conditions from -55°C up to 85°C.
Polarization guides help to avoid mis-insertion during assembly. Originates from Japan, ensuring premium manufacturing standards. Widely applicable in computer and office automation hardware, and electronic device assembly.
Explore the Hirose connector range and PCB Sockets on EnvMart for reliable electronic connectivity solutions compatible with industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 12A.
The voltage rating for this connector is 300V.
The contacts are made of bronze and are plated with gold for conductivity, while the housing is constructed from black UL94V-0 Polybutylene Terephthalate.
It operates reliably between -55°C and 85°C.
This model features 40 contacts arranged in 2 rows.
It is designed for through-hole mounting.
Yes, it includes polarization guides to prevent mis-insertion, except for the 10-contact version.
The pitch size of the contacts is 2.54 mm.
It is a board-to-board connector system.
The termination type is solder.
It is manufactured in Japan.
It is suitable for various electronic equipment, including computers, office automation systems, and electronic instrumentation.
