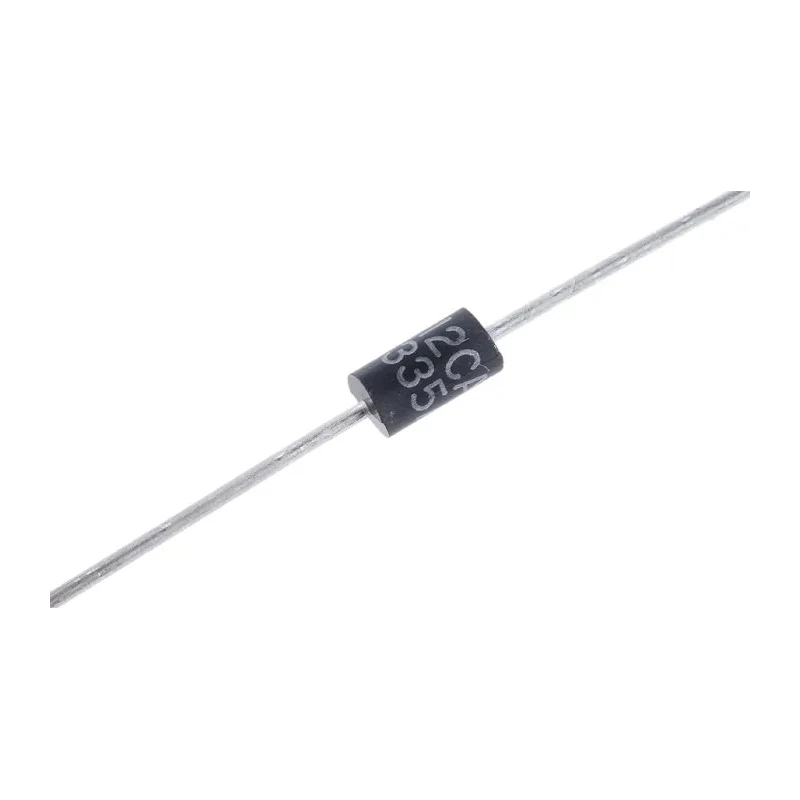

Vishay 1-Element Bi-Directional TVS Diode 500 W, 2-Pin DO-15 SA12CA-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.3mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | SA12CA-E3/54 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 19.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25.1A |
| Maximum Reverse Leakage Current | 1μA |
| Vishay SA12CA, Bi-Directional TVS Diode, 500W, 2-Pin DO-15Brand | Vishay |
| Bidirectional transient diode,SA12CABrand | Vishay |
Key Features
- Single diode configuration with bi-directional direction type.
- Peak pulse power dissipation rating of 500 watts.
- Through hole mount type with 2 pins in a DO-15 package.
- Operating temperature range from -55°C to 175°C.
- Clamping voltage of 19.9 volts for effective surge protection.
- Minimum breakdown voltage of 13.3 volts ensuring reliable triggering.
- Maximum reverse stand-off voltage of 12 volts for protective limiting.
- Compliance with Automotive Standard AEC-Q101.
Product Description
Vishay SA12CA-E3/54 1-Element Bi-Directional TVS Diode is engineered to protect sensitive electronics by suppressing transient voltage spikes and surges. It features a robust single diode construction with bi-directional protection capability, making it ideal for alternating current applications. The diode is housed in a durable DO-15 package suitable for through hole mounting, ensuring ease of integration into printed circuit boards.
Designed to handle a peak pulse power dissipation of 500 W, it can withstand significant transient energy, providing reliable surge protection for power and signal lines. The device operates efficiently within a wide temperature range from -55°C up to 175°C, making it suitable for demanding industrial and automotive environments.
The diode offers a minimum breakdown voltage of 13.3 V and a maximum reverse stand-off voltage of 12 V, ensuring precise triggering to clamp voltage at 19.9 V. With a maximum peak pulse current capability of 25.1 A, it can effectively absorb high surge currents and electrostatic discharge events, complying with the Automotive Standard AEC-Q101.
Its compact dimensions (7.6mm length and 3.3mm diameter) allow space-efficient PCB designs, while the axial leaded DO-15 package eases installation. This transient voltage suppressor is widely used across industrial, automotive, communication, and power supply protection applications where robust overvoltage protection is critical.
Single diode configuration with bi-directional surge protection. High peak pulse power capability of 500 W. Through hole mounting in a DO-15 package. Wide operating temperature range from -55°C to 175°C. Clamping voltage at 19.9 V for efficient voltage suppression.
Compliance with AEC-Q101 automotive standard for reliability. Compact size suitable for space-constrained applications. ESD protection and high peak pulse current handling. Ideal for automotive, industrial, and power supply overvoltage protection.
Compatible with various industrial and automotive electronic systems, the Vishay SA12CA-E3/54 ensures secure and reliable transient voltage suppression. Explore more products in the TVS Diode category on EnvMart to suit your more specific applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 500 watts.
It operates efficiently within a temperature range from -55°C to 175°C.
The clamping voltage for this diode is 19.9 volts, providing effective surge protection.
This diode features a 2-pin configuration and is designed for through hole mounting.
The minimum breakdown voltage is 13.3 volts, ensuring reliable triggering during operation.
This model can handle a maximum peak pulse current of 25.1 A.
It complies with the Automotive Standard AEC-Q101, ensuring reliability for automotive applications.
The dimensions of this diode are 7.6 mm in length and 3.3 mm in diameter.
This model features a single diode configuration with bi-directional protection capability.
It is widely used in industrial, automotive, communication, and power supply protection applications.
The country of origin for this diode is India.
