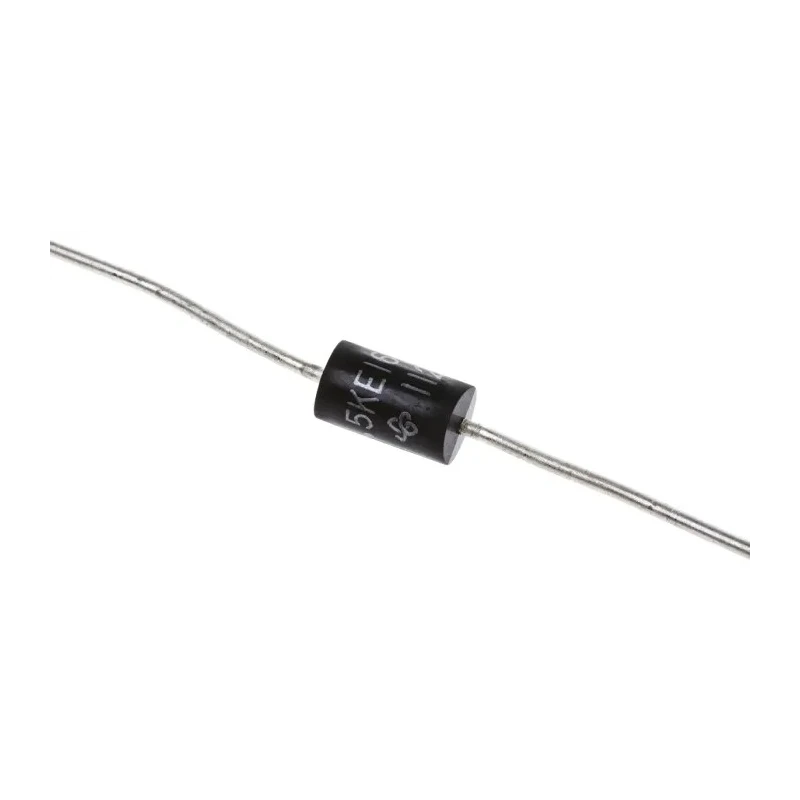

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power, 2-Pin Through Hole 1.5KE160CA-E3/54

Vishay 1.5KE160CA-E3/54 is a high-performance 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode designed for transient overvoltage protection in electronic circuits. With a peak pulse power dissipation rating of 1.5 kW, it provides reliable suppression of voltage spikes caused by inductive load switching, lightning, and other transient events.

This device features a single diode configuration and is bi-directional, making it suitable for protecting sensitive circuits against positive and negative voltage transients simultaneously. It offers a minimum breakdown voltage (Vbr) of 152 V and a maximum reverse standoff voltage (Vwm) of 136 V, ensuring steady-state operation within specified voltage limits.

The diode is housed in a 1.5KE axial package with through hole mount, facilitating easy and secure mounting on printed circuit boards. Its compact dimensions (9.5 mm length, 5.3 mm diameter) enable space-efficient integration in various electronic devices and systems.

Thermal performance is excellent, supporting operation from a minimum of -55°C up to a maximum of 175°C, suitable for demanding industrial, automotive, and consumer electronics environments. The diode meets stringent automotive reliability requirements as per the AEC-Q101 standard.

Additional features include a clamping voltage of 219 V, a maximum peak pulse current of 6.8 A, and extremely low leakage current (1 µA), which contribute to both protection efficiency and low power loss during standby conditions.

Single diode configuration provides effective transient voltage suppression. Bi-directional design protects circuits in both voltage polarities. High peak pulse power dissipation of 1.5 kW handles major transient events.

Wide operating temperature range ensures reliable performance. Compact through hole axial package for easy PCB mounting. Low leakage current minimizes power consumption. Meets AEC-Q101 automotive standards for robust applications.

Mechanical dimensions support versatile integration within devices.

This TVS diode is ideal for safeguarding electronic components in automotive electronics, industrial voltage regulation, power supplies, telecommunications, and general electronic circuit protection applications. Its robust design and standardized package make it a dependable choice for ensuring circuit durability and longevity.
