Vishay 1-Element Bi-Directional TVS Diode Surface Mount 1.5 kW Peak Pulse Power 130 V SMCJ130CA-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ130CA-E3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 209V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 144V |
| Maximum Reverse Stand-off Voltage Vwm | 130V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7.2A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Offers bi-directional protection to safeguard sensitive electronic circuits.
- Single diode configuration suitable for surface mount applications.
- Minimum breakdown voltage of 144 V ensures reliable voltage clamping.
- Maximum reverse stand-off voltage of 130 V for circuit protection.
- Capable of handling peak pulse current up to 7.2 A at 1 mA test current.
- Clamping voltage rated at 209 V for effective transient suppression.
- Operating temperature range from -55°C to 150°C ensures versatility in harsh environments.
- Designed to meet automotive standard AEC-Q101 for automotive system reliability.
Product Description
Vishay SMCJ130CA-E3 is a single element bi-directional transient voltage suppressor (TVS) diode designed for surface mount applications in electronic circuits. This diode provides effective transient voltage protection with a peak pulse power dissipation of 1.5 kW, ensuring circuit stability during voltage spikes.
Featuring a minimum breakdown voltage of 144 V and a maximum reverse stand-off voltage of 130 V, it delivers precise voltage clamping at a clamping voltage of 209 V. The diode supports a peak pulse current of 7.2 A at a 1 mA test current, making it suitable for protection against high-energy surges.

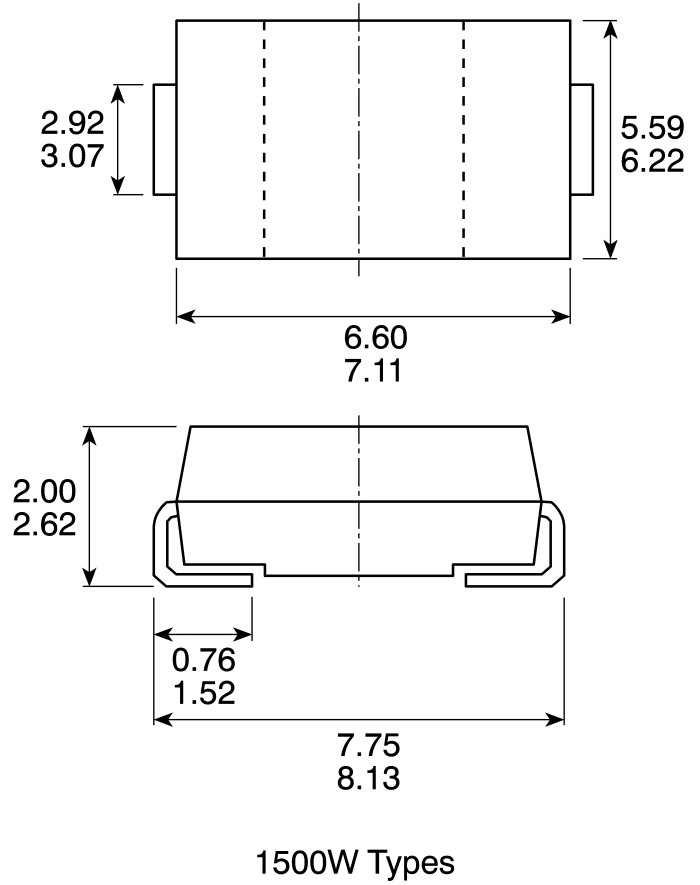

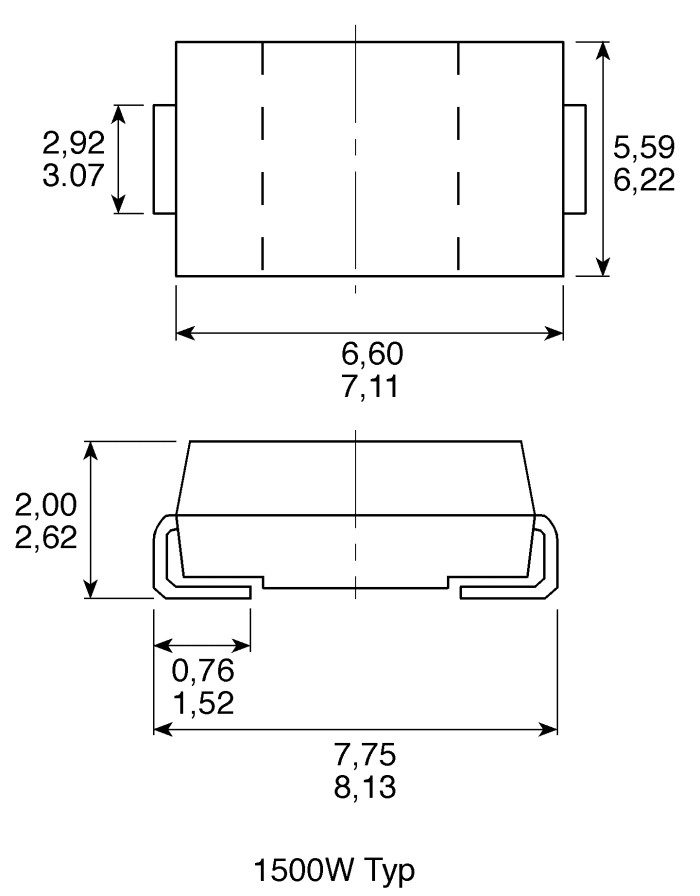

Constructed in a compact SMC package with dimensions 7.11 mm length, 6.22 mm width, and 2.42 mm height, the SMCJ130CA-E3 diode integrates easily into densely packed PCBs. It offers wide operating temperature range from -55°C to 150°C, enabling reliability in automotive, industrial, and commercial electronics.
This component meets the automotive quality standard AEC-Q101, making it ideal for automotive system transient voltage protection. Additionally, it provides electrostatic discharge (ESD) protection for enhanced device safety.
Bi-directional TVS diode configuration for bidirectional transient suppression. Single element per chip for focused circuit protection. Surface mount package type suitable for modern electronic assembly. Peak pulse power of 1.5 kW for strong surge absorption capability.
Operating temperature range from -55°C to 150°C for harsh environments. Automotive standard compliance ensuring robustness in automotive electronics. Low maximum reverse leakage current of 1 μA optimizing device efficiency.
Compact size supports space-constrained electronic designs. ESD protection safeguards end application from electrostatic events. Reliable option for industrial, automotive, consumer electronics, and power supply equipment.
Trust Vishay's TRANSZORB® TVS diodes for superior transient suppression solutions. Explore the full range of TVS Diodes and components available in the EnvMart industrial electronics category for your precise circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a peak pulse power dissipation of 1.5 kW, allowing it to effectively handle voltage spikes.
It features a minimum breakdown voltage of 144 V, ensuring effective voltage clamping during transients.
The clamping voltage is rated at 209 V, which aids in effective transient suppression.
This model can handle a maximum peak pulse current of 7.2 A at a 1 mA test current.
The dimensions are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, allowing for compact integration into PCBs.
It is designed for surface mount applications, facilitating modern electronic assembly.
This model features a single element per chip, providing focused circuit protection.
Yes, it meets the automotive standard AEC-Q101, ensuring reliability in automotive systems.
This model is suitable for applications in automotive, industrial, consumer electronics, and power supply equipment, providing transient voltage protection.
