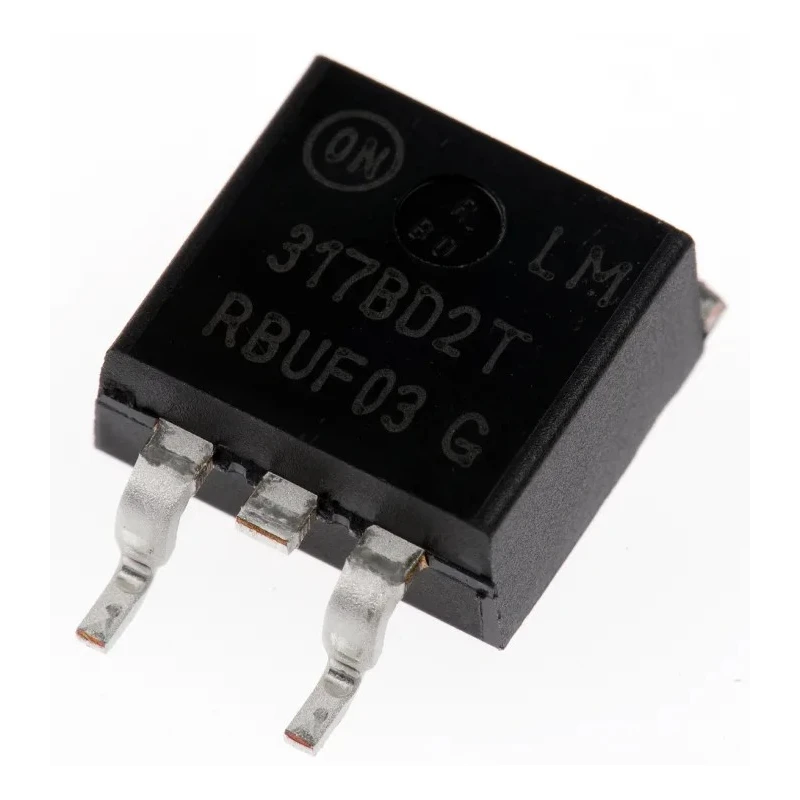

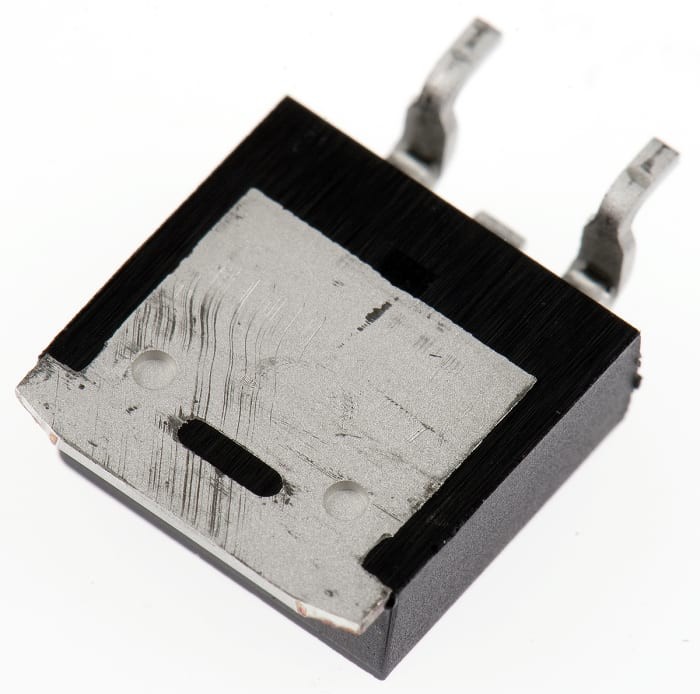

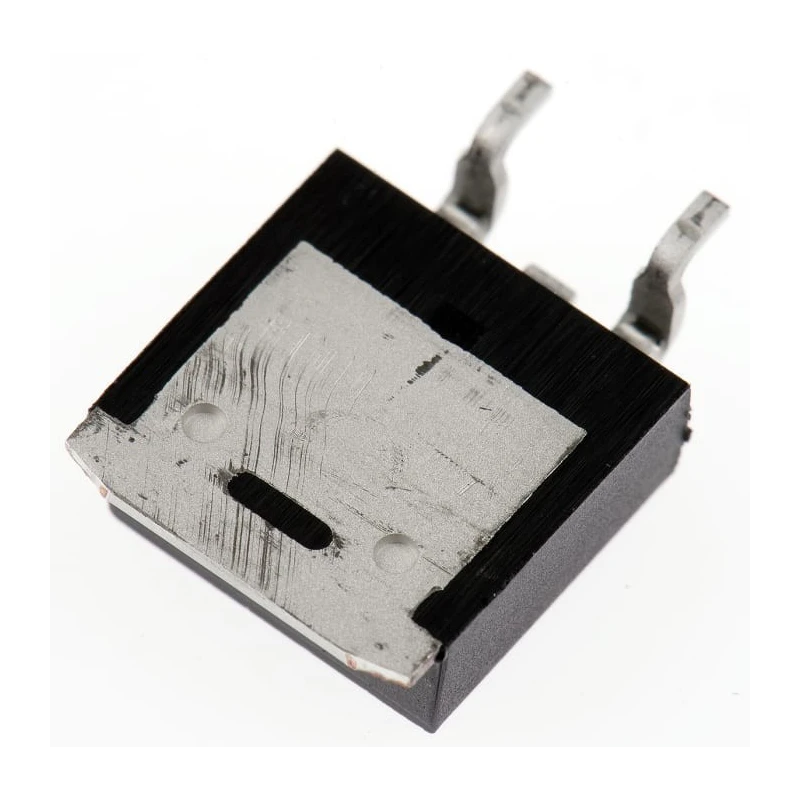

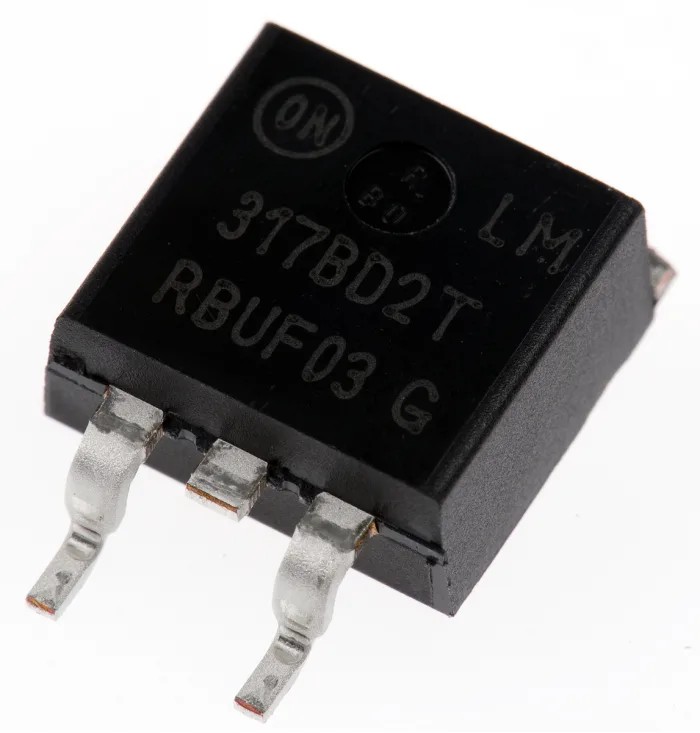

onsemi Adjustable Linear Voltage Regulator 1.2-37 V 1.5 A Surface Mount 3-Pin LM317BD2TG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 4.57mm |
| Length | 10.24mm |
| Model | LM317BD2TG |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | LM317 |
| Output Current | 1.5 A |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 4mA |
| Output Voltage Range | 1.25 V to 37 V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Surface-mount voltage regulator with a 3-pin configuration for easy PCB integration.
- Adjustable output voltage range from 1.25 V to 37 V suitable for various power regulation needs.
- Maximum output current of 1.5 A allows powering medium-load circuits efficiently.
- Features short circuit current limiting and thermal overload protection for reliable operation.
- Compact size with dimensions approximately 10.24 mm length, 9.35 mm width, and 4.57 mm height.
- Maximum operating temperature rating up to 125°C enables use in demanding environments.
- Complies with AEC-Q100 automotive standard ensuring quality and reliability.
- Positive polarity with a quiescent current of 4 mA minimizes power loss during operation.
Product Description
The onsemi LM317BD2TG is a versatile adjustable linear voltage regulator designed for reliable power management in a broad range of electronic and industrial applications. This device supports an output voltage adjustable from 1.25 V to 37 V, delivering up to 1.5 A output current, making it ideal for powering circuits requiring regulated voltage supply within this range.
Housed in a surface mount, 3-pin configuration, the compact physical dimensions of approximately 10.24 mm by 9.35 mm by 4.57 mm allow easy integration into modern PCB designs. The regulator provides features such as short circuit current limiting, thermal overload protection, and safe-area compensation, which safeguard both the device and the load in variable operational conditions.
This positive polarity regulator has a low quiescent current of 4 mA, ensuring efficient power consumption. Its rugged design supports a maximum operating temperature of 125°C and meets the automotive AEC-Q100 standard, assuring usage in automotive and harsh environments.
Typical applications include on-card regulation, programmable output regulation, and precision current regulation by using an external fixed resistor. Its flexible output voltage and current capabilities make it suitable for industrial instrumentation, consumer electronics, and automotive electronic systems.
Surface-mount 3-pin voltage regulator for compact PCB layouts. Adjustable output voltage from 1.25 V to 37 V for versatile power regulation. Maximum output current rating of 1.5 A supports various load demands. Protection features including short circuit limitation and thermal shutdown.
Compact size with detailed dimensions for precise design integration. High maximum operating temperature of 125°C compatible with demanding applications. Compliance with AEC-Q100 ensuring robustness for automotive applications.
Low quiescent current of 4 mA contributes to energy-efficient operation. Widely applied in electronics for precision voltage and current regulation.
Choose the onsemi LM317BD2TG for dependable and precise adjustable voltage regulation suitable for industrial, automotive, electronic manufacturing, and prototyping environments. Browse more Voltage Regulators and power management ICs in the EnvMart catalog for your engineering and production needs.
