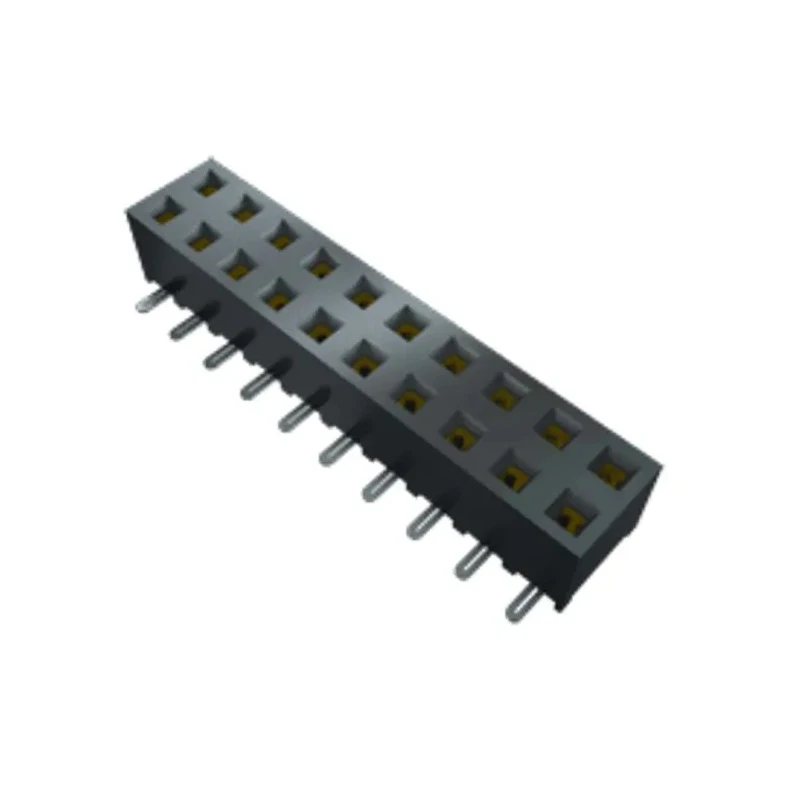

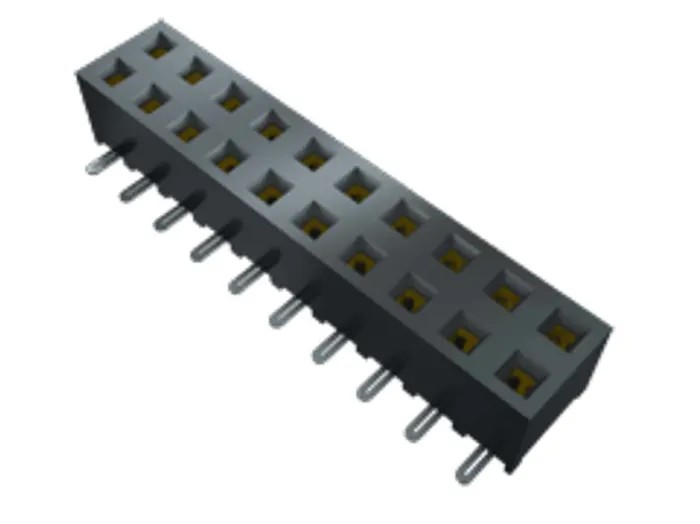

Samtec PCB Socket 10-Contact 2 Row 2 mm Pitch Surface Mount SMM-105-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SMM-105-01-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.27mm |
Key Features
- 10 contacts arranged in 2 rows for reliable connection.
- Surface mount termination type ensures secure PCB attachment.
- Constructed with black liquid crystal polymer housing for durability.
- Beryllium copper alloy contacts plated with gold for superior conductivity.
- Operates at a voltage rating of 350 V for robust performance.
- Designed with a straight orientation and 1.27 mm row pitch.
- Connector system supports board-to-board connections.
- RoHS compliant ensuring environmental safety.
Product Description
Samtec SMM-105-01-L-D is a high-quality PCB socket designed to provide a stable and efficient board-to-board connection in electronic assemblies. Featuring 10 female contacts arranged across 2 rows, this straight surface mount socket utilizes a 2 mm pitch which is ideal for dense component placement while allowing reliable electrical performance.
The socket is constructed with a black liquid crystal polymer housing which offers excellent mechanical strength and thermal stability across a broad temperature range from -55°C to 125°C. The beryllium copper alloy contacts are gold plated, ensuring optimal conductivity and resistance to corrosion, supporting a continuous current of 3.2 A per pin (with 2 pins powered).
This PCB socket is rated at 350 V for voltage, making it well suited for various industrial applications including power connectors, electronic manufacturing, and board interconnection systems. The surface mount termination type facilitates automated assembly and soldering processes on printed circuit boards.
Due to its robust design and compliance with RoHS directives, it is suitable for use in manufacturing environments requiring reliable and environmentally responsible electronic components. Its compact design with a 1.27 mm row pitch and straight orientation ensures versatility within a range of electronic assembly layouts.
10 contacts arranged in 2 rows for reliable connection. Surface mount termination type ensures secure PCB attachment. Constructed with black liquid crystal polymer housing for long-term durability. Beryllium copper alloy contacts with gold plating for high conductivity.
Voltage rating of 350 V supports various electrical applications. Operate between -55°C and 125°C temperature range. Connector system designed for board-to-board applications. RoHS compliant, ensuring environmental safety and compliance.
Ideal for industrial electronics, power connectors, and PCB assemblies. Explore more Samtec products and related PCB Sockets at EnvMart to suit your electronic assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 350 V, making it suitable for various electrical applications.
This model features 10 female contacts arranged in 2 rows for reliable connections.
It operates within a temperature range of -55°C to 125°C, allowing for use in diverse environments.
The housing is constructed from black liquid crystal polymer, providing mechanical strength and thermal stability.
It utilizes a surface mount termination type, facilitating automated assembly and soldering processes.
The socket supports a continuous current of 3.2 A per pin, with 2 pins powered.
The contacts are arranged with a pitch of 2 mm, which is ideal for dense component placement.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is designed for board-to-board connections, making it versatile for various electronic assemblies.
The orientation of this socket is straight, which is suitable for different assembly layouts.
The contacts are made from beryllium copper alloy and are gold plated for optimal conductivity.
The country of origin for this PCB socket is India.
