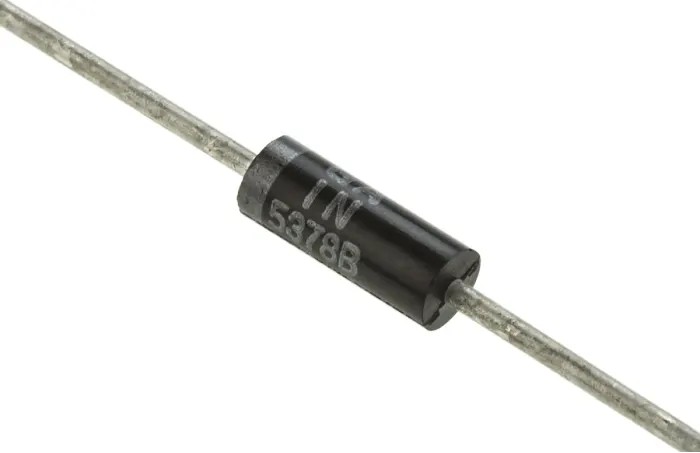

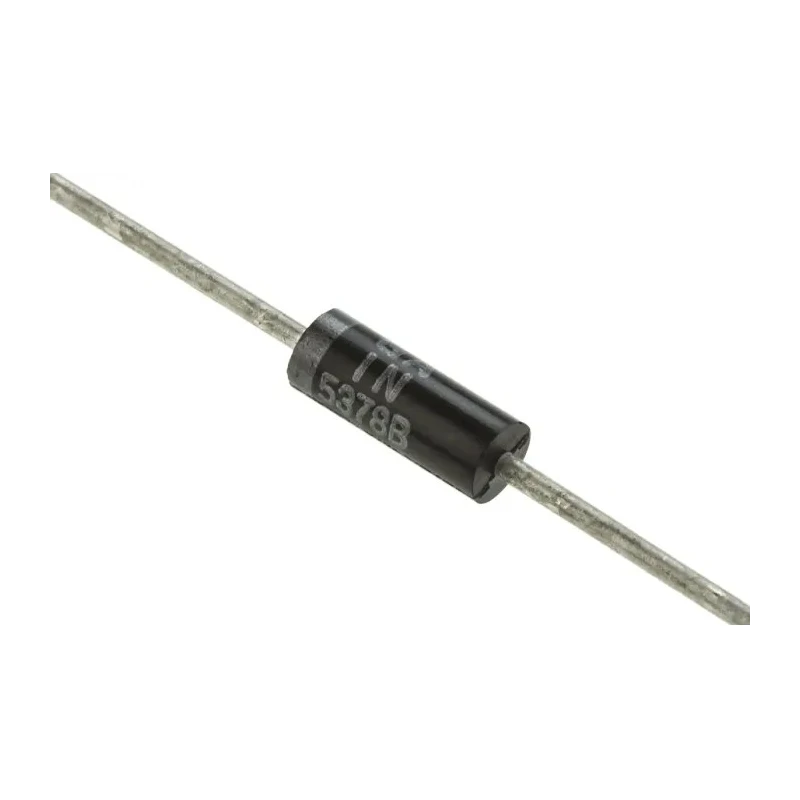

onsemi Zener Diode Single 5W 100V 5% Through Hole 2-Pin DO-15 1N5378BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5378BRLG |
| Mount Type | Through Hole |
| Series | 1N5378B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 12mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 100V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 800Ω |
| onsemi, 100V Zener Diode 5% 5 W Through Hole 2-Pin Case 17Brand | ON Semiconductor |
Key Features
- This Zener diode operates as a voltage regulator with a nominal voltage of 100 V.
- The device features a maximum power dissipation of 5 watts.
- It has a maximum Zener impedance of 800 ohms and a test current of 12 mA.
- The diode tolerates operating temperatures from -65°C to 200°C.
- This semiconductor component is configured with a single element per chip in a DO-15 package.
- Maximum reverse leakage current is 500 nA, ensuring reliable low leakage operation.
- The diode length is 8.89 mm with a height of 3.68 mm.
- Suitable for industrial, electronic components, power and connectors, and semiconductor applications.
Product Description
onsemi 1N5378BRLG Zener Diode is a high-quality semiconductor device specifically designed for voltage regulation applications. This through hole diode supports a nominal zener voltage of 100 V and a power rating of 5W, making it suitable for controlling voltage in electronic circuits.
The component is housed in a compact DO-15 package with two pins for through hole mounting, delivering reliable mechanical and electrical connectivity. Featuring a tight tolerance of 5%, it ensures steady voltage regulation performance under varying thermal conditions, supported by an operating temperature range from -65°C to 200°C.
With a maximum zener impedance of 800 ohms and a test current of 12 mA, this diode is optimized for precision in power and voltage handling within electronic devices.
Additional characteristics include a maximum reverse leakage current of just 500 nanoamperes, ensuring minimal leakage losses and stable operation in sensitive circuits. The physical dimensions of length 8.89 mm and height 3.68 mm facilitate integration into various industrial and manufacturing uses.
This device is especially suitable for industrial, electronic components, power & connectors, and semiconductor applications, where dependable voltage regulation is critical. It is part of the 1N5378B series from onsemi, recognized for quality and improved operating characteristics.
This Zener diode operates as a voltage regulator with a nominal voltage of 100 V. The device features a maximum power dissipation of 5 watts. It has a maximum Zener impedance of 800 ohms and a test current of 12 mA. The diode tolerates operating temperatures from -65°C to 200°C.
This semiconductor component is configured with a single element per chip in a DO-15 package. Maximum reverse leakage current is 500 nA, ensuring reliable low leakage operation. The diode length is 8.89 mm with a height of 3.68 mm.
Suitable for industrial, electronic components, power and connectors, and semiconductor applications. The 2-pin through hole design allows easy PCB assembly. Explore more high-quality semiconductor products and electronic components at EnvMart for your design and manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 100 V.
This model features a maximum power dissipation of 5 watts.
The diode has a length of 8.89 mm and a height of 3.68 mm.
The maximum reverse leakage current is 500 nA.
It can operate within a temperature range from -65°C to 200°C.
This diode is configured with 2 pins for through hole mounting.
The maximum Zener impedance is 800 ohms.
The test current is 12 mA.
It is housed in a DO-15 package.
This model has a single diode configuration per chip.
It is suitable for industrial applications, electronic components, power connectors, and semiconductor applications.
This diode is part of the 1N5378B series from onsemi.
