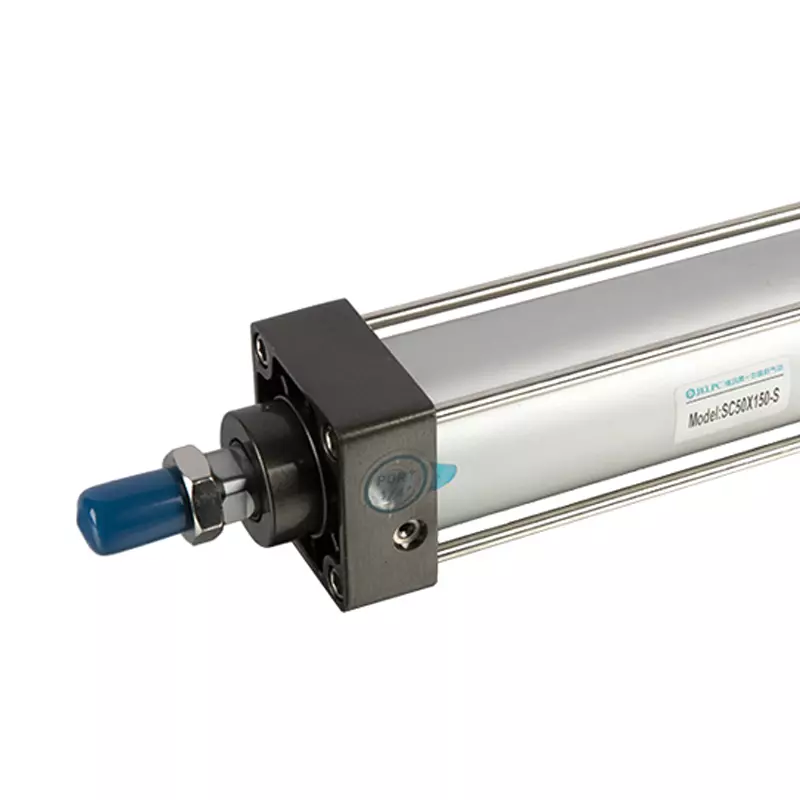

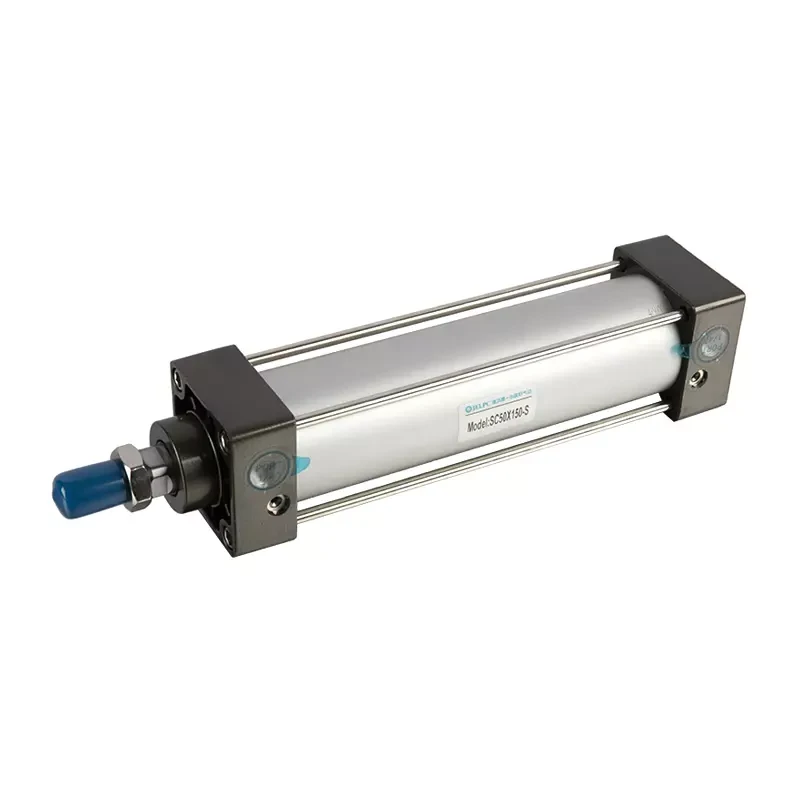

JELPC 450x250 mm Double Acting SC Non Magnetic Cylinder
Specifications
| Country of Origin | China |
|---|---|
| Brand | JELPC |
| Operating Temperature Range | -20 to 80 °C |
| Model | SC Non Magnetic Cylinder |
| Type of Product | SC Non Magnetic Cylinder |
| Cushion | Adjustable |
| Working Medium | Air |
| Bore Size | 250 mm |
| Operating pressure range | 1–9.0 Kgf/cm² |
| Product Condition | New |
| Stroke Size | 450 mm |
| Action Type | Double Acting |
| Proof Pressure | 13.5 Kgf/cm² |
| Operating Speed Range | 50–800 mm/s |
Key Features
JELPC SC Non Magnetic Cylinder Double Acting, 450 mm Stroke x 250 mm Bore, Adjustable Cushion, Air Operated.
- The cylinder provides double acting pneumatic operation for enhanced reliability.
- Features a 450 mm stroke and 250 mm bore size for robust industrial actuation.
- SC Non Magnetic design ensures safe operation in sensitive environments.
- Equipped with an adjustable cushion for controlled piston deceleration.
- Operates efficiently with compressed air as the working medium.
- Wide operating pressure range from 1 to 9.0 Kgf/cm² allows flexible installation.
- Suitable for temperature ranges from -20 to 80°C to handle demanding environments.
- Supports operating speeds from 50 to 800 mm/s for dynamic control.
- Proof pressure rated at 13.5 Kgf/cm² for high-pressure tolerance.
- Country of origin is China, ensuring international quality standards.
Product Description
JELPC Double Acting SC Non Magnetic Pneumatic Cylinder, with 450 mm stroke and 250 mm bore, is engineered for advanced industrial automation and air-driven mechanical actuation. Designed for sensitive applications requiring non-magnetic operation, the cylinder excels in precision, reliability, and safety.
This SC Non Magnetic Cylinder uses compressed air as its working medium, driving a double-acting piston for bidirectional movement. Equipped with an adjustable cushion, it ensures controlled piston deceleration and vibration reduction, optimizing operation in demanding environments such as packaging, construction, door opening mechanisms, and manufacturing cranes, presses, and lifts.
Industrial applications: Pneumatic actuation in manufacturing, conveyor systems, packaging, automation lines, HVAC dampers, door openers, and construction equipment. Browse more JELPC pneumatic cylinders and hydraulic machine solutions in the EnvMart catalog.
Frequently Asked Questions
The JELPC SC Non Magnetic Cylinder features a stroke size of 450 mm and a bore diameter of 250 mm, making it suitable for robust industrial applications.
This pneumatic cylinder operates efficiently within a temperature range of -20 to 80 °C, allowing it to handle various industrial environments.
Yes, the SC Non Magnetic design ensures safe operation in environments sensitive to magnetic fields, making it ideal for applications where magnetism could interfere.
The JELPC SC Non Magnetic Cylinder is equipped with an adjustable cushion, which allows for controlled piston deceleration and helps reduce noise during operation.
The cylinder supports an operating pressure range from 1 to 9.0 Kgf/cm², with a proof pressure rated at 13.5 Kgf/cm² for high-pressure tolerance.
The JELPC SC Non Magnetic Cylinder is a double acting cylinder, allowing for robust push-pull actuation in various industrial applications.
This cylinder supports operating speeds ranging from 50 to 800 mm/s, providing dynamic control for various applications.
The JELPC SC Non Magnetic Cylinder is manufactured in China, adhering to international quality standards.
This cylinder is suitable for a variety of applications including manufacturing, conveyor systems, packaging, automation lines, and construction equipment.
To inquire or purchase the JELPC SC Non Magnetic Cylinder, please visit our product page or contact our sales team for further assistance.
