STMicroelectronics 600 V 60 A Switching Rectifier Diode 2-Pin DO-247 STTH60L06W

STMicroelectronics STTH60L06W is a high-performance switching rectifier diode designed for demanding power electronics applications. Rated at 600 V peak reverse voltage and supporting a maximum continuous forward current of 60 A, this diode ensures robust conduction and reliable operation in industrial, automotive, and consumer electronic systems.

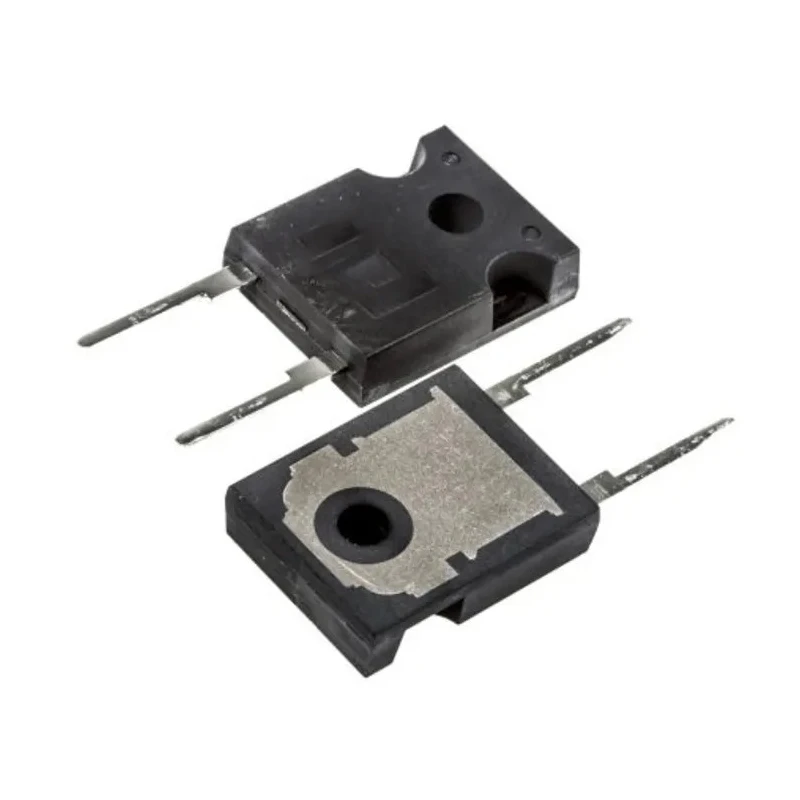

The device is packaged in a DO-247 through-hole format with 2 pins, offering a robust mechanical and electrical connection for easy mounting. Its low maximum forward voltage of 1.55 V results in minimized power dissipation and improved efficiency. The diode supports a peak non-repetitive surge current of 400 A, enabling capability to handle brief overloads.

Thermal performance is excellent, with an operating temperature range from -65°C to a maximum of 175°C, suitable for harsh environments. The peak reverse recovery time of 105 nanoseconds facilitates rapid switching operations, beneficial for switching power supplies, inverters, and motor drive circuits.

Dimensions of 15.75 mm length, 20.15 mm height, 5.15 mm width, and 3.55 mm diameter provide a compact footprint, making it adaptable for PCB designs where space conservation is critical.

This diode complies with RoHS standards, meeting environmental directives for semiconductor components. The STTH60L06W is a reliable and durable choice for power rectification tasks, especially in industrial automation, power management, and electronic manufacturing sectors.

Designed for high-current switching applications. Features a maximum forward voltage of 1.55 V for efficient conduction. Can withstand a peak non-repetitive forward surge current of 400 A. Operates reliably within a temperature range from -65°C to 175°C.

Compact dimensions with length 15.75 mm and height 20.15 mm enable versatile PCB layouts. Single diode configuration suitable for various power rectification circuits. RoHS compliant and environmentally friendly manufacturing standards.

Peak reverse recovery time of 105 ns enhances switching performance.

Ideal for use in industrial, laboratory, automotive, power conversion, and manufacturing applications where robust diode switching performance is required. Explore more semiconductor components and rectifier diodes from STMicroelectronics on EnvMart for your electronic system integrations.
