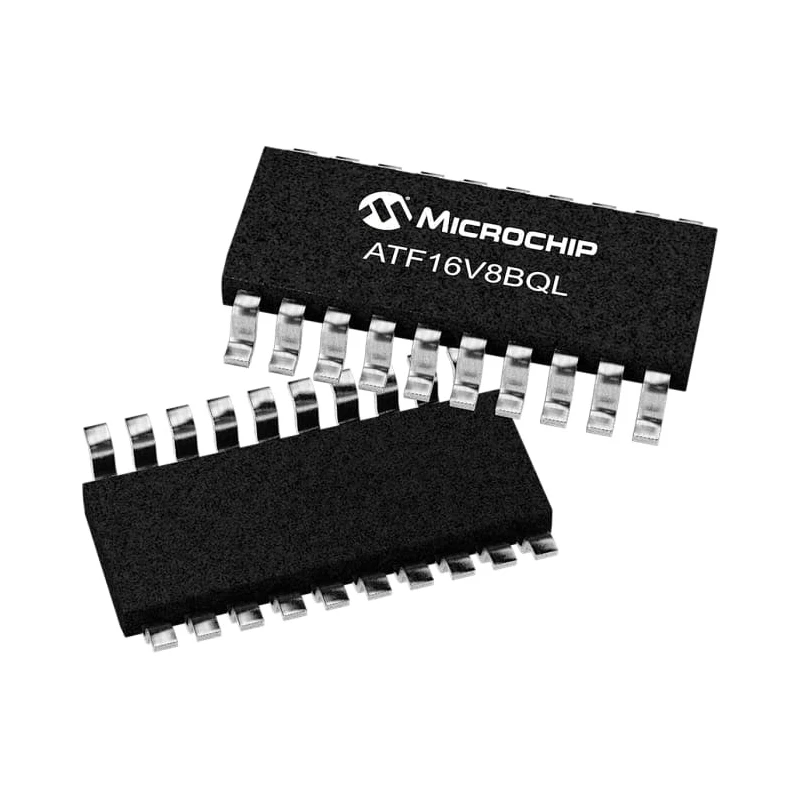

Microchip Electrically Erasable Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz ATF16V8BQL-15XU

Microchip ATF16V8BQL-15XU is an electrically erasable programmable logic device designed for advanced electronic applications requiring reliable and low power programmable logic solutions. Featuring 150 gates and 8 macro cells, this SPLD supports flexible logic design with 8 user I/O pins, operating at a maximum internal frequency of 62 MHz.

The device supports in-system programmability and re-programmability, enabling seamless updates to logic configurations during development and deployment phases. Packaged in a surface mount TSSOP with 20 pins, the ATF16V8BQL-15XU offers ease of integration on compact printed circuit boards.

The supply voltage range from 4.5 V minimum to 5 V maximum supports low power consumption, while the device maintains robust operation within a wide temperature range of -40°C to 85°C, suitable for industrial and commercial electronics environments.

With a maximum propagation delay time of 15 ns, this programmable logic IC delivers swift signal response crucial for timing-sensitive applications. Physical dimensions including a length of 6.6 mm and height of 1.05 mm provide space-saving benefits without compromising functionality.

Originating from the Philippines, it is tailored for electronics industry professionals requiring dependable SPLD solutions. Operates at a maximum internal frequency of 62 MHz for reliable performance. Supports in-system programmability and re-programmability for flexible design changes.

Surface mount type with a TSSOP package and 20 pins for compact PCB integration. Minimum supply voltage of 4.5 V and maximum supply voltage of 5 V for standard low power operation. Operating temperature range from -40°C to 85°C suitable for diverse environments.

Maximum propagation delay time is 15 ns ensuring fast switching. Dimensions include a length of 6.6 mm and height of 1.05 mm for space-efficient applications. Conforms to Pb/Halide-free, RoHS, and PCI standards for environmental compliance.

This programmable logic device is well-suited for a variety of electronics applications including industrial automation, consumer electronics, and embedded systems development. Explore more products in the Programmable Logic ICs category on EnvMart.
