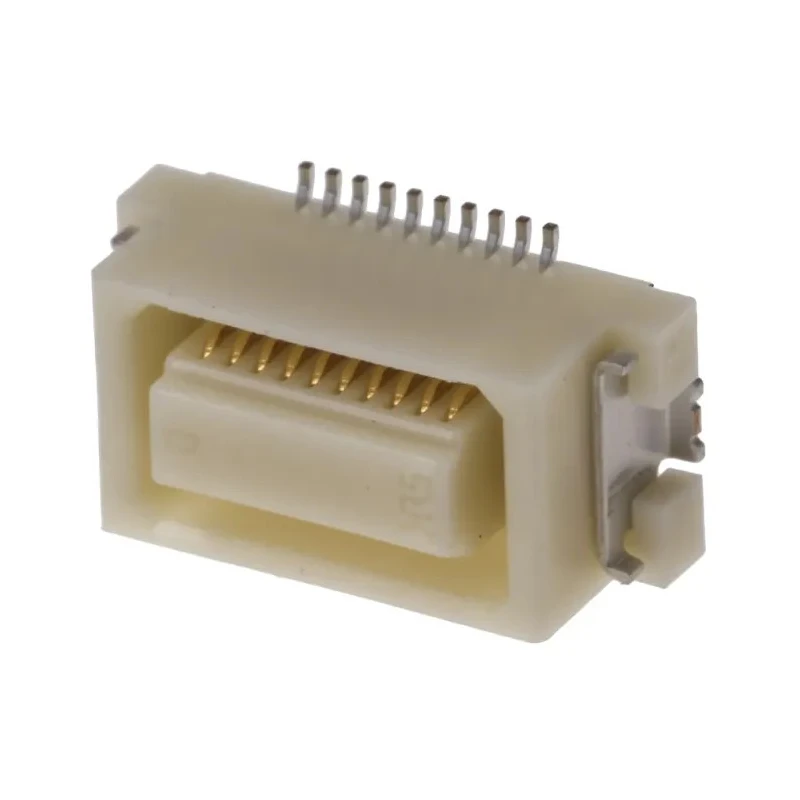

Hirose DF17 Series Straight Surface PCB Socket 20-Contact 2 Row 0.5 mm Pitch Solder
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF17 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF17 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 4mm |
| Row Pitch | 3.9mm |
Key Features
- Compact 0.5 mm pitch design suitable for high-density PCB applications.
- 20 female contacts in a dual-row layout ensure reliable board-to-board connection.
- Surface mount type with straight orientation for easy PCB assembly.
- Polyamide housing offers durability and mechanical protection.
- Gold-plated copper contacts deliver excellent electrical conductivity and corrosion resistance.
- Shock-proof structure prevents connector damage from drops or impacts.
- Mounting bosses enhance stability and secure PCB retention.
- Operating voltage rated at 50 V with current up to 300 mA.
Product Description
Hirose DF17 Series Straight Surface PCB Socket model DF17(4.0)-20DS-0.5V(57) is a board-to-board connector featuring 20 contacts arranged in 2 rows with a fine 0.5 mm pitch designed for surface mount assembly. It incorporates a robust polyamide housing with a scoop-proof box style to protect contacts and mating connections effectively.
The gold-plated copper female contacts ensure excellent electrical performance and durability. This connector is designed with a shock-proof structure to withstand mechanical stress caused by impact or dropping, making it ideal for portable electronic devices including mobile phones and LCD equipment.
It supports a stacking height of 4 mm, with mounting bosses on the base that provide added mechanical stability on the PCB. The connector operates safely at voltages up to 50 V and current capacity up to 300 mA. The operational temperature range from -35°C to 85°C ensures reliability in diverse environmental conditions.
This series facilitates compact, high-density board-to-board connections with a standard row pitch of 3.9 mm. Its solder-type termination supports secure mounting to printed circuit boards.
Compact 0.5 mm pitch design for high-density PCB layouts. Shock-proof construction prevents damage from impacts. Scoop-proof housing design protects contacts and mating surfaces. Metal fittings ensure mechanical strength and PCB retention.
Mounting bosses provide extra stability on PCB. Gold-plated copper contacts for superior conductivity. Operates reliably between -35°C and 85°C. Supports up to 50 V and 300 mA current rating. Ideal for mobile, telecom, and portable electronic applications.
Japanese manufacture assuring quality and performance.
This Hirose DF17 connector series offers engineers a reliable solution for miniaturized electronics requiring robust, high-performance board-to-board connections. Its wide application range spans industrial, telecommunications, consumer electronics, and other sectors requiring dependable interconnects.
Explore more high-quality connectors and components in the Electronics Components section at EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Hirose DF17 Series Straight Surface PCB Socket is 0.5 mm.
This model features 20 female contacts arranged in 2 rows.
The maximum operating voltage for this connector is 50 V.
The current rating for this PCB socket is up to 300 mA.
The housing is made of polyamide, and the contacts are made of gold-plated copper.
The operational temperature range for this connector is from -35°C to 85°C.
This connector uses a surface mount type termination for secure mounting to printed circuit boards.
The stacking height of this socket is 4 mm.
This model utilizes a board-to-board connector system.
The connector includes mounting bosses that provide added mechanical stability and secure PCB retention.
This PCB socket is suitable for high-density PCB applications, including mobile, telecom, and portable electronic devices.
The Hirose DF17 Series PCB socket is manufactured in Japan.
