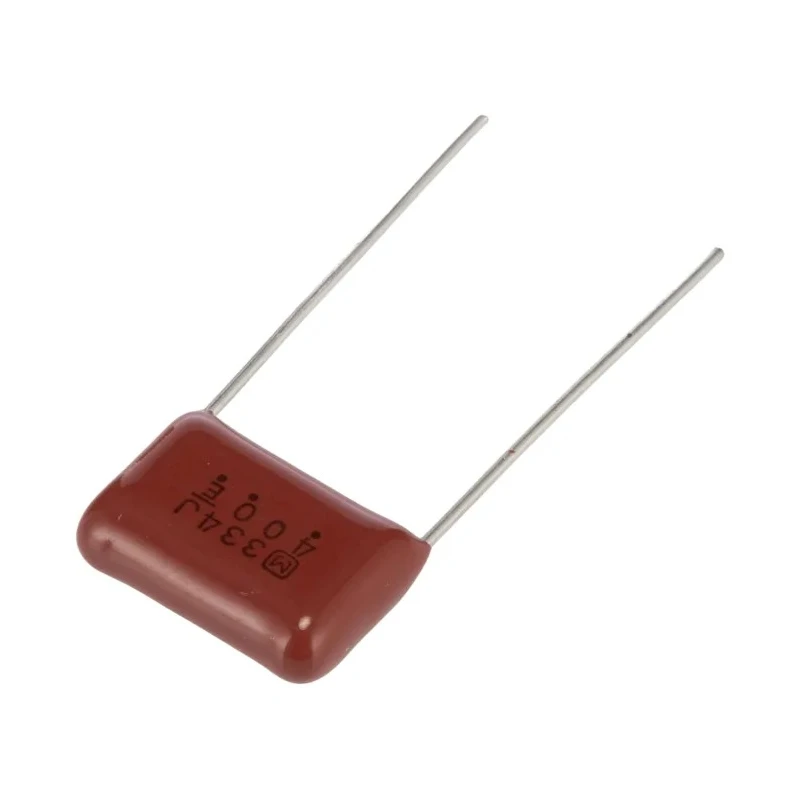

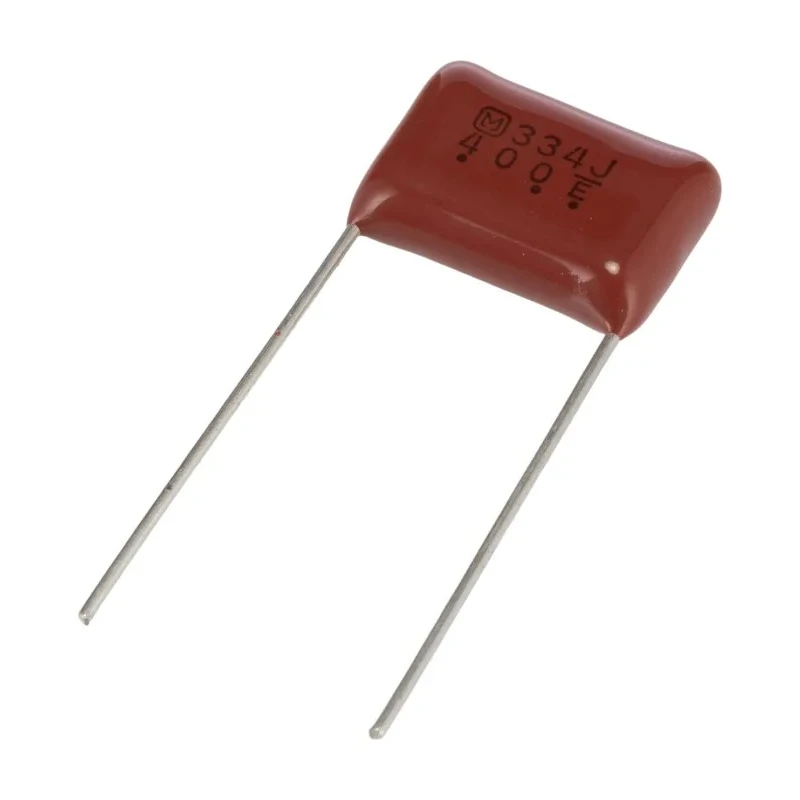

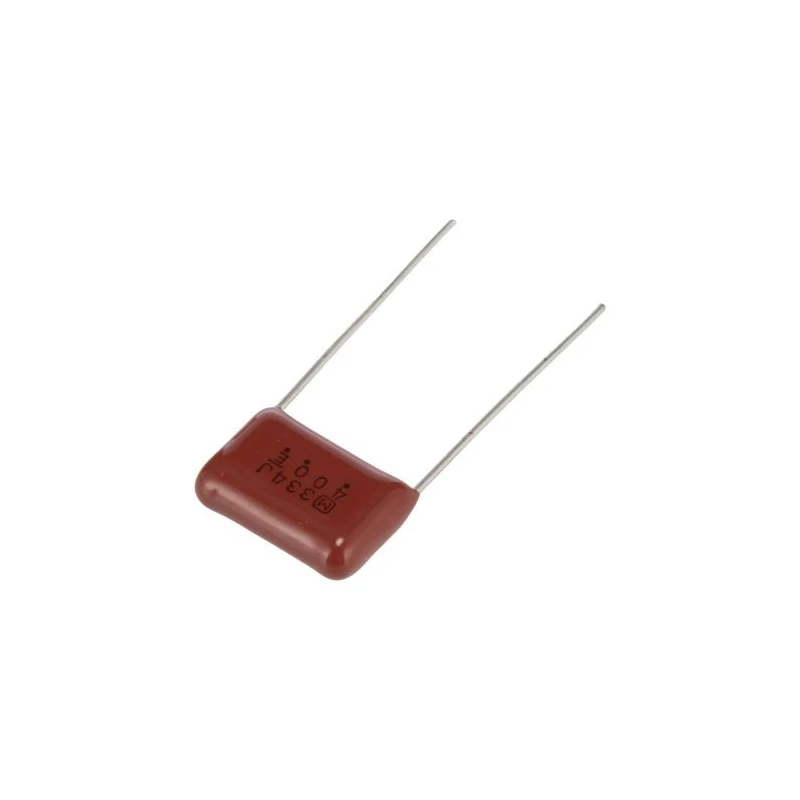

Panasonic ECQE(F) Film Capacitor 330nF 400V AC/DC Through Hole 2-Pin Polyester Dielectric ECQE4334JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 14.9mm |
| Length | 18.5mm |
| Model | ECQE4334JF |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 330nF |
| Pin Count | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with metallised polyester film for low dissipation and energy efficiency.
- Capacitance of 330 nanofarads with ±5% tolerance ensures stable circuit performance.
- Rated for 400 volts AC and DC operation with maximum temperature of 105°C.
- Features self-healing property to extend operational life in demanding conditions.
- Through-hole mounting type with 15 mm lead pitch and 2 pins for secure PCB fitment.
- Flame retardant epoxy coating enhances safety and durability in electronic assemblies.
- Compliant with automotive standard AEC-Q200 and international safety approvals including UL and CSA.
Product Description
Panasonic ECQE4334JF Film Capacitor is a robust through-hole polyester dielectric capacitor designed for demanding electronic applications with a capacitance of 330nF and a rated voltage of 400V AC and DC. It provides outstanding electrical characteristics and reliability suitable for circuits requiring stable performance.
Equipped with self-healing properties, this capacitor can recover from minor dielectric failures, significantly enhancing its lifespan under harsh operating conditions. The ±5% capacitance tolerance ensures circuit stability and consistent functionality throughout its usage.
Dimensions of 7mm width, 14.9mm height, and 18.5mm length, combined with a 15mm lead pitch and 0.8mm lead diameter, allow this component to integrate efficiently on PCB assemblies with through-hole mounting. Its flame retardant epoxy resin coating offers excellent safety and durability against thermal and mechanical stress.
This capacitor meets the stringent automotive standard AEC-Q200 and is approved under UL 60384-14, CSA E60384-14, and EN 60384-14 standards, ensuring high quality and compliance for automotive and industrial electronic systems.
Typical uses include general-purpose electronic circuits, power supply filters, automation control systems, igniters, and circuit protection devices, making it a versatile component in industrial and commercial electronics manufacturing.
Constructed from metallised polyester film for low loss and energy efficiency. Capacitance value of 330nF with a tolerance of ±5% for reliable circuit performance. High rated voltage at 400V AC and DC for durability in high-voltage applications.
Self-healing design enhances operational life and reliability. Through-hole mounting with 15mm lead pitch provides stable PCB integration. Compact size dimensions: 7mm width, 14.9mm height, and 18.5mm length. Flame retardant epoxy coating offers safety and mechanical protection.
Meets automotive and international electrical standards for assured quality. Browse Panasonic components and Film Capacitors in EnvMart for high-performance electronic parts suitable for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 330 nanofarads (nF) with a tolerance of ±5%.
It is rated for 400 volts AC and 400 volts DC operation.
The dimensions of this capacitor are 7mm in width, 14.9mm in height, and 18.5mm in length.
This model features a through-hole mounting type with a lead pitch of 15mm.
The maximum operating temperature for this capacitor is 105°C.
It complies with the automotive standard AEC-Q200 and has international safety approvals including UL and CSA.
The lead diameter is 0.8mm.
It is constructed with metallised polyester film, which contributes to low dissipation and energy efficiency.
It features self-healing properties that allow it to recover from minor dielectric failures, extending its operational life.
Typical applications include general-purpose electronic circuits, power supply filters, automation control systems, igniters, and circuit protection devices.
This model has 2 pins for secure PCB fitment.
This capacitor belongs to the ECQE(F) series.
