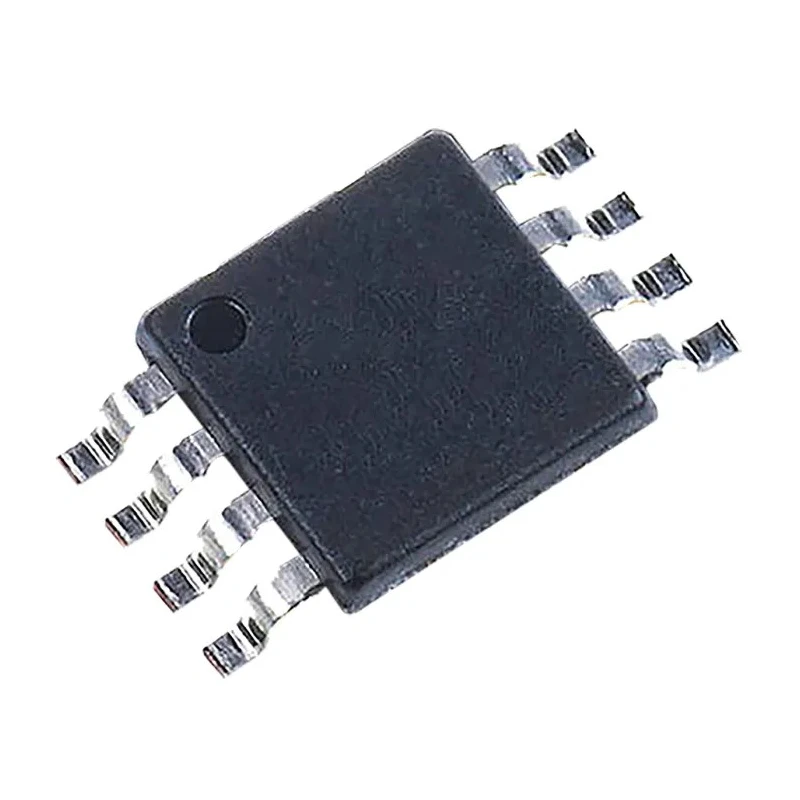

onsemi Operational Amplifier 350 kHz, 8-Pin MSOP Package, 1.8V Min Supply Voltage NCS2325DMR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | NCS2325DMR2G |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | NCS2325 |
| Output Current | 35μA |
| Maximum Operating Temperature | 150°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 0.3V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 50 pA |
| Slew Rate | 0.16V/μs |
| Input Offset Current | 100 pA |
Key Features
- Dual channel operational amplifier in an 8-pin MSOP surface mount package.
- Gain bandwidth product of 350 kHz enables high-speed amplification.
- Low input offset voltage of 50 μV ensures precision signal processing.
- Quiescent current maximum of 35 μA supports low power applications.
- Wide operating temperature range from -40°C to 150°C for industrial robustness.
- Rail-to-rail input and output operation facilitates full signal swing.
- Automotive standard AEC-Q100 certified for automotive system use.
- Low input bias current of 50 pA reduces input errors in sensitive circuits.
Product Description
onsemi NCS2325DMR2G is a dual-channel operational amplifier designed for high precision and low power consumption electronic applications. Featuring a gain bandwidth product (GBP) of 350 kHz, this 8-pin MSOP package device is suitable for a wide range of industrial, automotive, and laboratory uses.
The amplifier operates between a minimum supply voltage of 1.8V and a maximum of 0.3V offset voltage, with a low quiescent current of 35 μA maximizing energy efficiency in portable and embedded systems. The device supports rail-to-rail input and output, enabling the handling of signals close to the supply rails without distortion.
Designed to meet stringent automotive standards including AEC-Q100 certification, this operational amplifier withstands harsh environments with an operating temperature range from -40°C to 150°C. The input bias current is exceptionally low at 50 pA, and the input offset voltage is a minimal 50 μV, ensuring accurate and stable amplification of small sensor outputs and signals.
Its compact 3.1 mm by 3.1 mm footprint and 0.95 mm height MSOP surface mount package facilitates space-saving PCB designs in advanced electronics manufacturing.
This product is well-suited for applications in automotive systems, industrial instrumentation, telecommunications, and general-purpose analog signal amplification within electronic components manufacturing and repair sectors.
Dual channel operational amplifier in 8-pin MSOP. 350 kHz gain bandwidth suitable for high-speed signals. Low offset voltage and bias current for precision. AEC-Q100 automotive certification for reliability. Wide temperature operation expands usability in harsh environments.
Compact surface mount package optimizes PCB space. Low power consumption maximizes battery life in portable devices. Rail-to-rail input and output compatible with low voltage designs. Ideal for industrial, automotive, and communication circuits.
Explore more semiconductor solutions and Operational Amplifiers in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 350 kHz, enabling high-speed amplification.
The minimum supply voltage required for the NCS2325DMR2G is 1.8V.
It operates within a temperature range of -40°C to 150°C, suitable for industrial applications.
The input offset voltage is 50 μV, which ensures precision in signal processing.
This operational amplifier features two channels.
The NCS2325DMR2G comes in an 8-pin MSOP surface mount package.
The maximum quiescent current is 35 μA, making it suitable for low power applications.
The input bias current is 50 pA, which helps reduce input errors in sensitive circuits.
Yes, it is certified to the AEC-Q100 automotive standard, ensuring reliability in automotive systems.
The dimensions are 3.1 mm in length and width, with a height of 0.95 mm.
The slew rate of the NCS2325DMR2G is 0.16 V/μs, indicating how quickly the output can respond to changes in input.
The NCS2325DMR2G complies with RoHS standards, ensuring environmental safety in its materials.
