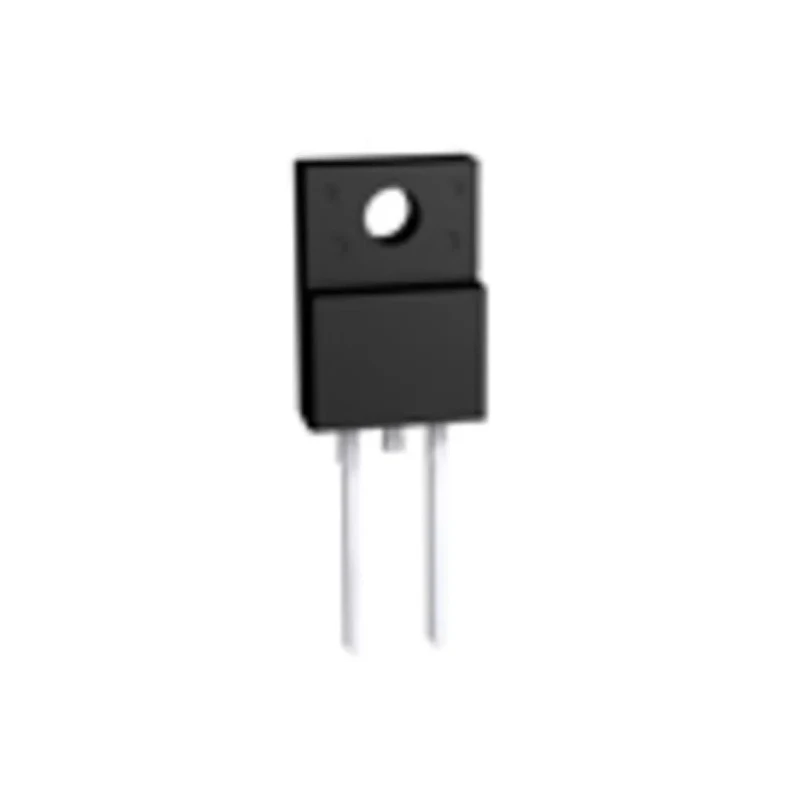

ROHM 800 V 5 A Fast Recovery Diode 3-Pin TO-220 RFN5TF8SC9
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | ROHM |
| Height | 15mm |
| Length | 10mm |
| Model | RFN5TF8SC9 |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 2.1V |
| Peak Reverse Recovery Time trr | 40ns |
Key Features
- High efficiency fast recovery diode for switching power supplies.
- Through hole mount type with a compact TO-220 housing.
- Maximum forward voltage of 2.1 V ensures low conduction losses.
- Peak reverse recovery time of 40 nanoseconds supports high-speed switching.
- Maximum operating temperature up to 150°C for reliable performance.
- Peak non-repetitive forward surge current of 60 A.
- Single diode configuration with 3 pins simplifies circuit design.
- Manufactured in Korea with high quality standards.
Product Description
ROHM RFN5TF8SC9 is a high-performance fast recovery diode designed for efficient switching power supply applications. Featuring a 3-pin TO-220 through-hole package, it supports a maximum continuous forward current of 5 amperes and withstands a peak reverse repetitive voltage of 800 volts.
This single diode configuration offers low forward voltage drop of 2.1 volts to lower conduction power loss, enhancing overall circuit efficiency. Its ultra-fast recovery time of 40 nanoseconds enables rapid switching, minimizing switching losses in high-frequency applications.
The TO-220 package provides excellent thermal management with a maximum operating temperature of 150°C, ensuring reliability under demanding industrial conditions. The diode handles peak non-repetitive forward surge currents up to 60 amperes, offering robustness for transient loads and protection.
With a compact footprint measuring 15 mm height, 10 mm length, and 4.5 mm width, the RFN5TF8SC9 diode easily integrates into power electronics, industrial automation, and consumer electronics. The through-hole mounting style simplifies assembly on printed circuit boards.
High efficiency fast recovery diode suitable for switching power supplies. TO-220 package offers effective heat dissipation and ease of mounting. 5 A continuous forward current rating with low forward voltage drop. Fast recovery time of 40 nanoseconds for reduced switching losses.
Operates reliably up to 150°C maximum temperature. Supports surge currents up to 60 A for transient robustness. Single diode with 3-pin configuration for straightforward installation. Manufactured in Korea, ensuring quality and consistency.
This diode is ideal for industrial, commercial, and electronic equipment applications requiring efficient rectification with low loss and high frequency switching capabilities. It supports designs in power supply units, motor drives, and automotive electronics.
Explore more semiconductor components and power electronics devices at EnvMart for your industrial manufacturing and automation needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 amperes.
It has a maximum forward voltage drop of 2.1 volts, which helps to minimize conduction losses.
The maximum operating temperature is up to 150°C, ensuring reliable performance in demanding conditions.
It comes in a TO-220 package type, which allows for effective heat dissipation and ease of mounting.
This model features a single diode configuration with 3 pins, simplifying circuit design.
The diode supports a peak non-repetitive forward surge current of up to 60 amperes.
The dimensions are 15 mm in height, 10 mm in length, and 4.5 mm in width.
It uses a through-hole mounting style, which simplifies assembly on printed circuit boards.
It is suitable for applications in power supply units, motor drives, and automotive electronics requiring efficient rectification and high-frequency switching capabilities.
This diode is manufactured in Korea, adhering to high quality standards.
