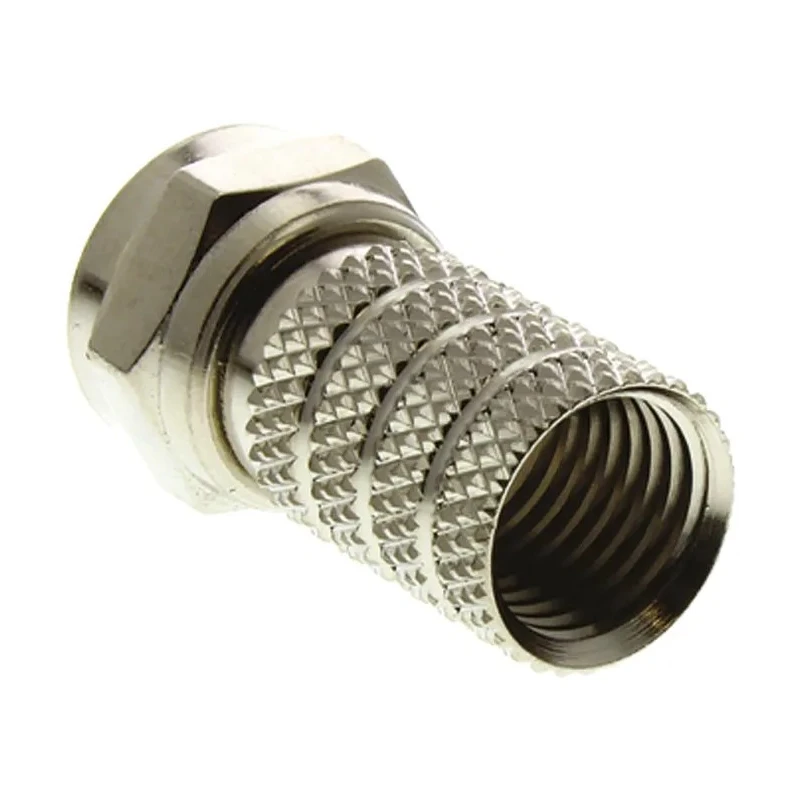

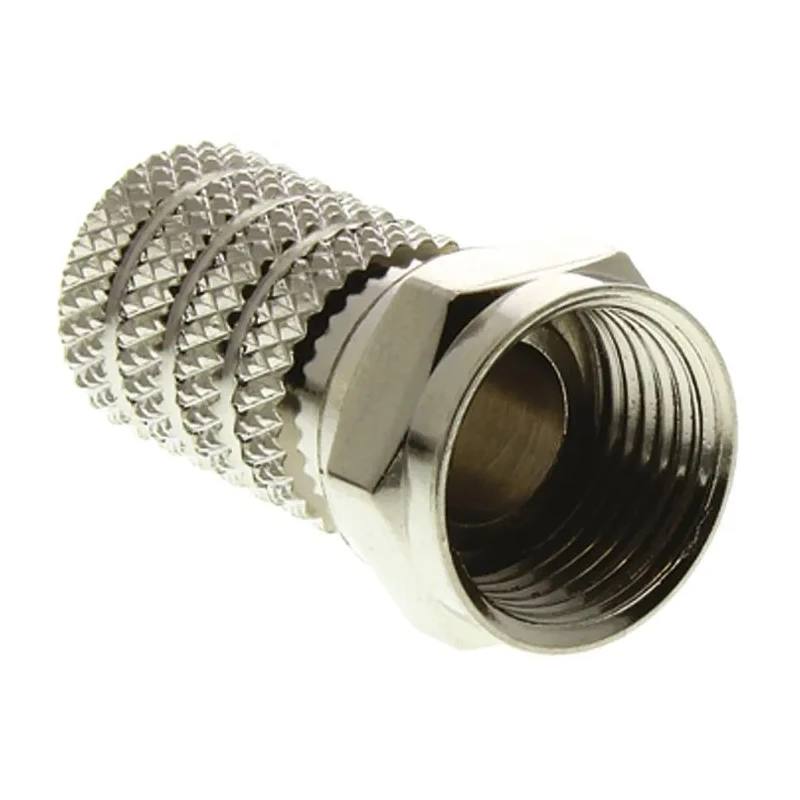

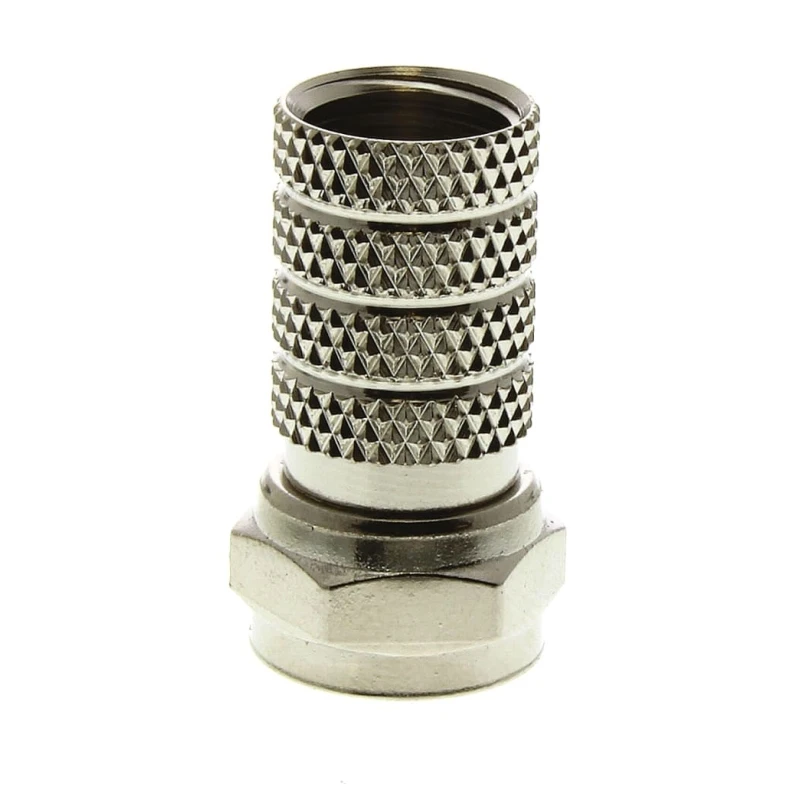

TE Connectivity F Series Coaxial Connector Cable Male F Connector, 75 Ω, Straight Body, Twist On Termination 5-1814822-7
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Cable |
| Operating Frequency | 2GHz |
| Contact Material | Brass |
| Series | F |
| Termination Type | Twist On |
| Maximum Operating Temperature | 85°C |
| Cable Type | CT125 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Tin |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | F Connector |
| Body Plating | Nickel |
Key Features
- Standard size coaxial connector with nickel plated body for durability.
- Supports operating frequency up to 2 GHz for reliable signal transmission.
- Suitable for use with CT125 coaxial cable and other compatible RF cables.
- Wide operating temperature range from -65°C to 85°C ensures stable performance.
- Brass contact with tin plating provides excellent conductivity and corrosion resistance.
- Twist on termination type simplifies cable installation and maintenance.
- Compatible with TV/Satellite connectors featuring 3/8-32 UNEF 2B internal thread.
Product Description
TE Connectivity 5-1814822-7 F Series Coaxial Connector is a high-quality cable mount F connector with a male gender and 75 Ω impedance. It features a straight body design with nickel plating, offering durability and corrosion resistance suitable for demanding electronic applications.
This connector supports operating frequencies up to 2 GHz, making it ideal for RF coaxial cable connections, including CT125 coaxial cable as per the stock number 616-3321 specification. With a wide operating temperature range from -65°C to 85°C, the connector ensures reliable performance under harsh environmental conditions.
The brass contact material with tin plating enhances electrical conductivity and longevity. The twist on termination type facilitates easy and secure cable attachment.
The F series connector interface complies with standard TV/Satellite connector requirements, featuring a 3/8-32 UNEF 2B internal thread and a 7/16 A/F hex coupling nut, which guarantees compatibility and interchangeability with similar connectors.
This product is an essential component in electronic, communication, and broadcast systems, providing efficient signal integrity and connection reliability in industrial, commercial, and residential settings.
Standard size Coaxial Connector with nickel plated body for durability. Supports operating frequency up to 2 GHz for reliable signal transmission. Suitable for use with CT125 coaxial cable and other compatible RF cables.
Wide operating temperature range from -65°C to 85°C ensures stable performance. Brass contact with tin plating provides excellent conductivity and corrosion resistance. Twist on termination type simplifies cable installation and maintenance.
Compatible with TV/Satellite connectors featuring 3/8-32 UNEF 2B internal thread. Browse the extensive range of connectors and electronic components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 2 GHz, ensuring reliable signal transmission for RF applications.
This model has an impedance of 75 Ω, making it suitable for standard RF applications.
It is suitable for use with CT125 coaxial cable and other compatible RF cables.
The operating temperature range for this connector is from -65°C to 85°C, allowing for stable performance in various environments.
The contact material is brass, which is plated with tin to enhance conductivity and corrosion resistance.
The twist on termination type simplifies cable installation and maintenance, providing an easy and secure attachment.
The body of this connector is nickel plated, which contributes to its durability and corrosion resistance.
This model features a male gender, making it compatible with female connectors in standard applications.
The orientation of this connector is straight, designed for straightforward cable connections.
It features a 3/8-32 UNEF 2B internal thread, ensuring compatibility with standard TV/Satellite connectors.
The country of origin for this connector is India.
This connector belongs to the F Series, which is designed for high-quality RF applications.
