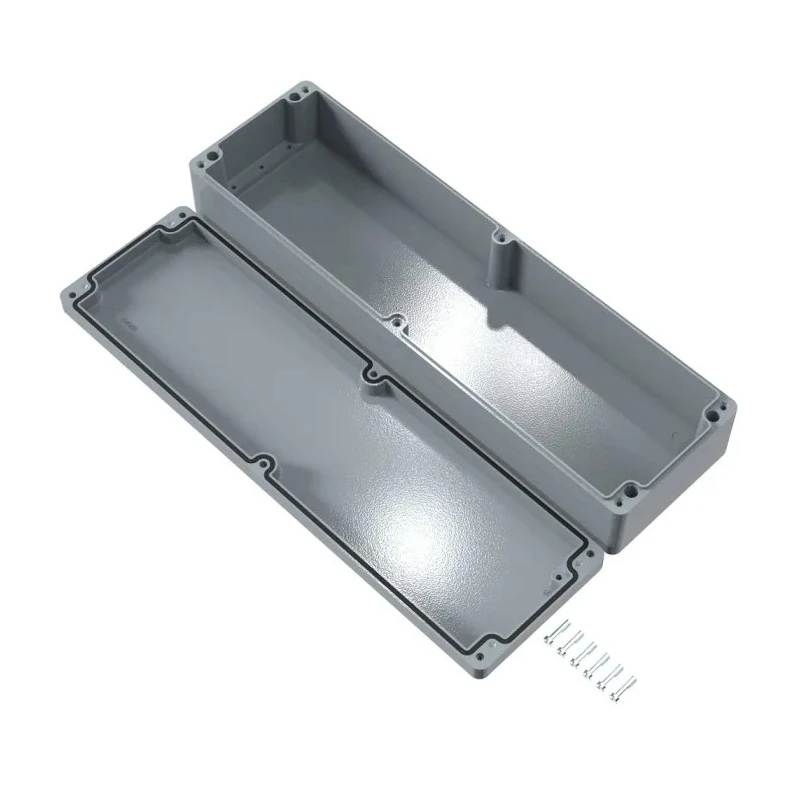

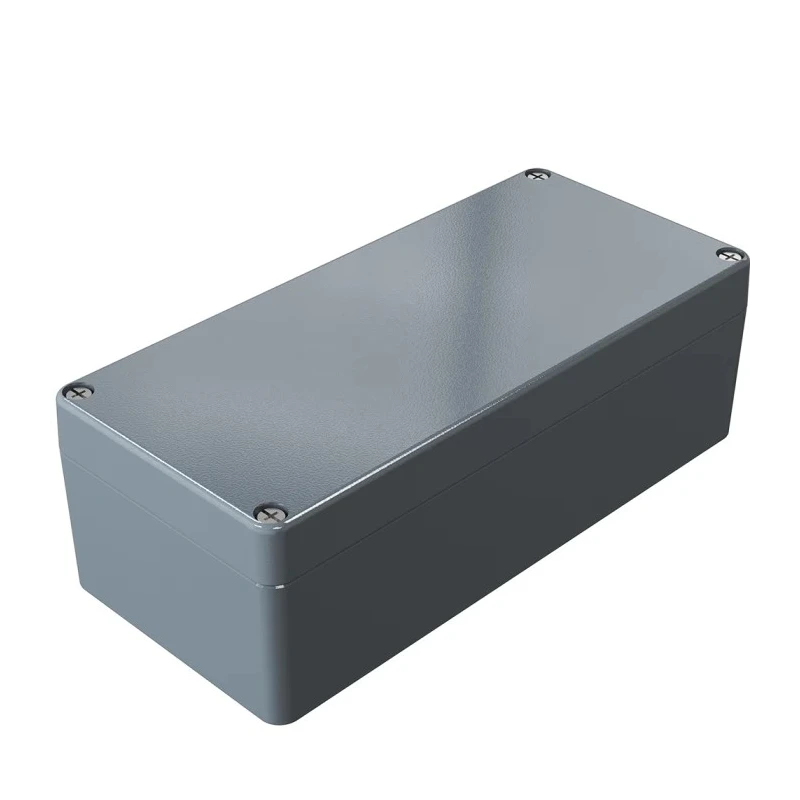

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure IP66 IK09 560 mm x 560 mm x 160 mm 01165609
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | 01165609 |
| IP Rating | IP66 |
| Gross Weight | 3.7kg |
| Series | Aluminium Standard |
| External Width | 160mm |
| External Height | 560mm |
| Shielding | Unshielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | UL508 |
| External Length | 560mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
Key Features
- Constructed from durable die cast aluminium for strength and corrosion resistance.
- Features a polyurethane gasket for effective sealing against dust and water.
- Rated IP66 for dust-tight and protection against high-pressure water jets.
- IK09 rating ensures impact resistance for demanding industrial environments.
- Designed with captive screws to securely close the lid and prevent tampering.
- Supports both mounting plate and DIN rail installation for versatile mounting options.
- Suitable for housing smaller electronic devices such as push buttons and relays.
- Complies with UL508 safety standards for industrial control equipment.
Product Description
Rose 01165609 Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure offers a robust and corrosion-resistant solution to protect electronic equipment in harsh industrial environments. Manufactured from die cast aluminium, this enclosure features a polyurethane gasket ensuring excellent sealing performance, rated to IP66 standards for superior ingress protection against dust and powerful water jets. The IK09 impact rating provides reliable defense against mechanical shocks.
With external dimensions of 560 mm width, 560 mm length, and 160 mm height, it provides ample interior space without excessive protrusion, suitable for housing smaller components such as push buttons, relays, and switching elements.
The enclosure is equipped with captive screws for secure lid fastening, enhancing tamper resistance. It supports flexible installation methods including mounting plates and DIN rails, accommodating different setup requirements.
Rose enclosures meet UL508 industrial control equipment safety standards, providing confidence for industrial use in sectors like the food and beverage industry, traffic management systems, and other manufacturing environments.
The grey RAL7001 coloured exterior ensures a professional look suitable for diverse applications. Designed to withstand temperatures ranging from -40°C to +90°C, this enclosure excels in both hot and cold conditions.
Constructed from robust die cast aluminium for high durability. Polyurethane gasket seals against dust and water effectively. Compliant with IP66 and IK09 ratings for protection and impact resistance. UL508 certification ensures adherence to industrial safety standards.
Includes captive screws for secure and tamper-resistant enclosure closing. Supports mounting plate and DIN rail installations for versatility. Ideal for protecting electronic components like push buttons and relays. Operates reliably from -40°C to +90°C temperature range.
Grey RAL7001 finish suitable for industrial environments. Weight of approximately 3.7 kg for stable mounting. Explore a wide selection of high-quality Electrical Enclosures and accessories at EnvMart, designed for industrial, commercial, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this enclosure are 560 mm in width, 560 mm in length, and 160 mm in height.
This model has an IK09 impact rating, providing reliable defense against mechanical shocks in demanding environments.
It is constructed from die cast aluminium, which offers strength and corrosion resistance.
The enclosure is rated IP66, ensuring it is dust-tight and protected against high-pressure water jets.
It can operate reliably within a temperature range of -40°C to +90°C.
Yes, it complies with UL508 safety standards for industrial control equipment.
The lid is secured using captive screws, which enhance tamper resistance.
It supports both mounting plate and DIN rail installations, allowing for versatile mounting options.
The gross weight of this enclosure is approximately 3.7 kg.
It features a polyurethane gasket that provides effective sealing against dust and water.
It is suitable for housing smaller electronic devices such as push buttons and relays in industrial environments.
The country of origin for this enclosure is Germany.
