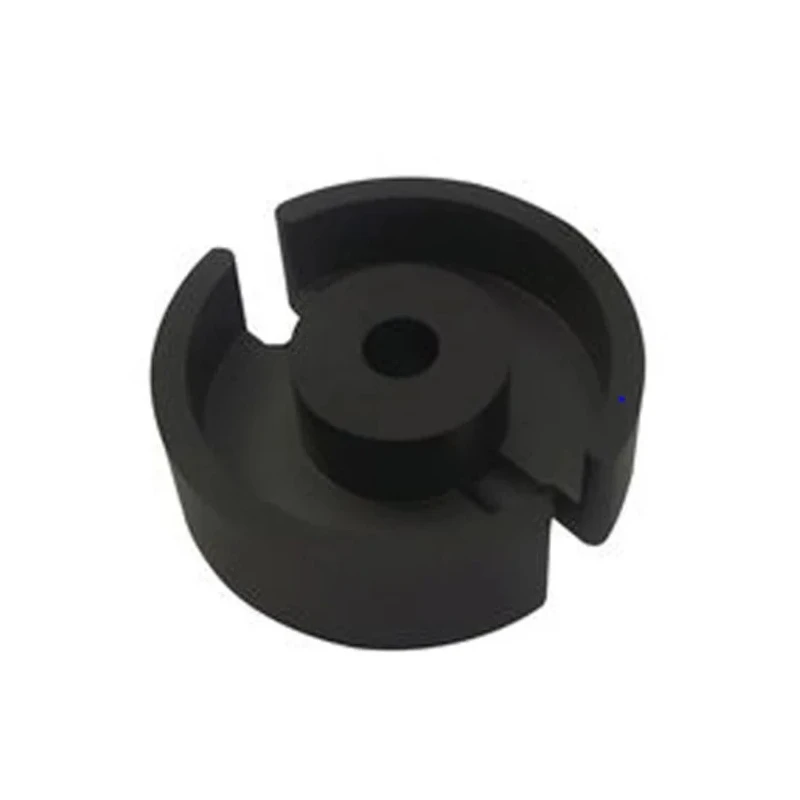

TDK Transformer Ferrite Core N87 Material P 26/16 Core Size 26x16.3x16.3 mm, AL Rating 5500 nH Model B65671W0000R087
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | N87 |
| Length | 16.3mm |
| Model | B65671W0000R087 |
| Depth | 16.3mm |
| Width | 26mm |
| Series | B65671 |
| Maximum Operating Temperature | 155°C |
| For Use With | Power TransFormers |
| Standards/Approvals | IEC 60133 |
| Core Size | P 26/16 |
| AL Rating | 5500nH |
| Core Type | Ferrite |
Key Features
- The core size is precisely 26 mm width by 16.3 mm length and depth.
- Constructed from high-quality N87 ferrite material for strong magnetic properties.
- Suitable for use in power transformers with low magnetic leakage.
- Maximum operating temperature reaches up to 155°C for reliability under thermal stress.
- Certified to IEC 60133 standards ensuring quality and compliance.
- This ferrite core provides flexibility for inductor requirements over 100 MHz range.
- Manufactured in the Czech Republic, ensuring stringent quality controls.
Product Description
TDK B65671W0000R087 Transformer Ferrite Core P 26/16 features a robust design utilizing N87 ferrite material with an AL rating of 5500 nH. The core dimensions are 26 mm width by 16.3 mm length and depth, making it ideal for precision winding and transformer construction in industrial and electronic applications.
Ferrite cores of this series are primarily designed for use with power transformers, offering low magnetic leakage due to the P core configuration. The material properties allow for stable inductance over frequencies exceeding 100 MHz, facilitating high-performance transformers in diverse applications.
The product complies with IEC 60133 standards, emphasizing its adherence to internationally recognized electrical and safety requirements. It can withstand a maximum operating temperature of 155°C, enhancing durability and operational reliability in demanding conditions.
Manufactured in the Czech Republic, this transformer core embodies quality assurance and material excellence, tailored for applications in industrial, electrical, electronic component manufacturing, laboratory, and power supply assembly.
The core size is exactly 26 mm × 16.3 mm × 16.3 mm, providing precise dimensional control. Constructed with high-grade N87 ferrite for superior magnetic characteristics. AL rating of 5500 nH ensures consistent inductance for transformer design.
Compliance with IEC 60133 standards confirms product suitability for industrial use. High maximum operating temperature rating of 155°C sustains performance under heat stress. The ferrite core is engineered for applications requiring low magnetic leakage and high frequency support.
Produced in the Czech Republic, reflecting strict quality supervision.
Choose this TDK ferrite core for reliable, efficient transformer manufacturing and electronic component integration. Explore more transformer accessories and cores in the Electronics & Electricals category at EnvMart.
Explore more products in our Transformer Cores category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The core dimensions are 26 mm in width, 16.3 mm in length, and 16.3 mm in depth.
The AL rating of this transformer ferrite core is 5500 nH.
It is constructed from high-quality N87 ferrite material, which provides strong magnetic properties.
The maximum operating temperature for this model is 155°C.
This product is certified to IEC 60133 standards, ensuring quality and compliance with electrical safety requirements.
It is suitable for use in power transformers, offering low magnetic leakage due to its P core configuration.
The ferrite core is engineered for applications requiring stable inductance over frequencies exceeding 100 MHz.
This transformer core is manufactured in the Czech Republic, ensuring stringent quality controls.
The core type of this product is ferrite, specifically designed for transformer applications.
This model is tailored for applications in industrial, electrical, electronic component manufacturing, laboratory, and power supply assembly.
N87 material provides superior magnetic characteristics, making it suitable for high-performance transformer designs.
The P core configuration allows for low magnetic leakage, which is advantageous in transformer design for efficiency and performance.
