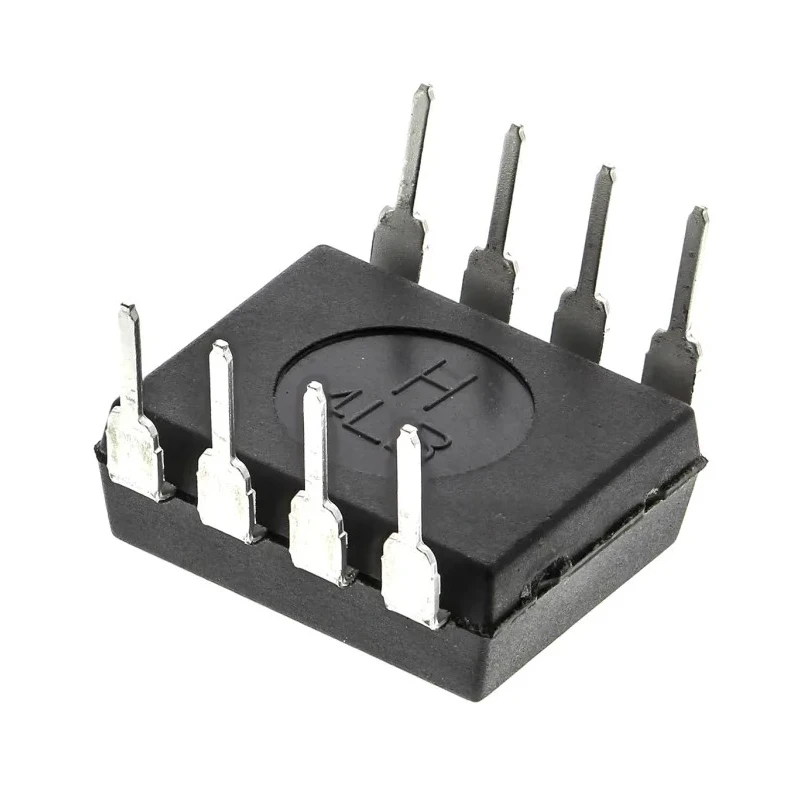

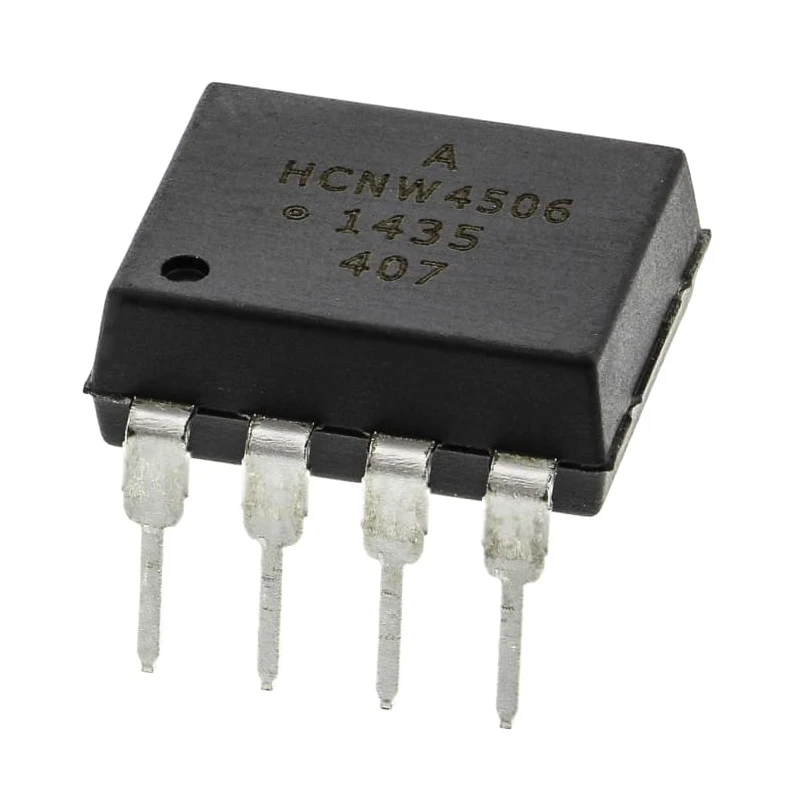

Broadcom DC Input Optocoupler Through Hole 8-Pin PDIP HCNW4506-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCNW4506-000E |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | HCNW |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, CSA, UL, RoHS |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 5ns |
| Maximum Current Transfer Ratio | 90% |
| Minimum Current Transfer Ratio | 44% |
| Broadcom, HCNW4506-500E Optocoupler, Through Hole, 8-Pin DIPBrand | Broadcom |
| ER - Opto Coupler, HCNW-4506Brand | Avago Technologies |
Key Features
- Offers a maximum forward voltage of 1.85 volts for reliable input signal handling.
- Encased in an 8-pin PDIP through-hole package for ease of PCB mounting.
- Features a maximum input current rating of 25mA suitable for DC input applications.
- Supports a wide operating temperature range from -40°C to 100°C ensuring robust performance.
- Typical rise and fall times are 5 nanoseconds, enabling fast switching responses.
- Maximum current transfer ratio is 90%, with a minimum of 44%, ensuring efficient signal transmission.
- Meets international standards including IEC/EN/DIN EN 60747-5-2, CSA, UL, and RoHS compliance.
- Designed for single channel operation, ideal for intelligent power modules and other industrial electronic uses.
Product Description
Broadcom HCNW4506-000E DC Input Optocoupler is a through-hole electronic component supplied in an 8-pin PDIP package, engineered for reliable electrical isolation and control signal transmission in industrial and electronic systems.
It boasts a maximum forward voltage of 1.85V and a maximum input current of 25mA, tailored for DC input signals. The device exhibits swift switching characteristics with typical rise and fall times of 5ns, supporting high-speed applications.
Operating temperature ranges from -40°C to 100°C, allowing dependable function in diverse industrial environments including automotive electronics, industrial equipment, and power modules.
The optocoupler provides a robust maximum current transfer ratio of up to 90%, and a minimum ratio of 44%, ensuring effective signal communication while maintaining galvanic isolation. It is designed for single channel use in intelligent power modules and similar systems.
This product conforms to rigorous international standards such as IEC/EN/DIN EN 60747-5-2, CSA, UL certifications, and complies with RoHS directives, underscoring its quality and sustainability credentials.
Maximum forward voltage: 1.85V. Input current type: DC with a maximum of 25mA. Package type: 8-pin PDIP through-hole mount. Typical rise and fall times: 5ns for fast switching. Operating temperatures: -40°C to 100°C. Current transfer ratio ranges: 44% minimum to 90% maximum.
Meets IEC/EN/DIN EN 60747-5-2, CSA, UL and RoHS standards. Ideal for integration into intelligent power modules and a variety of control circuit designs. Explore more Optocoupler components from Broadcom and other leading brands in the Electronics Components category at EnvMart.
