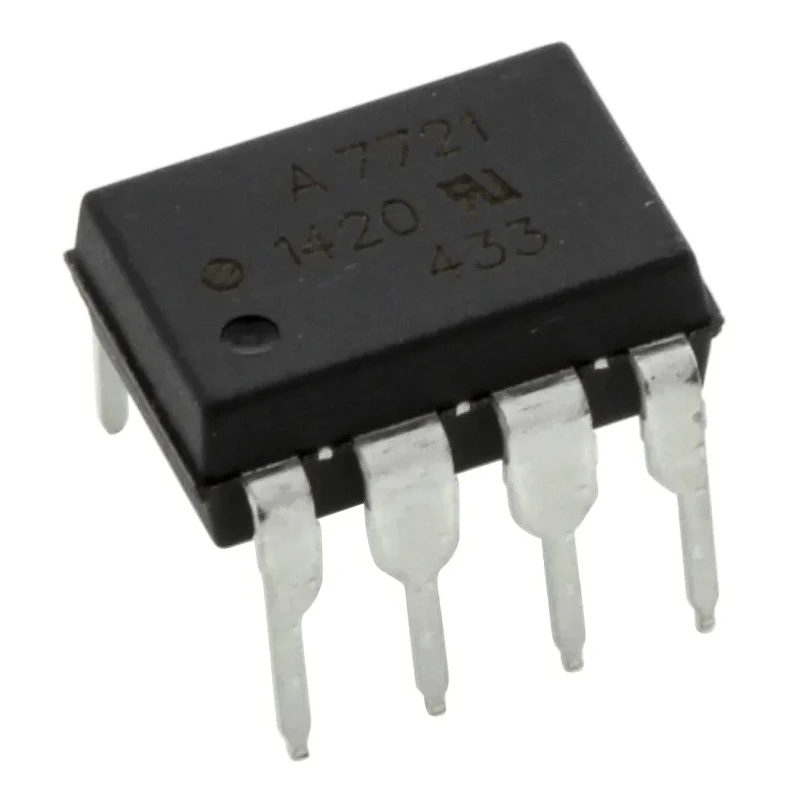

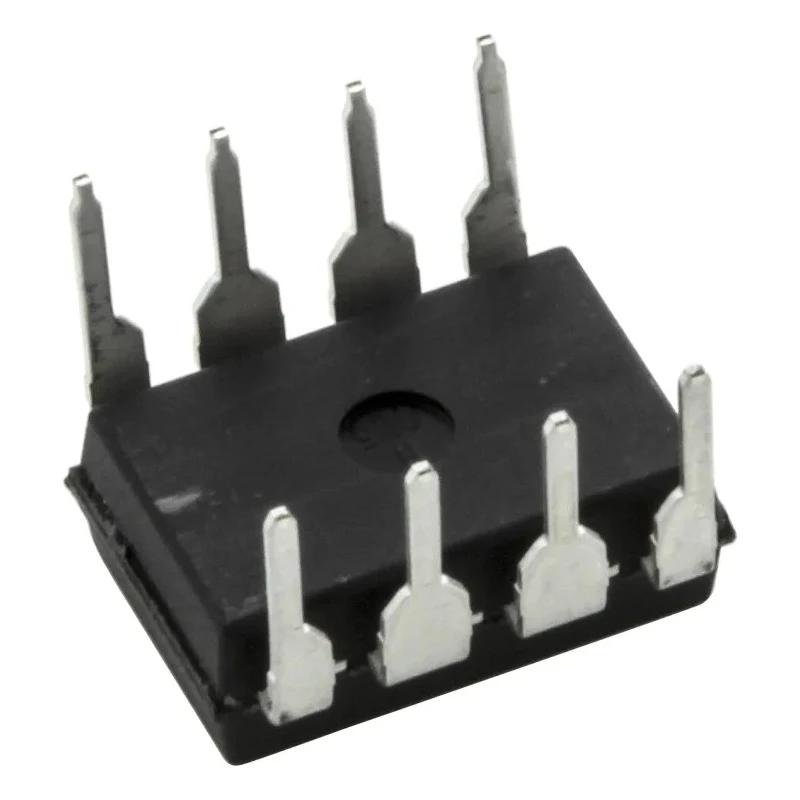

Broadcom DC Input Optocoupler Through Hole 8-Pin DIP HCPL-7721-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-7721-000E |
| Packaging | Tube Reel |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10μA |
| Standards/Approvals | CSA, IEC/EN/DIN EN 60747-5-5, UL 1577 |
| Maximum Forward Voltage | 6.5V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 9ns |
| Typical Fall Time | 8ns |
| Isolation Voltage | 3750V ac |
Key Features
- This optocoupler features a maximum forward voltage of 6.5V for reliable operation.
- Typical rise time is 9 nanoseconds and fall time is 8 nanoseconds for fast switching.
- It supports a maximum input current of 10 microamperes with DC input current type.
- The device offers excellent isolation voltage of 3750V AC ensuring circuit protection.
- Operating temperature ranges from -40°C to 85°C, suitable for industrial environments.
- Designed for high speed CMOS logic gate applications with transistor output type.
- Package type is dual in-line (DIP) with 8 pins and through-hole mount type for easy PCB integration.
- Complies with CSA, IEC/EN/DIN EN 60747-5-5, and UL 1577 standards ensuring safety and quality.
Product Description
Broadcom HCPL-7721-000E DC Input Optocoupler is a high-speed, 8-pin DIP through-hole device designed for reliable optoisolation of electronic circuits. Operating with a maximum forward voltage of 6.5V and DC input current type, it offers fast switching characteristics essential for industrial, laboratory, and manufacturing applications.
This optocoupler features a typical rise time of 9 nanoseconds and a fall time of 8 nanoseconds, providing rapid response suitable for high frequency signal isolation. The transistor output type and logic output capabilities make it ideal for interfacing with CMOS logic gates and microcontrollers.
With an isolation voltage of 3750 volts AC, this component ensures robust electrical isolation between input and output circuits, enhancing safety and signal integrity in power and control systems.
The device is rated for operation in temperature ranges from -40 to 85 degrees Celsius, making it suitable for use in harsh environmental conditions, including industrial and commercial electronics systems.
Its package is a dual in-line (DIP) form factor with 8 pins and through-hole mounting, facilitating easy placement in PCB assemblies and production environments.
Certified under CSA, IEC/EN/DIN EN 60747-5-5, and UL 1577 standards, the HCPL-7721-000E meets stringent quality and safety guidelines required for electronic components used in critical applications.
This optocoupler features a maximum forward voltage of 6.5V for reliable operation. Typical rise time is 9 nanoseconds and fall time is 8 nanoseconds for fast switching. Supports maximum input current of 10 microamperes with DC input type.
Offers isolation voltage of 3750V AC providing robust circuit protection. Operating temperature range from -40°C to 85°C. Transistor output type compatible with high-speed CMOS logic gates. Package is 8-pin DIP through-hole for easy PCB mounting.
Complies with CSA, IEC/EN/DIN EN 60747-5-5 and UL 1577 standards.
Ideal for industrial, laboratory, electronic manufacturing, and power electronics applications requiring reliable optoisolation and high speed signal switching. Explore more Optocouplers and related electronic components in the Electronics Components category at EnvMart.
