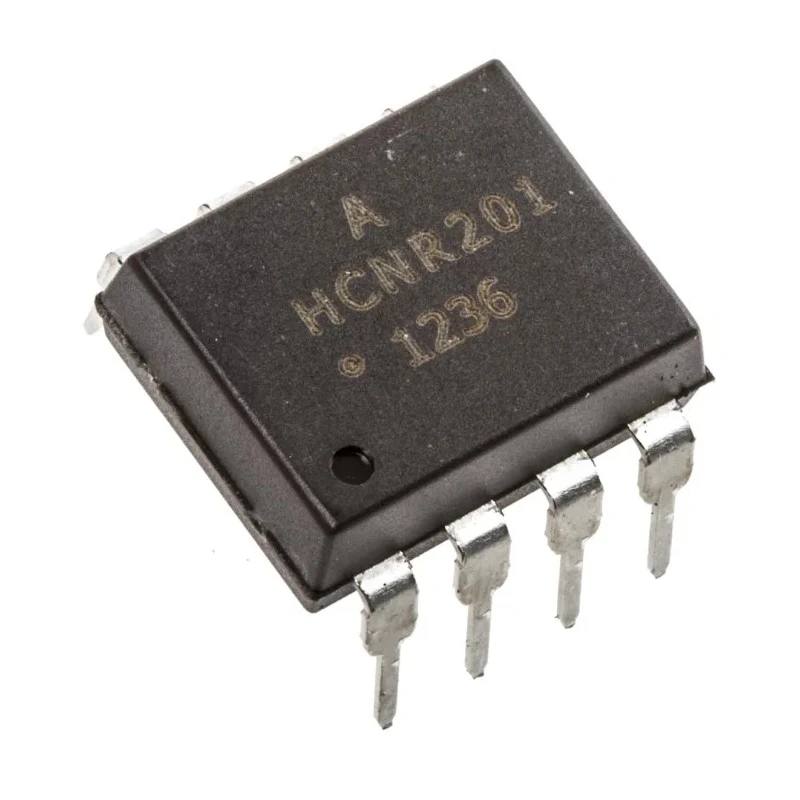

Broadcom DC Input Optocoupler Through Hole 8-Pin PDIP HCNR201-000E
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Broadcom |
| Model | HCNR201-000E |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Output type | Photodiode |
| Series | HCNR201 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, IEC/EN/DIN EN 60747-5-2, UL |
| Maximum Forward Voltage | 1.95V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 0.36% |
| Minimum Current Transfer Ratio | 0.72% |
| Isolation Voltage | 5000V ac |
| Opto-isolator,IL300-F 5300Vac/50mA DIP4Brand | Infineon |
Key Features
- Utilizes a photodiode output type for accurate signal transfer.
- Supports a maximum forward voltage of 1.95 V ensuring stable operation.
- Designed to operate with a DC input current up to 25 mA.
- Provides a high isolation voltage rating of 5000 V AC for robust electrical separation.
- Package includes 8 pins in a PDIP through-hole form factor.
- Operating temperature range spans from -55°C to 100°C to withstand harsh environments.
- Complies with CSA, IEC/EN/DIN EN 60747-5-2, and UL safety standards.
- Supplied in tape and reel packaging suitable for automated assembly.
Product Description
Broadcom HCNR201-000E is a high-linearity DC input optocoupler designed for electronic isolation in circuits requiring precise signal transfer. This device features an 8-pin PDIP package with through hole mounting making it suitable for integration into various electronics applications. It employs a photodiode output for accurate response and low distortion.
The optocoupler has a maximum forward voltage of 1.95 V and supports DC input currents up to 25 mA. Its high isolation voltage of 5000 V AC ensures effective separation of input and output sides, reducing noise and protecting sensitive components.
Operating over a temperature range from -55°C to 100°C, this component is adaptable to a wide variety of industrial, commercial, and laboratory environments. It meets stringent safety and reliability standards including CSA, IEC/EN/DIN EN 60747-5-2, and UL certifications.
The device is part of the HCNR201 series and is manufactured in Thailand. It is packaged in tape and reel format, facilitating efficient automated assembly in production lines.
Typical use cases include electronic equipment isolation, precise signal coupling in power supplies, measurement devices, telecommunications, and control systems where electrical isolation and signal integrity are critical.
The Broadcom HCNR201-000E provides dependable performance in applications requiring channel isolation with high linearity and stability. It is suitable for use in industrial controls, instrumentation, and commercial electronic products.
Utilizes a photodiode output for accurate signal transfer. Maximum forward voltage of 1.95 V. Supports DC input current up to 25 mA. High isolation voltage of 5000 V AC. 8-pin PDIP package, through hole mount. Operating temperature range from -55°C to 100°C.
Complies with CSA, IEC/EN/DIN EN 60747-5-2, UL standards. Packaging: Tape & Reel suitable for automated assembly. Manufactured in Thailand. Series: HCNR201 for compatibility and performance. Explore further in the Optocouplers category for components suited to electronic isolation and photodetection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage for this model is 1.95 V.
It has a high isolation voltage rating of 5000 V AC, ensuring effective electrical separation.
This unit operates within a temperature range of -55°C to 100°C, making it suitable for harsh environments.
It utilizes a photodiode output type for accurate signal transfer and low distortion.
The HCNR201-000E supports a maximum DC input current of 25 mA.
This optocoupler features 8 pins in a PDIP package for through-hole mounting.
It complies with CSA, IEC/EN/DIN EN 60747-5-2, and UL safety standards.
It is supplied in tape and reel packaging, which is suitable for automated assembly.
This model is part of the HCNR201 series, designed for compatibility and performance in electronic isolation applications.
The minimum current transfer ratio is 0.72%, and the maximum is 0.36%.
It uses a through-hole mounting type, making it suitable for various electronic applications.
This optocoupler is manufactured in Thailand.
