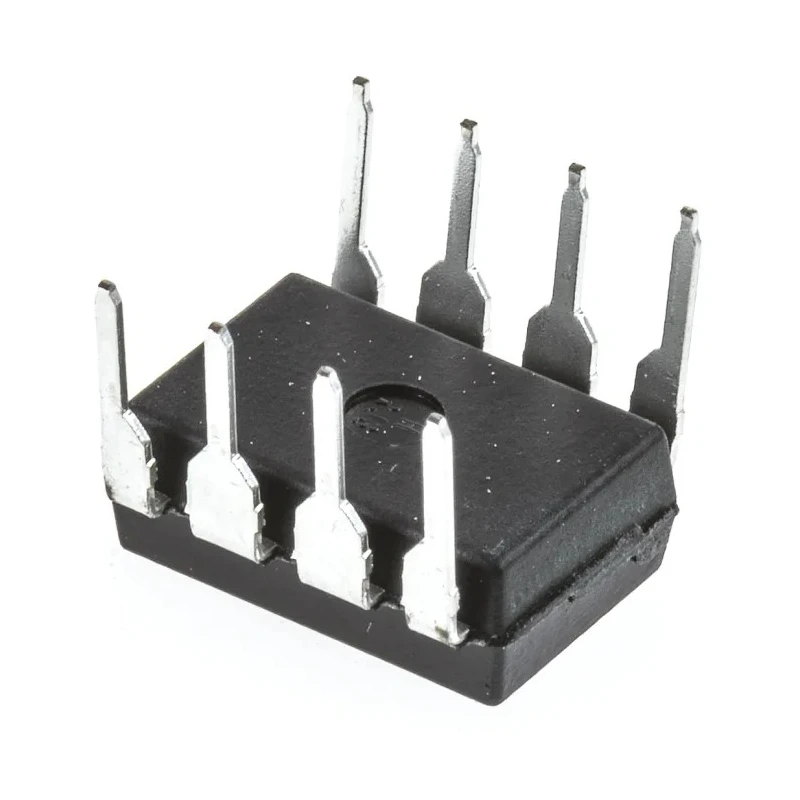

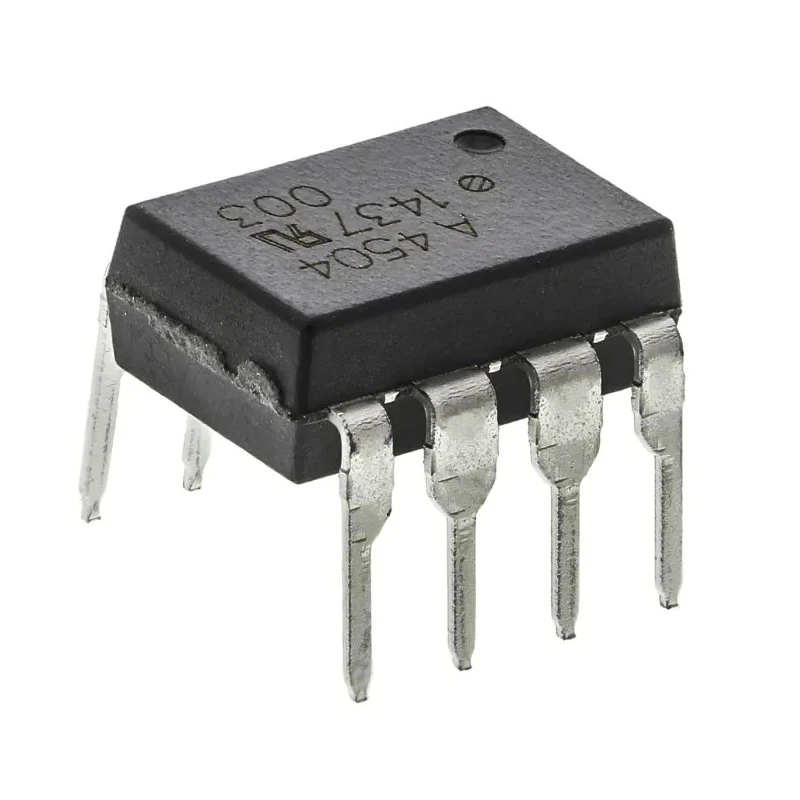

Broadcom DC Input Transistor Output Optocoupler Through Hole 8-Pin PDIP HCPL-4504-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-4504-000E |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, EN, IEC, UL |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 65% |
| Minimum Current Transfer Ratio | 26% |
| Broadcom HCNW4504-300E DC Input Optocoupler, Surface, 8-Pin DIPBrand | Broadcom |
Key Features
- Utilizes a transistor output for fast switching performance.
- Supports a maximum forward voltage of 1.7V, ensuring reliable operation.
- Operates with a maximum input current of 25mA, suitable for DC input applications.
- Isolation voltage rating of 5kVrms for safe electrical isolation.
- Wide operating temperature range from -55°C to 100°C for harsh environments.
- Packaged in tubes for easy handling and insertion.
- Logic output supported for simplified interface integration.
- Designed with 1 channel and 8 pins in a PDIP package.
Product Description
Broadcom HCPL-4504-000E is a DC input optocoupler featuring a transistor output in an 8-pin PDIP through-hole package. This device offers high isolation with a maximum isolation voltage of 5kVrms and supports a maximum forward voltage of 1.7V. It provides fast switching speed, ideal for Intelligent Power Module (IPM) interface applications requiring short propagation delays and high transient immunity.
Designed to support a maximum input current of 25mA with DC input current type, it operates over a wide temperature range from -55°C to 100°C, making it suitable for demanding industrial, electronic, and power control applications. Its logic output simplifies interfacing with digital circuits.
The device is compliant with CSA, EN, IEC, and UL standards, ensuring reliable performance and safety. Packaged in tubes, it facilitates efficient handling and assembly in manufacturing environments.
The HCPL-4504-000E series from Broadcom offers reinforced insulation and reliability required for critical applications including automotive and high-temperature environments. The device’s compact through-hole PDIP package with 8 pins ensures compatibility with legacy and modern circuit designs.
High isolation voltage of 5kVrms for robust electrical safety. Fast IGBT switching with short propagation delay for power electronics. Wide operating temperature range from -55°C to 100°C. Complies with multiple international safety standards.
Single channel transistor output for efficient signal transfer.
This product is widely applied in industrial equipment, power supplies, and communication systems requiring electrical isolation and noise immunity. It is particularly valuable in electronic control circuits where DC inputs must be monitored or switched with galvanic isolation.
Explore more from Broadcom Optocouplers and related electronic components categories at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 25mA, making it suitable for DC input applications.
It has an isolation voltage rating of 5kVrms, ensuring safe electrical isolation for various applications.
This unit operates over a wide temperature range from -55°C to 100°C, suitable for harsh environments.
It features a single channel output, designed for efficient signal transfer in various applications.
The device provides a transistor output, which supports fast switching performance for applications.
The maximum forward voltage supported by this model is 1.7V, ensuring reliable operation in circuits.
It is packaged in tubes, facilitating easy handling and insertion during assembly.
The device complies with CSA, EN, IEC, and UL standards, ensuring reliable performance and safety.
This model is designed for through-hole mounting, making it compatible with various circuit designs.
The maximum current transfer ratio is 65%, while the minimum is 26%, allowing for effective signal transmission.
This optocoupler is widely applied in industrial equipment, power supplies, and communication systems requiring electrical isolation.
The device features 8 pins, arranged in a PDIP package, ensuring compatibility with both legacy and modern circuit designs.
