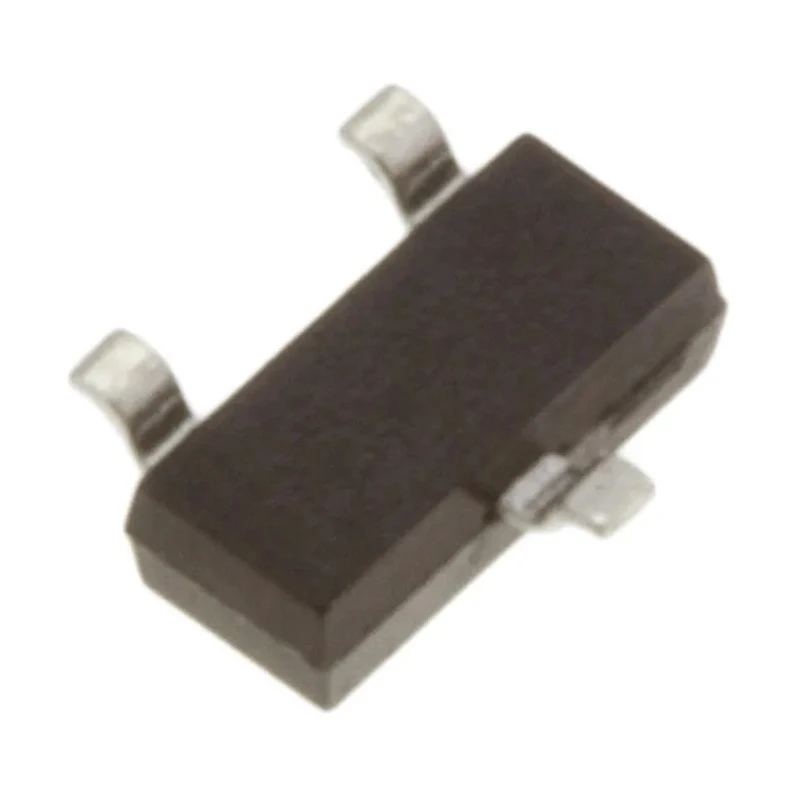

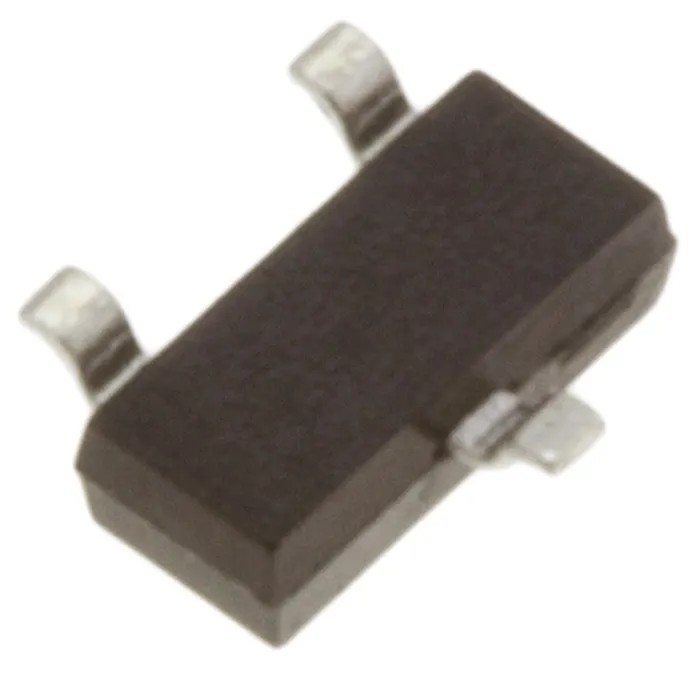

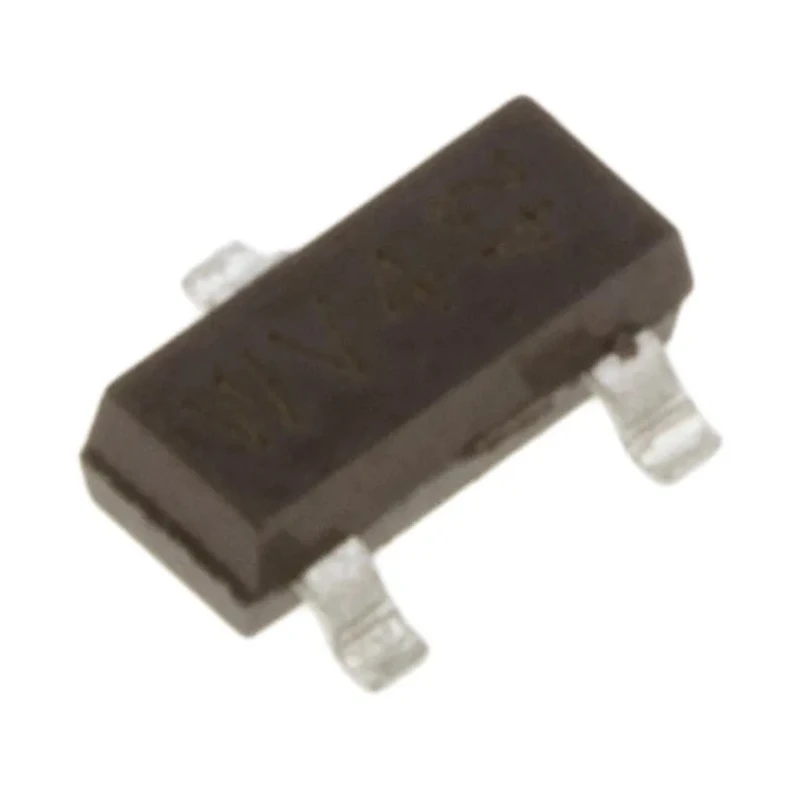

Nexperia Schottky Diode 30 V 200 mA Surface Mount SOT-23 Package BAT54S,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 30 V 200 mA Surface Mount SOT-23 Package BAT54S,215

Name: Nexperia Schottky Diode 30 V 200 mA Surface Mount SOT-23 Package BAT54S,215
Brand: Nexperia
SKU: 196855
Price: 0.1 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	3mm
Model	BAT54S,215
Width	1.4mm
Mount Type	Surface
Series	BAT54
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Series
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns

Key Features

Provides high efficiency with ultra-low forward voltage drop.
Packaged in a compact SOT-23 3-pin surface mount package.
Supports maximum continuous forward current of 200 mA and peak forward surge current of 600 mA.
Operates reliably within -65°C to 125°C temperature range.
Features peak reverse voltage of 30 V and low reverse leakage current.
Supplies fast recovery time of 5 ns for switching applications.
Complies with automotive standard AEC-Q101 for reliability.
Extremely low forward voltage of 800 mV ensures energy efficiency.

Product Description

Nexperia BAT54S,215 is a high-efficiency Schottky diode designed for surface mount applications requiring low voltage drop and fast switching.

This diode supports a maximum continuous forward current of 200 mA and peak repetitive reverse voltage of 30 V, making it suitable for various semiconductor and power electronics uses.

It features a compact 3-pin SOT-23 package sized at 3 mm by 1.4 mm by 1 mm. With a low forward voltage of 800 mV and a peak reverse recovery time of just 5 ns, it offers excellent performance in circuits sensitive to power loss and switching speed.

The device operates reliably within a wide temperature range from -65°C minimum to 125°C maximum, while also complying with automotive standard AEC-Q101 for quality assurance.

Key characteristics include a maximum peak non-repetitive forward surge current of 600 mA and a very low peak reverse current of 2 μA, ensuring minimal leakage and power dissipation.

Applications span industrial electronics, power supply rectification, signal demodulation, and other discrete semiconductor roles where efficient, low-profile Schottky diodes are required.

Provides high efficiency with ultra-low forward voltage drop. Packaged in a compact SOT-23 3-pin surface mount package. Supports maximum continuous forward current of 200 mA and peak forward surge current of 600 mA. Operates reliably within -65°C to 125°C temperature range.

Features peak reverse voltage of 30 V and low reverse leakage current. Supplies fast recovery time of 5 ns for switching applications. Complies with automotive standard AEC-Q101 for reliability. Extremely low forward voltage of 800 mV ensures energy efficiency.

Compact dimensions of 3 mm length, 1.4 mm width, and 1 mm height. Ideal for industrial electronics, power management, and signal rectification uses. Explore more semiconductor components and Schottky diode options in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
