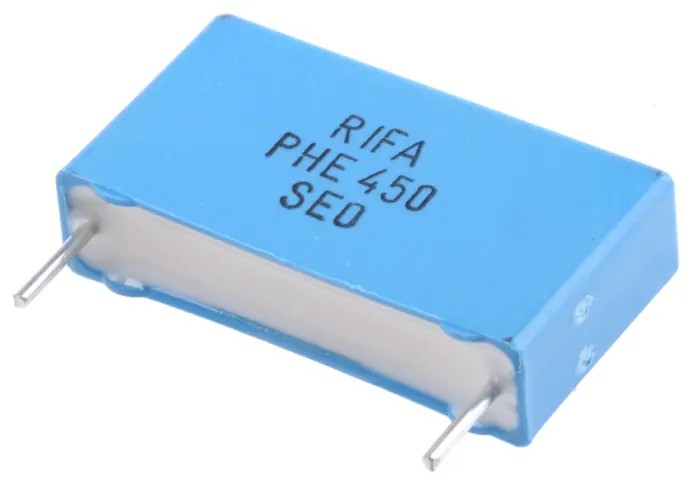

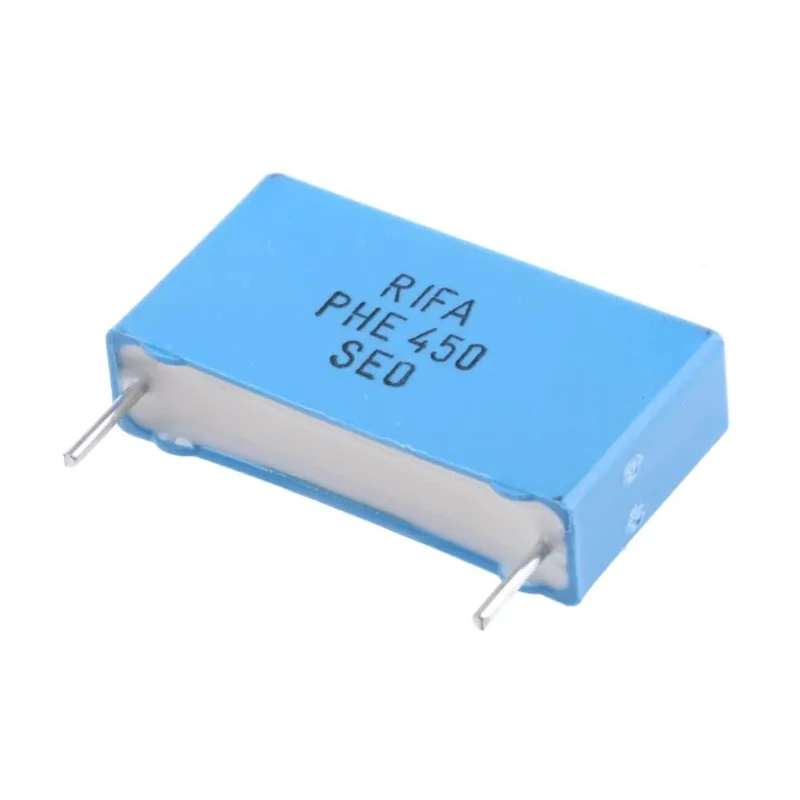

KEMET Film Capacitor 100 nF ±5 % 630 V dc 180 V ac Radial Through Hole PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 14.5mm |
| Length | 26mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Polypropylene film capacitor with ±5 % capacitance tolerance for precision performance.
- Rated for 630 V dc and 180 V ac ensuring suitability for various electronic circuits.
- Radial lead type with a 22.5 mm lead pitch and 6 mm lead length facilitates easy through-hole mounting.
- Operating temperature range from -55°C to 105°C supporting reliable operation under thermal stress.
- Encapsulated in self-extinguishing resin complying with UL 94 V-0 for enhanced safety.
- Dissipation factor is exceptionally low at 0.0003 % for minimal energy loss.
- Ideal for pulse and snubber circuit applications in power supplies and televisions.
- Packaging in tape and reel format supports automated assembly processes.
Product Description
KEMET PHE450 Film Capacitor 100 nF ±5 % 630 V dc 180 V ac Radial Through Hole capacitors provide high performance for industrial and commercial electronic applications. Manufactured using double metallized polypropylene film, these capacitors deliver superior stability and low loss, suitable for high-frequency pulse and snubber circuits.
The capacitors are encapsulated in a self-extinguishing resin material meeting UL 94 V-0 safety standards, ensuring robust flame retardancy. Rated for a high DC voltage of 630 V and an AC voltage of 180 V, they offer exceptional reliability in demanding power supply and television deflection circuits.
Featuring radial lead terminals with a pitch of 22.5 mm and lead length of 6 mm, these capacitors ensure reliable connection in through-hole PCB mounting. The unit supports a wide operating temperature range of -55°C to 105°C, making them suitable for diverse environmental conditions. A very low dissipation factor of 0.0003 % optimizes energy efficiency in high-frequency applications.
This product is ideal for industrial electronics, power electronics, manufacturing, laboratory, and telecommunications equipment. The packaging in tape and reel format is compatible with automated assembly lines, enhancing production efficiency and quality control.
Polypropylene film capacitor with ±5 % tolerance for precise capacitance control. Rated DC voltage of 630 V and AC voltage of 180 V for versatile power applications. Radial lead type with 22.5 mm lead pitch supports easy through-hole mounting.
Temperature range from -55°C to 105°C enables durable performance across environments. Encapsulation in UL 94 V-0 compliant resin ensures flame retardant properties. Extremely low dissipation factor of 0.0003 % for energy efficiency.
Designed for pulse and snubber circuits in switch mode power supplies and televisions. Supplied in tape and reel packaging for automated assembly processes. Explore more in Film Capacitors from EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nF with a tolerance of ±5%.
It is rated for a DC voltage of 630 V and an AC voltage of 180 V.
The operating temperature range is from -55°C to 105°C, allowing for reliable performance in various environments.
This model supports through-hole mounting with radial lead terminals.
The dimensions are 26 mm in length, 6.5 mm in width, and 14.5 mm in height.
The lead pitch is 22.5 mm, facilitating easy PCB installation.
It has a very low dissipation factor of 0.0003%, which helps minimize energy loss.
Yes, it is encapsulated in a resin that complies with UL 94 V-0 safety standards for flame retardancy.
The capacitor is packaged in tape and reel format, which is suitable for automated assembly processes.
This model is ideal for pulse and snubber circuits in power supplies and televisions.
It features radial terminals with a lead diameter of 0.8 mm.
The country of origin for this product is India.
