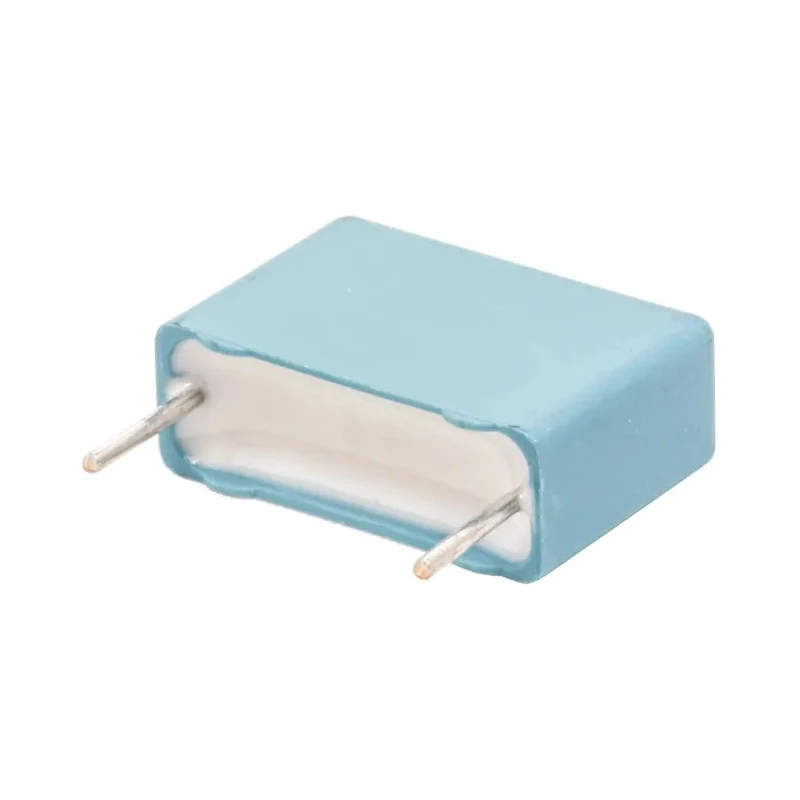

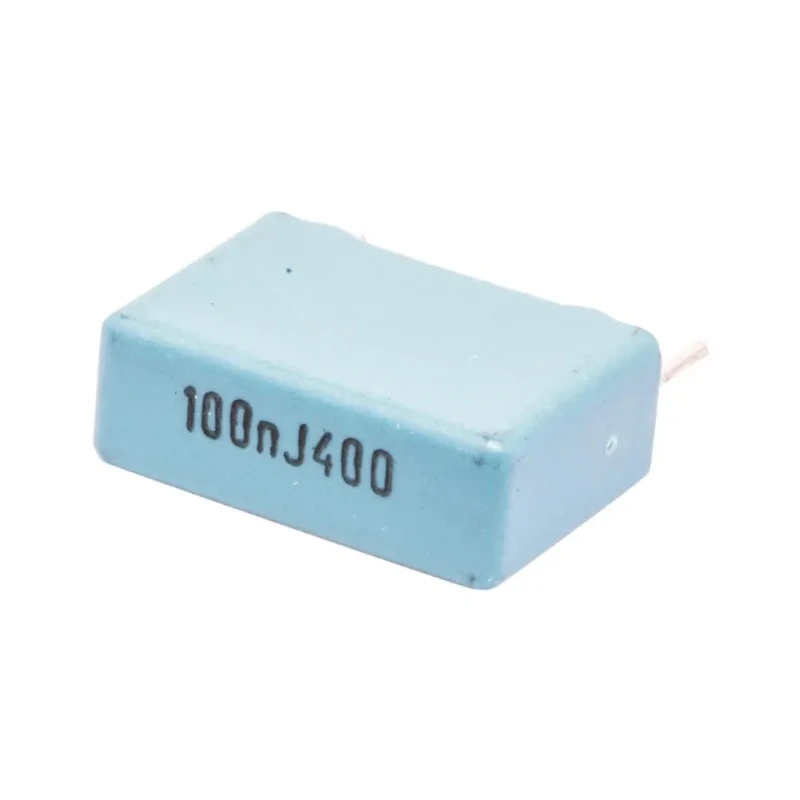

KEMET PHE450 Film Capacitor, ±5 % Tolerance, 100 nF, 400 V DC, 180 V AC, Through Hole Mounting PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 12.5mm |
| Length | 18mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Constructed with double metallized polypropylene film for enhanced pulse performance.
- Encapsulated in self-extinguishing resin meeting UL 94 V-0 safety standards.
- Suitable for snubber and pulse circuits in power supplies and television deflection.
- Radial terminal type with 15 mm lead pitch and 6 mm lead length for easy PCB insertion.
- Operates reliably from -55°C to 105°C temperature range.
- Low dissipation factor of 0.0003% ensuring minimal energy loss.
- Available in tape & reel packaging for automated assembly.
Product Description
KEMET PHE450 Film Capacitor PHE450 is a high-quality, metallized polypropylene Film Capacitor characterized by ±5 % tolerance and 100 nF capacitance. It is rated for 400 V DC and 180 V AC applications and utilizes through hole mounting with radial leads spaced at 15 mm. This capacitor features double metallized polypropylene film construction encapsulated in a self-extinguishing resin that conforms to UL 94 V-0 requirements for enhanced safety and reliability.
Its design makes it particularly suitable for high current stress environments such as protection circuits in switch mode power supplies and deflection circuits in televisions. The device offers a wide operating temperature range from -55°C to 105°C, making it dependable in varied industrial and commercial electronic conditions.
The radial terminal type with a lead length of 6 mm and diameter of 0.8 mm facilitates secure and stable PCB mounting. The capacitor also exhibits a very low dissipation factor of 0.0003%, contributing to high efficiency in pulse applications. It is supplied in tape & reel packaging, ensuring compatibility with automated assembly processes in manufacturing.
Typical industrial applications include electronic circuit protection, power electronics, signal filtering, and pulse circuitry in industrial, commercial, laboratory, and manufacturing environments. The capacitor is RoHS compliant, aligning with modern environmental standards.
Constructed with double metallized polypropylene film for pulse durability. Encapsulated in flame-retardant resin meeting UL 94 V-0 standard. Rated voltages: 400 V DC and 180 V AC for diverse applications. Through hole mount type with radial leads for PCB assembly ease.
Wide operating temperature range from -55°C to 105°C ensures versatility. Low dissipation factor minimizes energy losses in circuits. Supplied in tape & reel packaging suitable for automated pick-and-place assembly. Discover more industrial and electronic components on EnvMart to meet professional and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nF.
It is rated for 400 V DC and 180 V AC applications.
The operating temperature range is from -55°C to 105°C.
This model uses through hole mounting with radial leads.
The lead length is 6 mm and the lead diameter is 0.8 mm.
The lead pitch is 15 mm.
The dissipation factor is 0.0003%.
It is supplied in tape & reel packaging, suitable for automated assembly.
This model is RoHS compliant, aligning with modern environmental standards.
It is suitable for snubber and pulse circuits in power supplies and television deflection.
The dimensions are 12.5 mm in height, 6.5 mm in width, and 18 mm in length.
The capacitance tolerance is ±5%.
