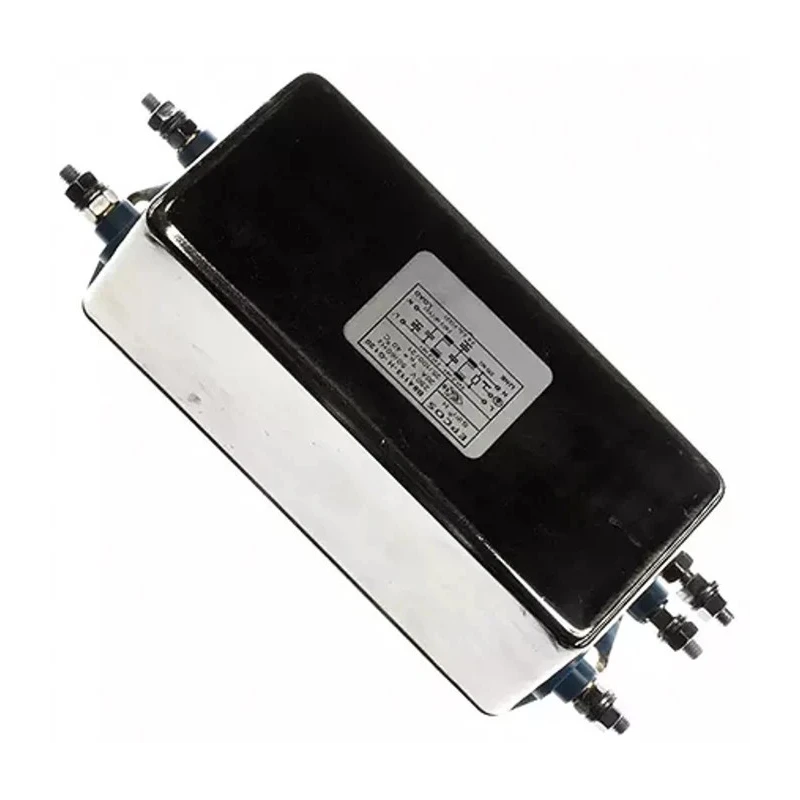

TDK Chassis Mount EMC Filter 20 A 250V AC/DC 50Hz 60 Hz, Screw Termination, Single Phase B84113H0000G120



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	53mm
Length	133mm
Model	B84113H0000G120
Depth	58mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84113H
Maximum Operating Temperature	100°C
Number Of Stages	2
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	20A
Number of Phases	1
Leakage Current	1.73mA
Maximum Voltage	250V ac/dc
Inductance	4mH
Standards/Approvals	UL1283
Termination Style	Screw

Key Features

Designed for AC/DC power systems with 50Hz to 60Hz frequency support.
Features screw termination style for secure chassis mounting.
Compact dimensions with length 133mm, height 53mm, and depth 58mm.
Includes low leakage current of 1.73mA for reliable noise suppression.
Suitable for switched mode power supplies in telecom and data systems.
Complies with UL1283 standard and ENEC10 approvals for quality assurance.
Constructed with polyurethane potting to meet UL 94 V−0 flammability rating.
Operates reliably from -25°C up to 100°C ambient temperature.

Product Description

TDK B84113H0000G120 chassis mount EMC filter is engineered to ensure electromagnetic compatibility in industrial and commercial electrical systems, operating at a maximum 20 A current and voltage up to 250V AC/DC. This single-phase filter supports standard power frequencies of 50 to 60 Hz, making it suitable for a wide range of power line filter applications.

The filter features a screw termination style that allows for secure and reliable chassis mounting in electronic enclosures. Its compact design measures 133mm in length, 53mm in height, and 58mm in depth, facilitating installation within varied space constraints.

With 2 filter stages and an inductance value of 4mH, the device effectively reduces electromagnetic interference, featuring a low leakage current of 1.73mA to minimize unwanted current flow. The filter’s polyurethane potting complies with the UL 94 V-0 flammability standard, ensuring safety under electrical stress.

Operating within a temperature range from -25°C to 100°C, this EMC filter is robust enough for industrial environments. It carries certifications such as UL1283 and ENEC10, attesting to its quality and conformity to international safety standards.

This product is particularly suited for applications including switched mode power supplies for telecommunications and data systems, providing stable and interference-free power delivery.

Designed for AC/DC power systems with 50Hz to 60Hz frequency support. Features screw termination style for secure chassis mounting. Compact size with 133mm length, 53mm height, and 58mm depth. Low leakage current of 1.73mA enhances EMC effectiveness.

Complies with UL1283 and ENEC10 standards for safety and performance. Explore the range of TDK EMC Filters at EnvMart for reliable electromagnetic interference management solutions.
