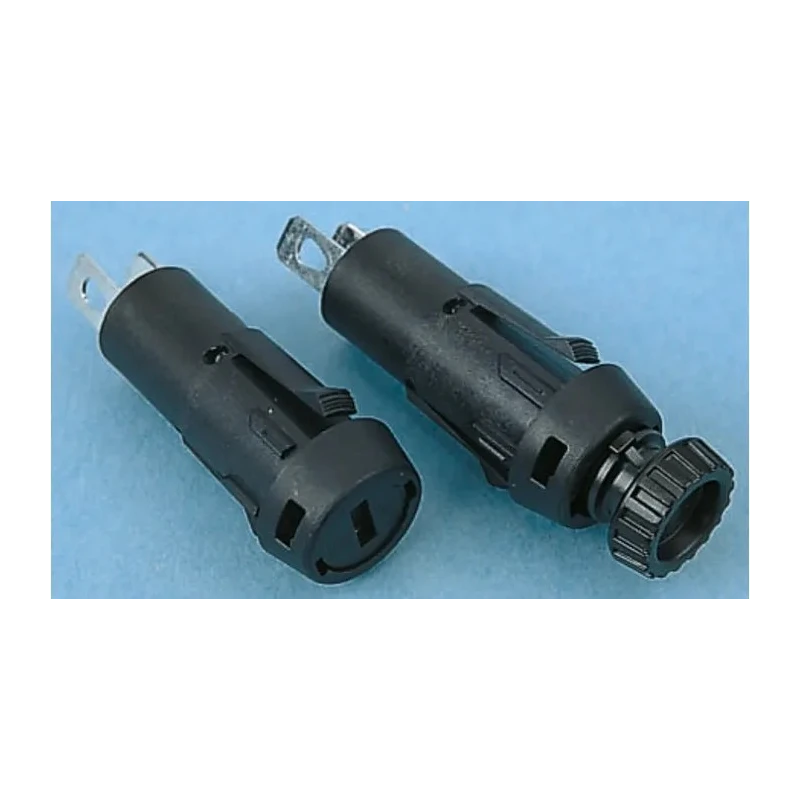

Schurter 16A Panel Mount Fuse Holder 1P-Pole for 5 x 20 mm Fuse Size 250V AC 3101.0030

Schurter 3101.0030 panel mount fuse holder 1P-Pole is engineered to accommodate 5 x 20 mm fuses with a current rating of 16 amps and voltage rating of 250V AC. Its thermoplastic body ensures robust insulation and mechanical strength, while the tin plated copper contacts deliver excellent electrical conductivity with minimal resistance.

This fuse holder is designed for panel mounting and includes a slotted cap style allowing easy fuse replacement. The solder type terminals, measuring 4.8 by 0.5 mm, allow secure connections either by quick connector or soldering methods, providing versatility in installation.

The product carries an IP40 rating indicating protection against solid objects equal to or greater than 1 mm and is sealed from the rear to prevent ingress of dust or contaminants, enhancing operational safety.

Applications for this fuse holder span household appliances, industrial electronics, and medical equipment, making it a versatile component for multiple sectors. It meets rigorous international standards and certifications including VDE, UL, RoHS, CE, IEC, and CSA, confirming quality and conformity for global use.

The Schurter FPG3 series fuse holders are recognized for their compact design, high standard of safety with protection category PC2 against electric shock hazards, and reliable performance.

Choosing this fuse holder ensures compliance, reliability, and ease of maintenance in electrical and electronic assemblies. Its durable materials and tried-and-tested design support long service life and safety in demanding applications.

Supports current rating of 16A ensuring safe circuit protection. Constructed with thermoplastic body material for durability. Tin plated copper contact materials provide low insertion resistance. Compatible with slotted cap style and solder terminal type.

Rated IP40 for protection against solid objects and limited dust ingress. Features quick connector or soldering terminals with 4.8x0.5mm dimensions. Sealed from rear to enhance safety and reliability. Suitable for household appliances, industrial electronics, and medical equipment.

Meets multiple international standards including VDE, UL, RoHS, CE, IEC, and CSA certifications. Designed as part of Schurter FPG3 series for panel mounting applications. Explore more Fuse Holders and electrical components at EnvMart for reliable and certified industrial solutions.
