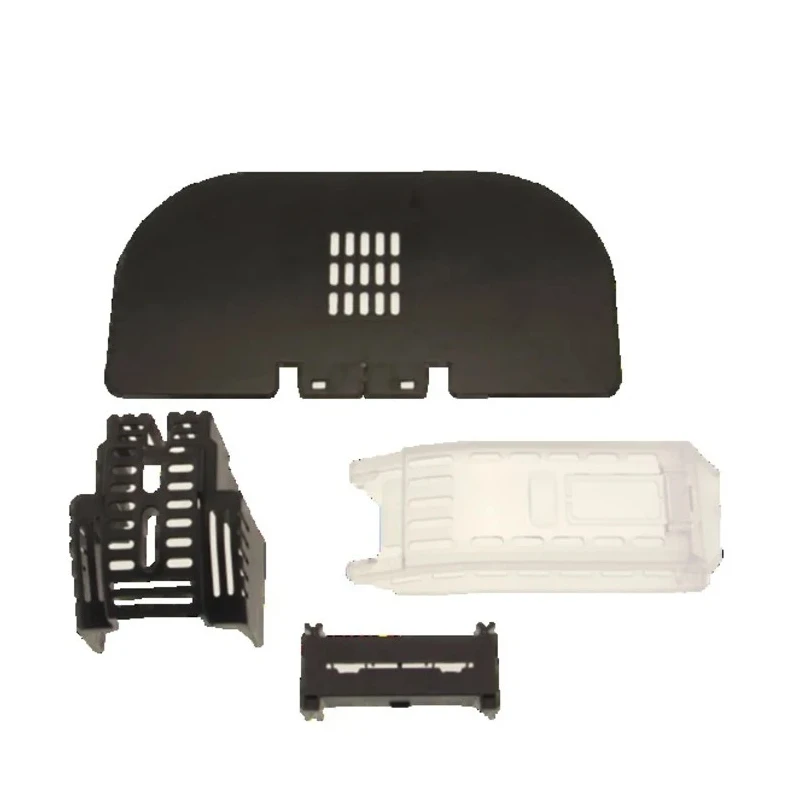

Eaton Rail Mount Fuse Holder 630A 3P 690V AC DIN 35mm TD3-IP20
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 690V ac |
| Brand | Eaton |
| Model | TD3-IP20 |
| Current Rating | 630A |
| Number of Poles | 3 |
| Standards/Approvals | IEC |
| Rail Type | DIN 35 mm |
Key Features
- Robust construction for reliable fuse mounting in high-current installations.
- Rated for 630A and designed to handle demanding electrical loads.
- Accommodates three poles for 3-phase systems, enhancing panel versatility.
- 690V AC voltage compatibility suitable for a wide range of distribution and control environments.
- Standard DIN 35mm rail mounting enables quick, secure installation in control cabinets.
- Anti-vibration feature helps maintain electrical integrity in challenging industrial locations.
- Compliant with IEC standards for assured safety and performance.
- Effective as part of LV (low voltage) protection kits and NH3 fuse systems.
Product Description
The Eaton TD3-IP20 is a rail mount fuse holder engineered for high-current three-phase protection in industrial and commercial electrical distribution. Its robust design supports up to 630A and operates reliably at voltages up to 690V AC, making it suitable for use in demanding environments such as control panels, switchboards, and distribution boards. The unit is compatible with NH3 fuses and provides effective protection for low-voltage circuits.
Featuring three poles, the TD3-IP20 streamlines 3-phase electrical installations and allows for secure integration with standard DIN 35mm rails. The anti-vibration capability ensures stable electrical contact, reducing the risk of faults caused by vibration or movement, which is especially vital in heavy industry and infrastructure projects.
Installation is straightforward thanks to its rail mount configuration, and its IP20 rating signifies protection against solid objects, providing a degree of safety during maintenance and operation. Meeting IEC standards, this fuse holder supports compliance with international electrical safety requirements.
Commonly used in power distribution networks, process automation, manufacturing environments, and utility switchgear, this holder ensures that critical systems remain protected from overloads and short circuits. Its design enables fast replacement of fuses and supports routine industrial maintenance procedures.
In summary, the Eaton TD3-IP20 fuse holder combines high capacity, superior safety, and rugged reliability for professionals managing significant electrical loads in modern electrical and automation facilities.
Explore more products from Eaton and browse the Fuse Holders category on EnvMart for a comprehensive selection of industrial electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton TD3-IP20 fuse holder has a current rating of 630A.
This model is rated for a maximum voltage of 690V AC.
The TD3-IP20 accommodates three poles, making it suitable for 3-phase systems.
This fuse holder is designed for mounting on standard DIN 35mm rails.
It complies with IEC standards, ensuring safety and performance in electrical installations.
The anti-vibration feature helps maintain stable electrical contact, reducing the risk of faults due to vibration or movement.
This fuse holder is suitable for use in demanding environments such as control panels, switchboards, and distribution boards.
The unit has an IP20 rating, indicating protection against solid objects during maintenance and operation.
Yes, the Eaton TD3-IP20 is compatible with NH3 fuses, providing effective protection for low-voltage circuits.
The Eaton TD3-IP20 fuse holder is manufactured in China.
It is commonly used in power distribution networks, process automation, manufacturing environments, and utility switchgear.
The design of this fuse holder allows for fast replacement of fuses, supporting routine industrial maintenance procedures.
