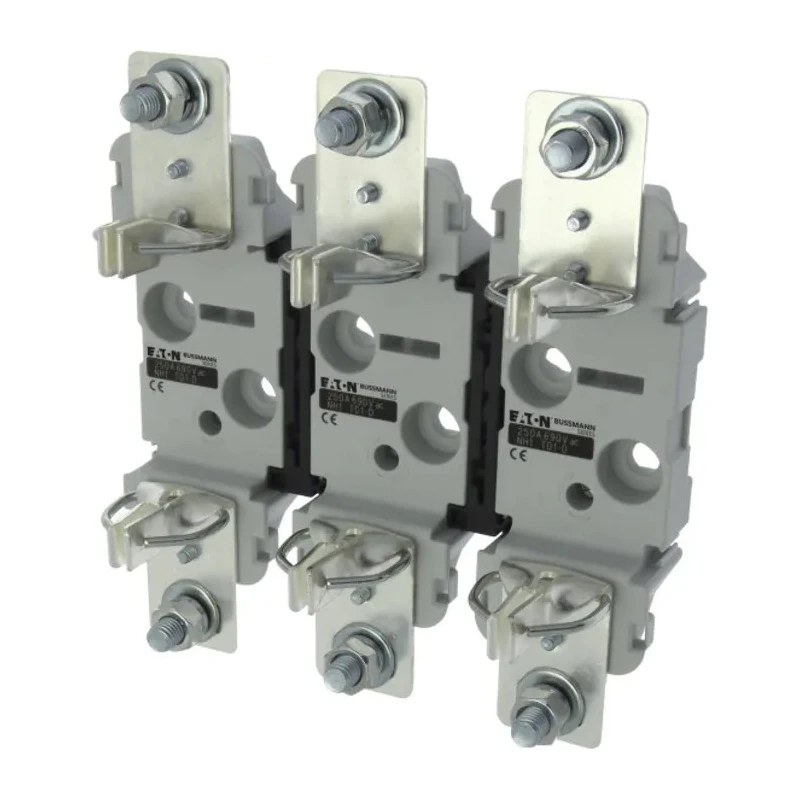

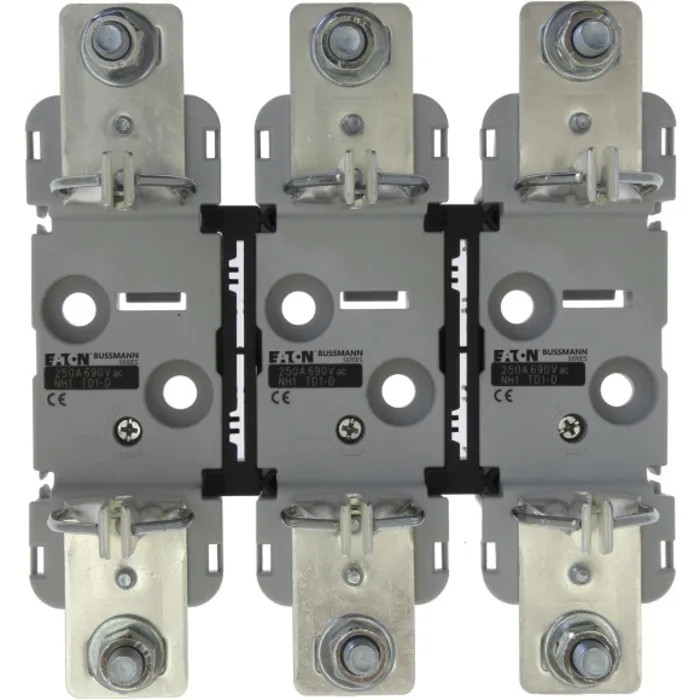

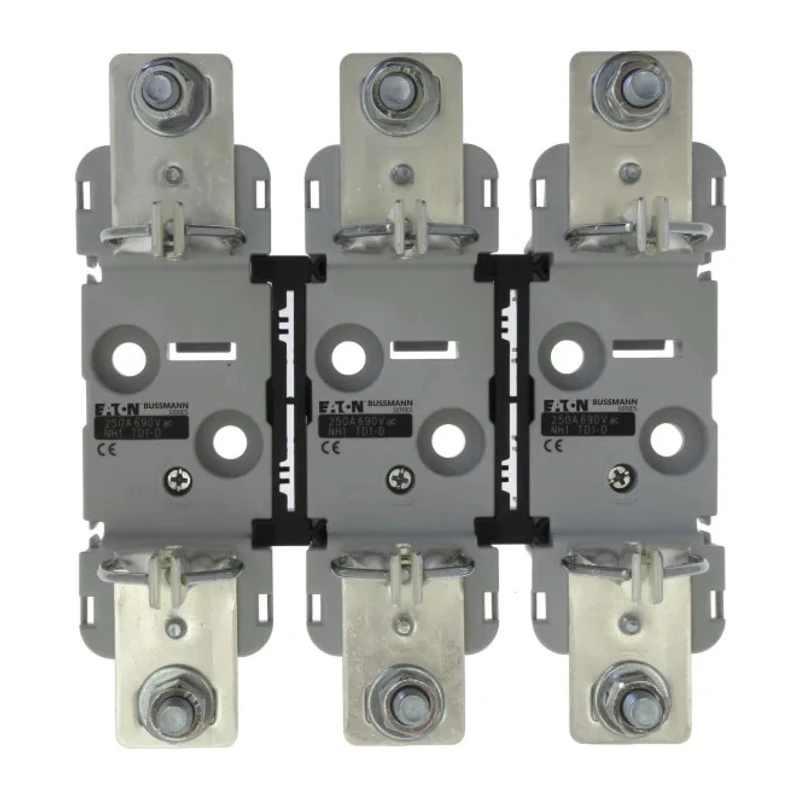

Eaton 250A Rail Mount Fuse Holder for NH1 Fuse Size, 3-Pole, 690V AC TD1-D
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 690V ac |
| Brand | Eaton |
| Model | TD1-D |
| Case Material | Polybutylene Terephthalate |
| Current Rating | 250A |
| Series | NH |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60269-1 |
| Rail Type | DIN 35 mm |
| Compatible Fuse Size | NH1 |
Key Features
- Constructed with durable Polybutylene Terephthalate (PBT) casing ensuring high thermal resistance.
- IP20 rated for protection against solid particle ingress.
- Compatible with NH1 fuse links for secure and reliable connections.
- Designed for DIN 35 mm rail mounting suitable for industrial electrical panels.
- Complies with IEC 60269-1 safety standards for fuse holders.
- Screw terminal type provides easy and secure wiring connections.
- Operates efficiently within an ambient temperature range of -20 to 70 degrees Celsius.
- Vibration tested according to IEC 60068-2-6, suitable for marine applications.
Product Description
Eaton TD1-D Rail Mount Fuse Holder is a robust electrical component designed for use with NH1 fuse links, supporting a current rating of 250A and voltage rating of 690V AC. Manufactured with high-quality Polybutylene Terephthalate (PBT) material, this fuse holder ensures excellent thermal resistance and long-lasting durability.
Its design supports mounting on standard DIN 35 mm rails, making installation straightforward in industrial and commercial electrical panels. The screw terminal connections facilitate secure and reliable wiring, reducing maintenance risks.
The fuse holder is IP20 rated, protecting against solid particle ingress while complying with IEC 60269-1 safety standards, ensuring safe operation under demanding electrical conditions.
Operating effectively within a temperature range of -20°C to 70°C, the TD1-D model is suitable for a wide range of environmental conditions, including vibration-sensitive marine applications where it meets IEC 60068-2-6 certification for vibration endurance.
Additional accessories such as phase barriers and terminal shrouds provide enhanced safety and organization within electrical setups. Furthermore, a microswitch option is available for remote monitoring of fuse operation, improving system reliability and maintenance efficiency.
Durable Polybutylene Terephthalate casing. IP20 protection level against solid particles. Compatible with NH1 fuse size links. Suitable for DIN 35 mm rail mounting. IEC 60269-1 compliant for industrial safety. Screw terminal for secure connections.
Operating temperature range from -20°C to 70°C. Vibration tested for marine environment use. Remote monitoring microswitch available.
This product is ideal for electrical installations requiring high current ratings and reliable fuse protection in industrial, marine, and commercial settings. Eaton, formerly known as Bussmann, is a trusted name in electrical components. Explore a comprehensive range of Fuse Holders and accessories at EnvMart to enhance your electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton TD1-D fuse holder has a current rating of 250A.
This model is rated for a voltage of 690V AC.
The TD1-D fuse holder is compatible with NH1 fuse links.
The casing of the Eaton TD1-D is constructed from Polybutylene Terephthalate (PBT), providing high thermal resistance.
It is designed for mounting on standard DIN 35 mm rails, suitable for industrial electrical panels.
The Eaton TD1-D operates efficiently within an ambient temperature range of -20°C to 70°C.
This fuse holder utilizes screw terminals for easy and secure wiring connections.
Yes, it complies with IEC 60269-1 safety standards for fuse holders.
The fuse holder has an IP20 rating, protecting against solid particle ingress.
This model is suitable for industrial, marine, and commercial electrical installations requiring high current ratings.
Additional features include a microswitch option for remote monitoring of fuse operation and phase barriers for enhanced safety.
The TD1-D has been vibration tested according to IEC 60068-2-6, making it suitable for marine applications.
