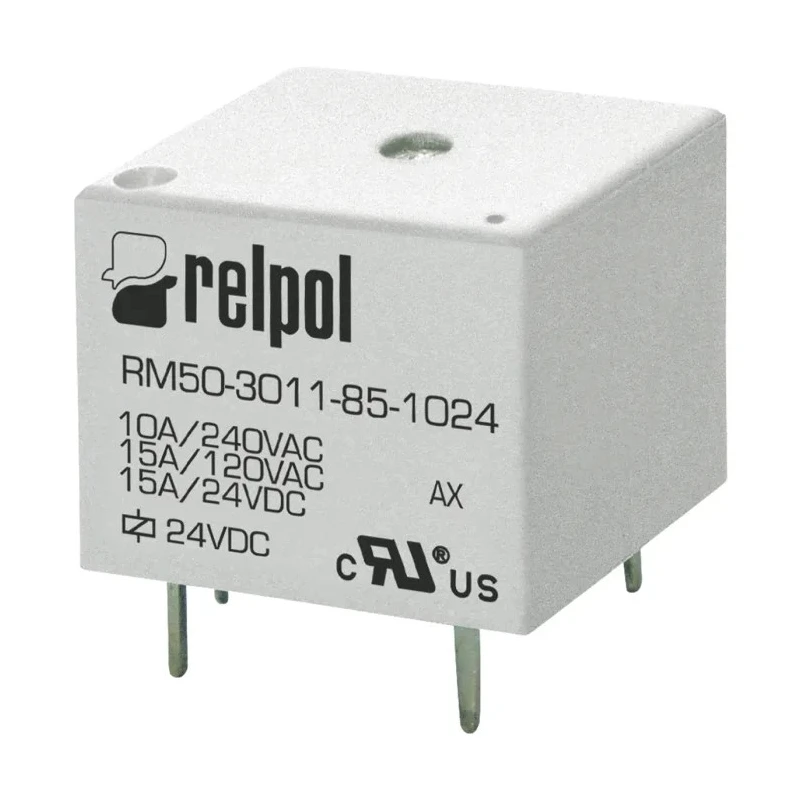

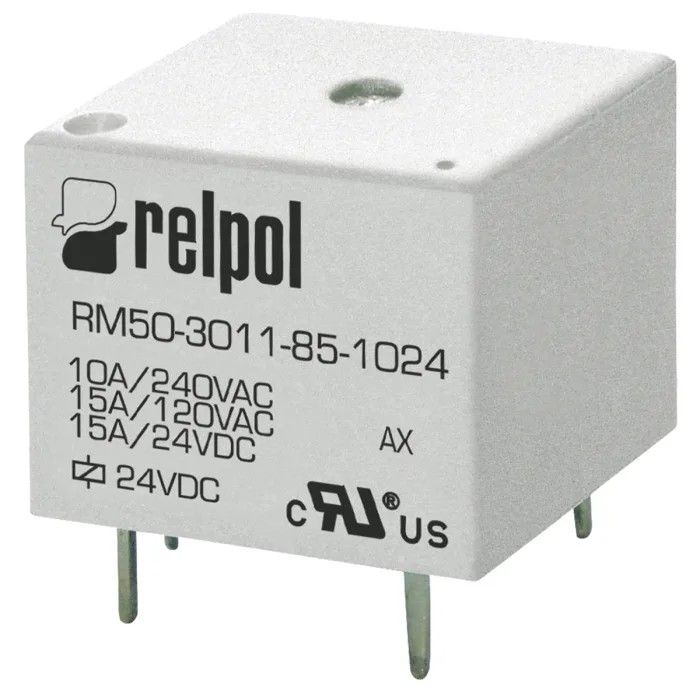

Relpol PCB Power Relay SPDT, 5V DC Coil, 15A Switching Current, RM50-3011-85-1005
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 15.5mm |
| Length | 19mm |
| Model | RM50-3011-85-1005 |
| Width | 15.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RM50 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 70Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 48V ac |
| Coil Power | 360mW |
Key Features
- The relay features a compact size with dimensions 19mm (L) x 15.4mm (W) x 15.5mm (H).
- It supports switching power up to 3kVA and switching voltages of 48V DC and 48V AC.
- The coil resistance is 70 ohms with coil power consumption of 360mW ensuring efficient operation.
- Suitable for a wide range of applications including automobile, machine, and electronic equipment.
- Constructed with silver alloy contacts guaranteeing reliable conductivity and low contact resistance (100mΩ).
- Designed to withstand minimum operating temperatures of -30°C and maximum operating temperatures up to 55°C.
- Terminal type is PCB pins for robust and easy PCB integration.
- Meets RoHS compliance and is manufactured in Poland ensuring quality standards.
Product Description
Relpol RM50-3011-85-1005 PCB Power Relay is a single-pole double-throw (SPDT) relay designed specifically for printed circuit board (PCB) mounting with a 5V DC coil voltage and a high switching current capacity of 15A. Its compact design and precise dimensions (19mm length, 15.4mm width, and 15.5mm height) make it suitable for use in limited spaces in various industrial and electronic applications.
This power relay supports switching voltages up to 48V DC and 48V AC and has a switching power rating of 3kVA, enabling it to handle moderate power loads efficiently. The coil resistance of 70 ohms and coil power consumption of 360mW ensure stable electrical performance with minimal power loss.
The silver alloy contacts provide dependable contact conductivity and minimize contact resistance to just 100 milliohms, thereby enhancing relay longevity and operational reliability. The PCB pin terminal type ensures secure and easy mounting on PCBs.
With a temperature operating range from -30°C up to 55°C, this relay is capable of functioning reliably across various environmental conditions. The relay is fully RoHS compliant, affirming its conformity to environmental and safety standards. Manufactured in Poland, the RM50 series relays are known for their durability and vibration resistance, making them ideal for use in automotive, machinery, and electronic equipment.
The relay’s design incorporates DC coils for efficient switching. It features a high load capacity of up to 15A DC. The compact size allows for flexible PCB layouts and space-saving implementations. It offers high shock and vibration resistance, ensuring operational stability in industrial environments.
Silver alloy contacts provide excellent conductivity and durability. RoHS certification guarantees compliance with environmental standards. Manufactured in Poland, assuring reliable quality.
This power relay is ideal for electrical automation, control systems, manufacturing, and industrial equipment applications. Browse the Electronics & Electricals category on EnvMart for more Power Relays and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 15A, making it suitable for moderate power loads in various applications.
The relay measures 19mm in length, 15.4mm in width, and 15.5mm in height, allowing for compact PCB integration.
It operates with a coil voltage of 5V DC and has a coil resistance of 70 ohms, ensuring efficient operation.
The relay supports switching voltages of up to 48V DC and 48V AC, accommodating a variety of electrical systems.
This relay features a single-pole double-throw (SPDT) contact configuration, suitable for diverse switching applications.
The maximum operating temperature for this unit is 55°C, allowing it to function in various environmental conditions.
The contacts of this relay are made from silver alloy, which provides reliable conductivity and low contact resistance.
It is designed for PCB mounting with PCB pin terminals, ensuring secure and easy integration onto printed circuit boards.
The minimum operating temperature for this model is -30°C, enabling reliable performance in colder environments.
The coil power consumption is 360mW, which contributes to its efficient operation.
Yes, this relay meets RoHS compliance, ensuring it adheres to environmental and safety standards.
It is suitable for a wide range of applications including automotive, machinery, and electronic equipment.
