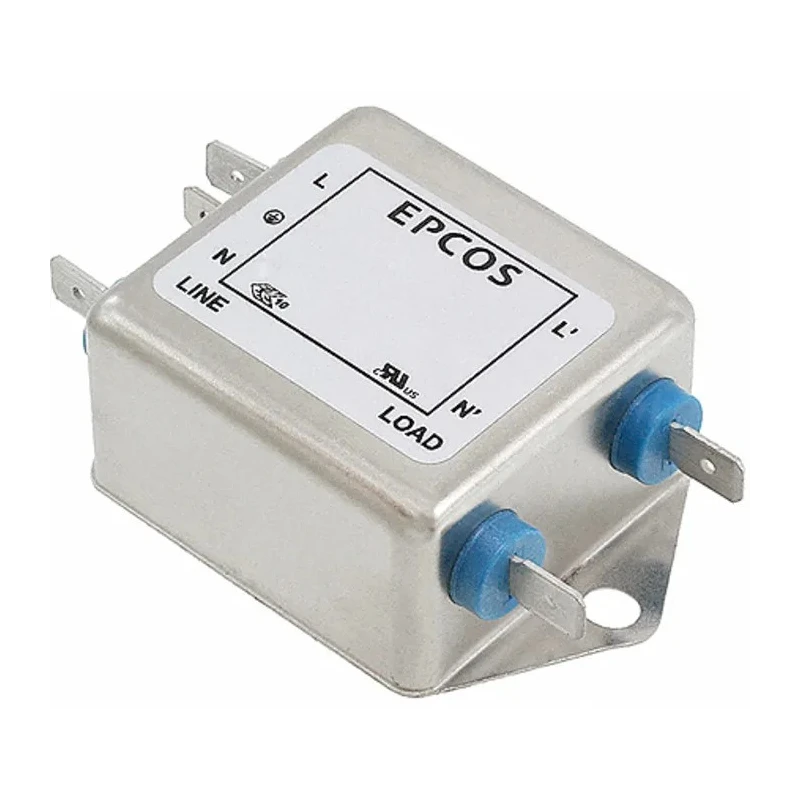

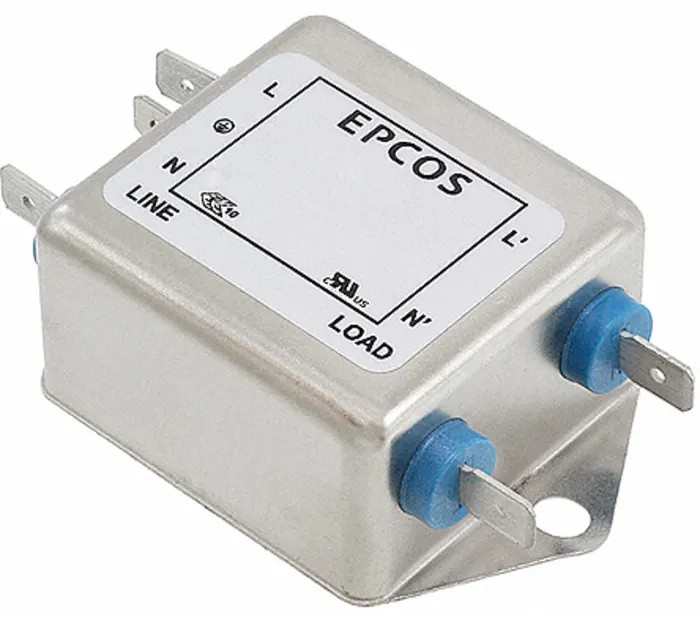

TDK Chassis Mount EMC Filter 3 A 250V ac/dc 50Hz, 60 Hz, Lug Termination, Single Phase B84111F0000M030

TDK B84111F0000M030 chassis mount EMC filter is a high-performance component designed for noise suppression in single-phase electrical systems. Rated for a maximum current of 3 A and maximum voltage of 250V ac/dc, it operates efficiently at frequencies of 50 Hz and 60 Hz. Its lug termination style offers reliable and secure connectivity, facilitating easy installation on equipment chassis.

This filter incorporates a capacitance of 2μF and inductance of 2mH, providing optimal electromagnetic compatibility (EMC) by reducing conducted interference effectively in power line filters. It is engineered to function within a wide temperature range from -25°C minimum operating temperature to 100°C maximum, ensuring stable performance under various environmental conditions.

The compact design, measuring 35mm in length, 26mm in height, and 43.5mm in depth, allows for space-efficient mounting. A leakage current rating of 0mA confirms that it does not contribute to power loss or unwanted electrical noise leakage. Its polyurethane potting rated UL 94 V-0 ensures robust insulation and flame retardancy, enhancing durability for industrial applications.

Certified to UL1283 standards, this EMC filter meets strict safety and quality requirements. It is widely used in switched mode power supplies for telecommunications and data systems, providing effective protection against electromagnetic interference (EMI). The filter contains a single stage and supports operation at both 50Hz and 60Hz frequency levels.

The filter features a lug termination style for secure connections. Compact chassis mount design simplifies installation. Capacitance of 2μF and inductance of 2mH enhance noise suppression. Operates reliably between -25°C and 100°C maximum temperature.

Zero leakage current ensures efficient operation. Dimensions include length 35mm, height 26mm, and depth 43.5mm for space-saving integration. UL1283 standard certified for safety and quality assurance. Polyurethane potting with UL 94 V-0 flammability rating provides durability.

Suitable for switched mode power supplies in telecom and data systems. Manufactured in China ensuring quality production standards.

This EMC Filter is ideal for industrial electronic components, power lines, and electrical equipment requiring high reliability and electromagnetic interference filtering. It ensures compliance with international approvals such as ENEC10, UL, and cUL, making it suitable for global applications in industrial, telecom, and data infrastructures.
