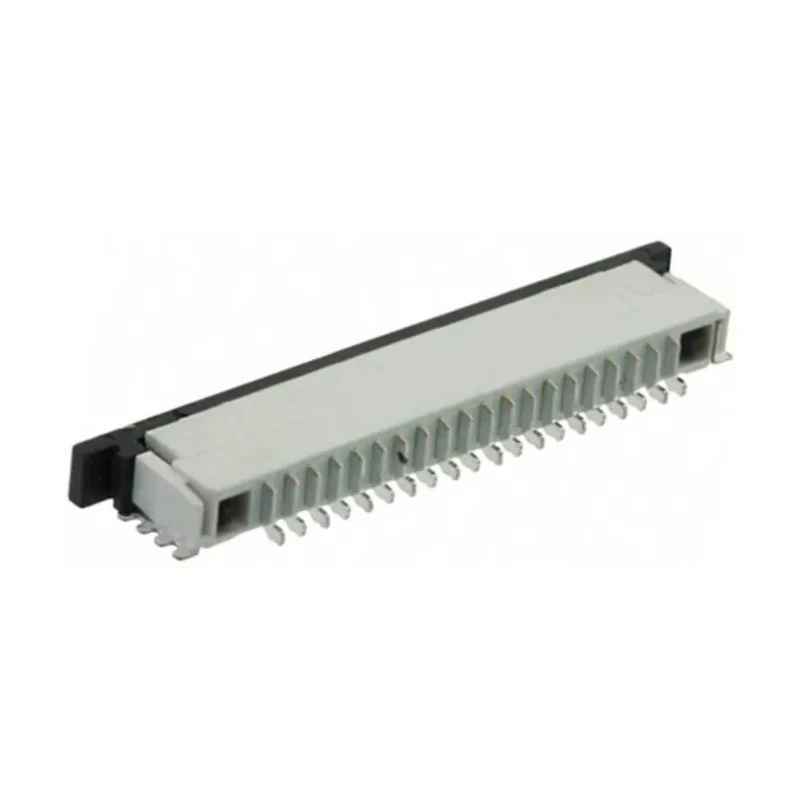

TE Connectivity FPC 1 mm Pitch 24 Way Right Angle Female FPC Connector, Solder 2-84952-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Compact design with 1 mm pitch and 24 contacts for precise electronic connections.
- Right angle orientation and female connector type suitable for space-constrained PCB layouts.
- Solder termination ensures strong mechanical and electrical bonding with PCB.
- ZIF (Zero Insertion Force) locking mechanism reduces wear and improves mating cycles.
- Constructed from phosphor bronze contacts plated with tin for enhanced durability.
- Liquid crystal polymer housing provides excellent thermal and chemical resistance.
- Rated for 1A current and 200V AC voltage suitable for low power applications.
- Operating temperature range from -40°C to 85°C fits diverse industrial environments.
Product Description
TE Connectivity 2-84952-4 FPC Connector is a high-quality 24-way female connector with a 1 mm pitch, designed for right angle PCB mounting. It features solder termination and a Zero Insertion Force (ZIF) locking mechanism that ensures easy cable insertion and reliable connections without the need for additional tooling.
This connector uses phosphor bronze contacts with tin plating to provide excellent durability and electrical performance. The housing is made from liquid crystal polymer, offering robust mechanical strength and resistance to high temperatures and chemicals.
Rated for 1A current and 200V AC voltage, it is suitable for a variety of low power electronic devices and industrial applications. Its operating temperature range of -40°C to 85°C makes it ideal for use in harsh environments.
The right angle orientation and bottom contact position optimize PCB space usage, making it a preferred choice for compact electronic assemblies. The slide lock actuator enhances security by preventing accidental disconnections.
Common applications include handheld scanners, set-top boxes, PCs and peripherals, business and industrial equipment, and medical devices. This connector enhances signal routing where traditional wire-to-board connectors are too large.
Compact design with 1 mm pitch and 24 contacts. ZIF locking mechanism with slide lock actuator for secure connections. Solder tabs increase retention on PCB boards. Phosphor bronze contacts with tin plating. Liquid crystal polymer housing for durability.
Rated 1A current and 200V AC voltage. Operating temperature from -40°C to 85°C. Right angle female connector with bottom contact position. Ideal for industrial, medical, and consumer electronics applications. Explore EnvMart for a wide range of reliable connectors and FPC Connectors to meet various industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 1 mm pitch and has 24 contacts, making it suitable for precise electronic connections.
It uses solder termination, ensuring strong mechanical and electrical bonding with the PCB.
The connector is rated for a current of 1A and a voltage of 200V AC, suitable for low power applications.
It features phosphor bronze contacts plated with tin for durability, and the housing is made from liquid crystal polymer, providing excellent thermal and chemical resistance.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse industrial environments.
This connector has a right angle orientation with a bottom contact position, optimizing PCB space usage.
The Zero Insertion Force (ZIF) locking mechanism allows for easy cable insertion and ensures reliable connections without the need for additional tooling.
Common applications include handheld scanners, set-top boxes, PCs and peripherals, business and industrial equipment, and medical devices.
This connector is designed for surface mounting, which is common in compact electronic assemblies.
This model has 1 row, which is typical for connectors designed for space-constrained applications.
The slide lock actuator enhances security by preventing accidental disconnections, ensuring a stable connection.
The connector is manufactured in India, reflecting its global supply chain.
