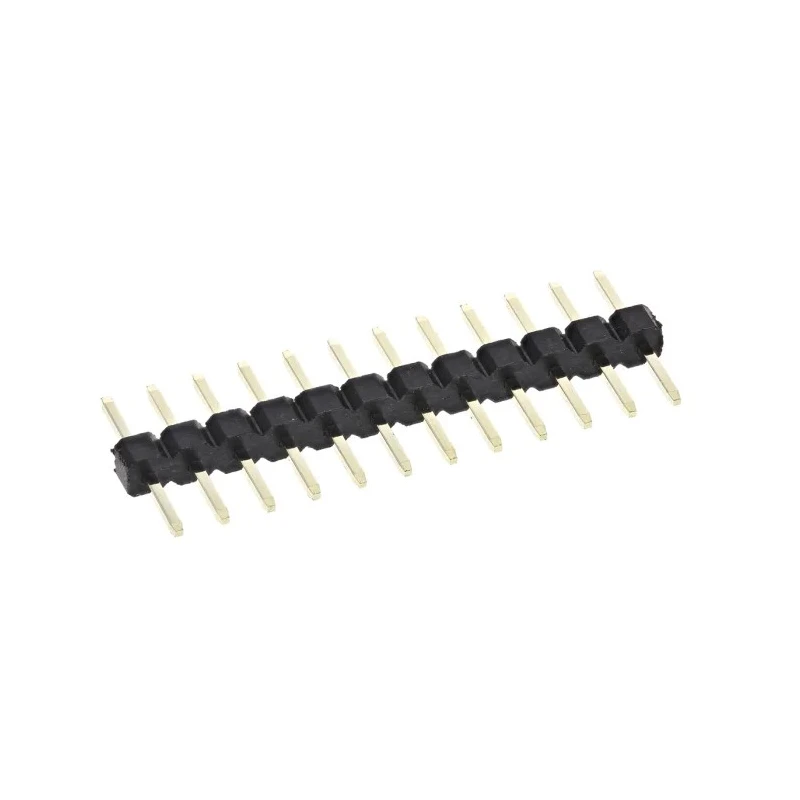

HARWIN M22 Series Straight Through Hole Pin Header 12 Contacts 2 mm Pitch 1 Row Unshrouded M22-2011205
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-2011205 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.4mm |
| Mating Pin Length | 3.5mm |
Key Features
- Manufactured with high temperature nylon housing suitable for reflow soldering.
- Phosphor bronze contacts plated in gold ensure excellent conductivity and corrosion resistance.
- Designed as a straight orientation, through-hole mount pin header with a 3.4 mm tail pin length.
- Supports up to 1A current and operates within -40°C to 105°C temperature range.
- Mates with M22 series sockets, housings, and jumpers for versatile applications.
- Compact 2 mm pitch and 12 contact single-row configuration for embedded PCBs and motherboards.
- Unshrouded style for easy access and flexibility in PCB design layouts.
- Suitable for consumer electronics, communications, industrial monitoring, and personal computing.
Product Description
HARWIN M22-2011205 is a high-quality straight through hole pin header connector featuring 12 contacts arranged in a single row with a 2 mm pitch, unshrouded design, and rated for up to 1A current. This pin header is constructed with a high temperature nylon housing capable of withstanding reflow soldering processes, making it ideal for modern PCB assembly techniques.
The contact material is phosphor bronze plated with gold to provide excellent electrical conductivity and reliability under varying environmental conditions. With a tail pin length of 3.4 mm and mating pin length of 3.5 mm, it ensures a secure and precise fit with corresponding M22 series sockets and jumpers.
This header connector supports operating temperatures from -40°C up to 105°C and voltage up to 500V, suitable for demanding applications in embedded PCs, industrial electronics, consumer devices, and communication equipment. The unshrouded layout offers design flexibility and straightforward accessibility for soldering and wiring.
Applications include large electronic systems, industrial monitoring, drives and controls, personal computing, and consumer electronics. Its versatility and standard pitch make it an established component in the electronics manufacturing sector.
High-temperature nylon housing tolerates reflow soldering. Gold plated phosphor bronze contacts for reliability. Single row, 12 contacts at 2 mm pitch. Straight through hole mount design. Rated for up to 1A current and 500V voltage.
Operating temperature range from -40°C to 105°C. Compatible with M22 series sockets and jumpers. Ideal for embedded PCBs, communications, and industrial applications. Unshrouded for easy access and customization. Explore more connectors in the PCB Pin Header category at EnvMart for all your industrial and electronic component needs.
