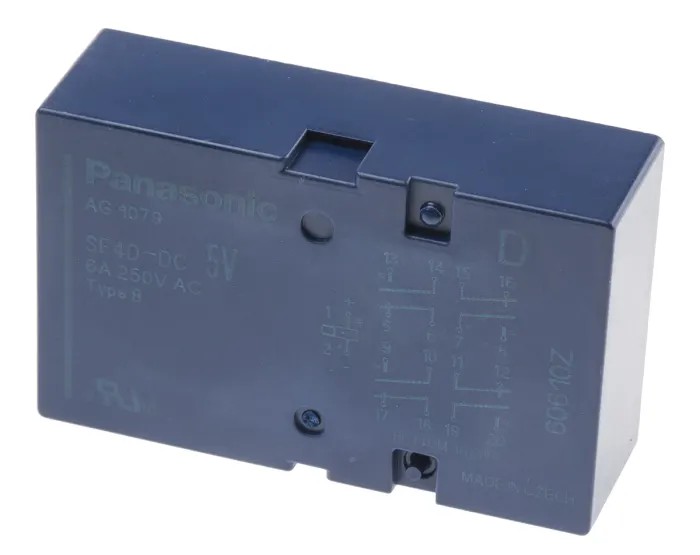

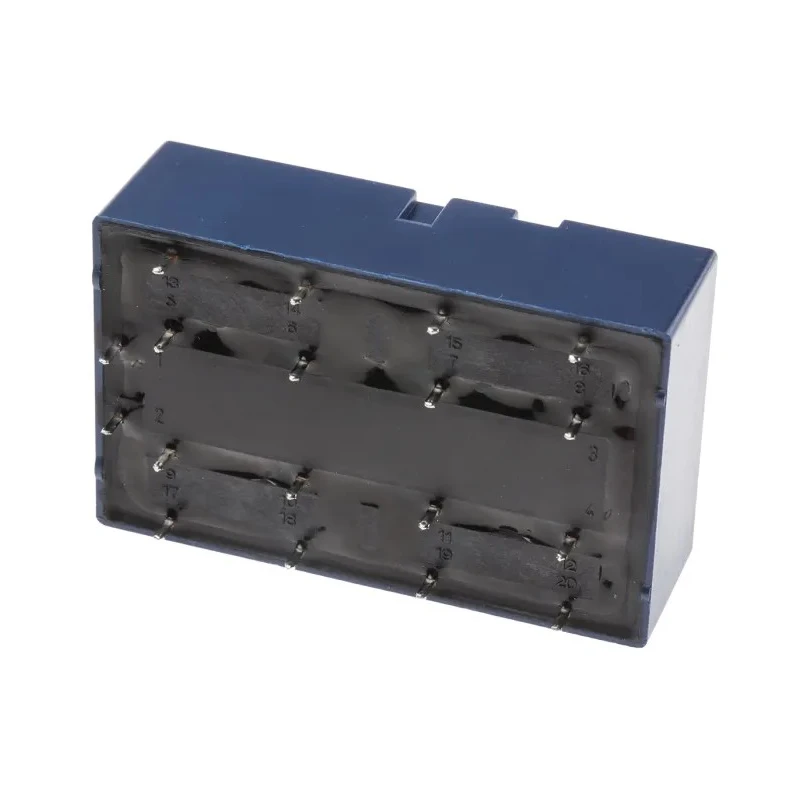

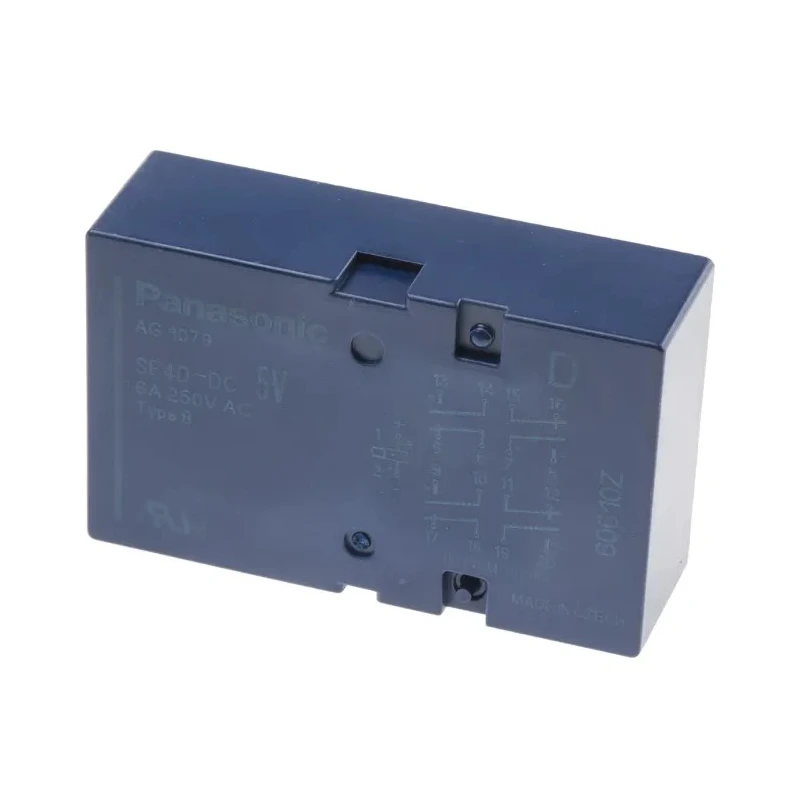

Panasonic PCB Force Guided Relay, 5V DC Coil Voltage, 4-Pole, 4 NO/4 NC SF4D5D
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Panasonic |
| Height | 16.5mm |
| Length | 53.3mm |
| Model | SF4D5D |
| Depth | 33mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SF4D |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4 NO/4 NC |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 4 |
| Coil Resistance | 50Ω |
| Coil Power | 500mW |
| Isolation Coil To Contact | 2.5kVrms |
| Minimum switching voltage - current | 10V - 10mA |
| Panasonic PCB Non-Latching Relay, 24V dc Coil, 3A Switching Current, DPDTBrand | Panasonic |
Key Features
- Forcibly guided contacts for enhanced safety in industrial applications.
- PCB mount type suitable for compact electronic assemblies.
- Gold-plated contact material for superior conductivity and corrosion resistance.
- Coil resistance of 50 ohms and power consumption of 500mW.
- Supports maximum switching voltage of 400V and switching frequency up to 10Hz without load.
- Operating temperature range from -40°C to 70°C, accommodating harsh environments.
- Solder terminal type ensures secure and reliable electrical connections.
- High insulation rating of 2.5kVrms between coil and contact.
Product Description
Panasonic SF4D5D PCB Force Guided Relay is a monostable, polarized safety relay designed for reliable electrical switching with forced guided contacts. Featuring a 5V DC coil and a 4-pole configuration that supports 4 normally open (NO) and 4 normally closed (NC) contacts, it ensures secure operation in critical applications.
Constructed for PCB mounting, this relay offers compact installation with dimensions of 53.3mm length, 33mm depth, and 16.5mm height. The gold-plated contacts provide excellent conductivity and resistance to corrosion, improving operational longevity.
With a coil resistance of 50 ohms and power rating of 500mW, it operates efficiently within an ambient temperature range of -40°C to 70°C. The relay supports a maximum switching voltage of 400V and a switching frequency of up to 10Hz under no load conditions, accommodating various industrial control uses.
The solder terminal type ensures secure electrical connection integrity. An isolation rating of 2.5kVrms from coil to contact enhances safety and system reliability.
This relay series is suitable for use in automation, manufacturing controls, safety interlocks, and signal conditioning circuits requiring reliable, force-guided contacts to meet safety standards.
Forcibly guided contacts for enhanced safety in industrial applications. PCB mount type suitable for compact electronic assemblies. Gold-plated contact material for superior conductivity and corrosion resistance. Coil resistance of 50 ohms and power consumption of 500mW.
Supports maximum switching voltage of 400V and switching frequency up to 10Hz without load. Operating temperature range from -40°C to 70°C, accommodating harsh environments. Solder terminal type ensures secure and reliable electrical connections.
Compact dimensions: length 53.3mm, depth 33mm, height 16.5mm. High insulation rating of 2.5kVrms between coil and contact. Ideal for applications in automation, control systems, signal conditioning, and safety circuits. Explore Panasonic products and Force Guided Relays at EnvMart for reliable industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SF4D5D relay operates with a coil voltage of 5V DC.
This model features a contact configuration of 4 normally open (NO) and 4 normally closed (NC) contacts.
The relay has dimensions of 53.3mm in length, 33mm in depth, and 16.5mm in height.
It supports a maximum switching voltage of 400V.
The operating temperature range is from -40°C to 70°C.
This relay is designed for PCB mounting, making it suitable for compact electronic assemblies.
The coil resistance is 50 ohms.
The power consumption of the relay is 500mW.
It features solder terminals for secure and reliable electrical connections.
The isolation rating between the coil and contact is 2.5kVrms.
This relay is suitable for applications in automation, control systems, signal conditioning, and safety circuits requiring reliable operation.
The relay supports a maximum switching frequency of up to 10Hz without load.
