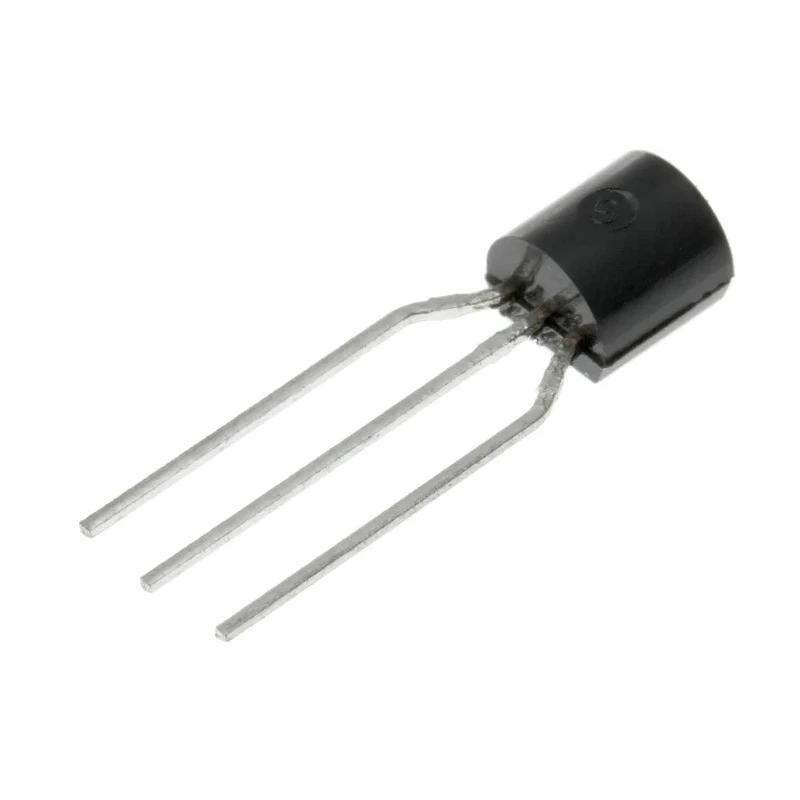

onsemi Transistor NPN 150 mA 50 V 3-Pin TO-92 KSC1815YTA

onsemi KSC1815YTA is a high-quality NPN bipolar transistor designed for small signal amplification and switching applications. Featuring a maximum DC collector current of 150 mA and a maximum collector emitter voltage of 50 V, this device delivers reliable performance in diverse electronic circuits. The transistor package is TO-92, a compact and widely used 3-pin through-hole format, facilitating easy PCB mounting and prototyping.

The transistor has a maximum collector base voltage of 60 V, a maximum transition frequency of 1 MHz, and a power dissipation of 400 mW, making it suitable for switching and low-frequency amplification tasks. With a minimum DC current gain of 25, it ensures efficient signal amplification while maintaining thermal stability up to 125°C.

Physical dimensions include a width of 4.19 mm, height of 20.95 mm, and length of 5.2 mm. Though it does not meet automotive standards, it is an ideal choice for general electronic components, home electronics, power connectors, and semiconductor projects requiring a robust small-signal NPN transistor.

This transistor features a maximum collector base voltage of 60 V, suitable for various low power switching applications. It has a maximum transition frequency of 1 MHz, enabling moderate speed switching. The maximum power dissipation rating is 400 mW, suitable for small-signal use.

The device has a minimum DC current gain (hFE) of 25, ensuring efficient amplification. The maximum operating temperature is 125°C, supporting reliability in typical ambient conditions. The transistor uses through-hole mounting and has a compact TO-92 package for easy PCB integration.

Dimensions are approximately 4.19 mm width, 20.95 mm height, and 5.2 mm length. This transistor does not comply with automotive standards but is ideal for general electronics and electronic component assembly.

This product is suitable for use in industrial, laboratory, manufacturing, and general electronic development environments. For more options in Bipolar Transistors and semiconductor components, explore the extensive range available in the Electronics category on EnvMart.
