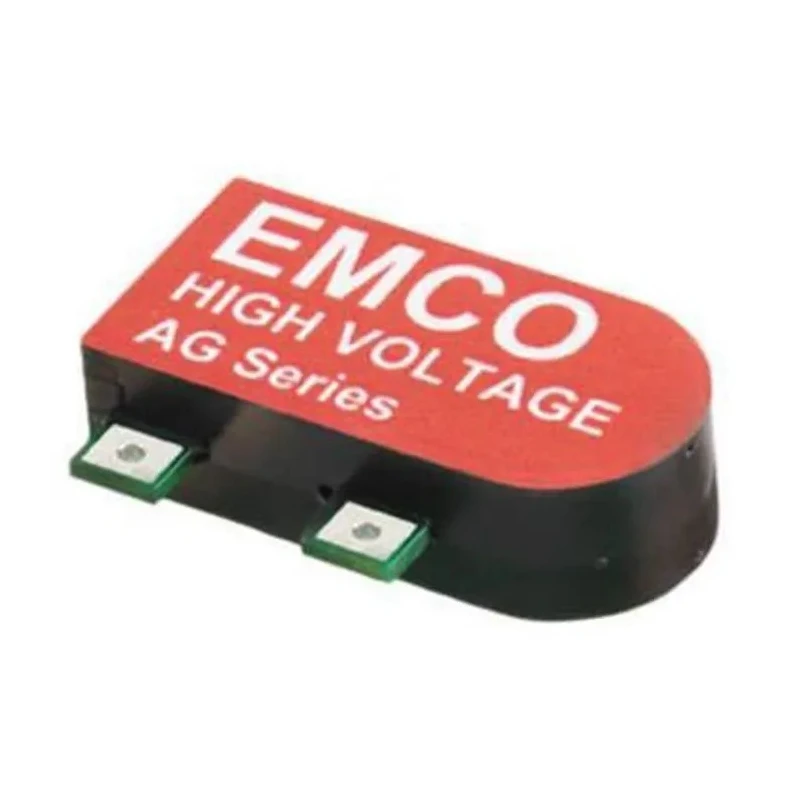

XP Power AG Series DC/DC Converter 250V DC Output, 5 mA, 12V DC Input, Surface Mount, 1W, -25°C to 75°C AG025P-12

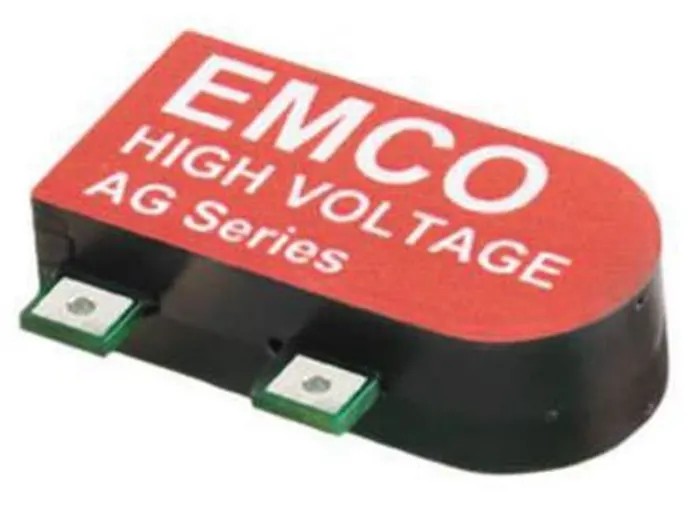

XP Power AG025P-12 is an advanced DC/DC Converter in the AG series that provides a high voltage isolated output of 250V DC at a current of 5mA from a standard 12V DC input. This surface mount device delivers 1 watt of maximum output power with a compact footprint measuring 23.37mm in length, 17.53mm in width, and 6.35mm in depth, weighing just 5.7 grams. It operates efficiently in temperature ranges from -25°C up to a maximum of 75°C, ideal for demanding industrial and electronic applications.

The converter uses a quasi-sinewave oscillator to maintain proportional input-output characteristics, resulting in minimal ripple and noise of only 0.9% peak-to-peak, ensuring stable and clean power conversion. Galvanic isolation of 500V offers robust protection, making it suitable for sensitive circuits and measurement devices requiring isolation between input and output.

This device offers one output channel, requires no external components, has low capacitance between input and output, and exhibits very low leakage current, thereby promoting energy efficiency and signal integrity. It includes a minimum 1-minute short circuit protection feature and does not require a minimum load to operate, enhancing system reliability and ease of use.

Typical applications include precision instrumentation such as avalanche photodiodes, capacitor charging modules, electrophoresis equipment, photomultiplier tubes, piezoelectric devices, mass spectrometry instruments, and sustaining ion pumps, among other advanced laboratory and industrial uses.

Manufactured in the United States, this XP Power DC/DC Converter complies with UL and RoHS standards, though formal certifications are not explicitly available. Its miniature size and performance make it an excellent solution for electronic circuit designers seeking efficient high-voltage DC power conversion with galvanic isolation.

Ultra miniature design suitable for compact applications. Galvanic isolation rated at 500V for signal protection. Low ripple and noise output enhances performance of sensitive electronic circuits. One output channel and surface mount package for easy PCB assembly.

Temperature range of -25°C to 75°C supports operation in harsh environments. 1 watt maximum output power suitable for low-power applications. Robust short circuit protection and no minimum load requirement ensures reliability.

Ideal for use in medical, scientific, industrial, and instrumentation applications. Manufactured in the United States ensuring quality and reliability. Explore the DC/DC Converter category on EnvMart for a wide selection of power conversion solutions designed for industrial, laboratory, and electronic engineering needs.
