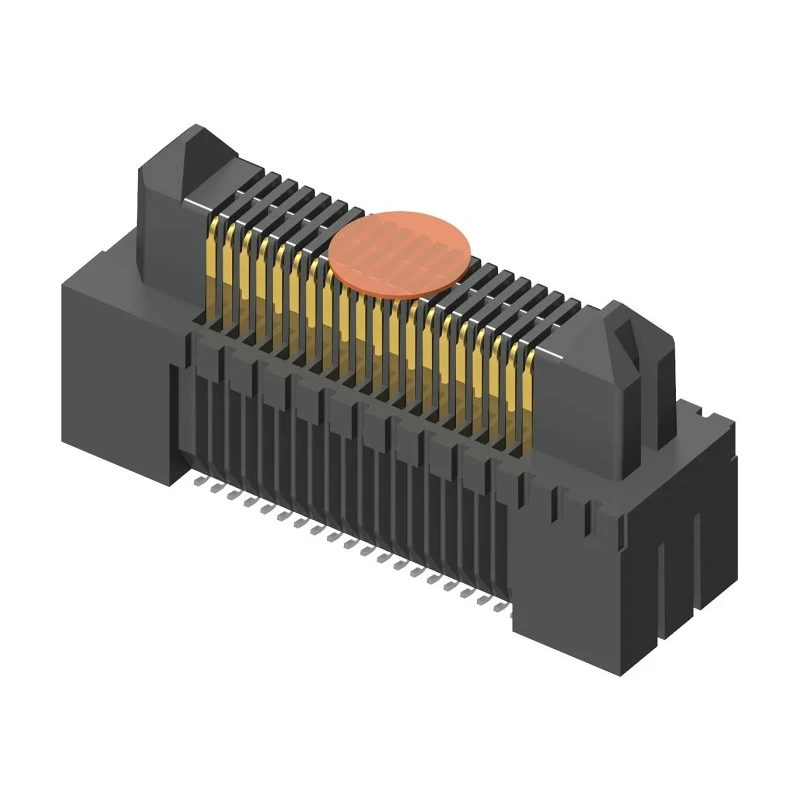

Samtec ERM5 Series Straight Surface PCB Header, 20 Contact(s), 0.5 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.5A |
| Model | ERM5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features 20 gold-plated phosphor bronze contacts for reliable connectivity.
- Compact 0.5 mm pitch suitable for high-density PCB layouts.
- Constructed with durable liquid crystal polymer housing for thermal stability.
- Supports current rating up to 1.5A with operating voltage of 194V.
- Designed with Edge Rate contacts for high signal integrity and low crosstalk.
- Operates in temperature range from -55°C to 125°C for varied environments.
- Shrouded with straight orientation and surface mount type for easy assembly.
- Ideal for industrial, electronic, and communication applications requiring robust PCB interconnects.
Product Description
Samtec ERM5 ERM5-010-05.0-L-DV-K-TR is a high-performance straight surface PCB header connector featuring 20 contacts arranged in 2 rows with a 0.5 mm pitch. Manufactured with a liquid crystal polymer housing and gold-plated phosphor bronze contacts, this connector ensures excellent durability and electrical performance. It supports a current rating of 1.5A and an operating voltage of 194V, suitable for demanding high-speed data transmission up to 28 Gbit/s.
The innovative Edge Rate contact design provides a smooth milled surface, reducing wear and insertion forces, enhancing connector longevity and reliability. This header is shrouded and features male solder termination with a straight orientation and surface mounting technology, making it compatible with a wide range of PCB designs.
Operating temperature spans from -55°C to 125°C, making it suitable for industrial, electronic manufacturing, computing, and communications applications. It is designed to be compatible with Samtec ERF5 series sockets to achieve various mating heights from 7 mm to 12 mm, offering flexible system integration.
Features 20 gold-plated phosphor bronze contacts for reliable connectivity. Compact 0.5 mm pitch suitable for high-density PCB layouts. Constructed with durable liquid crystal polymer housing for thermal stability. Supports current rating up to 1.5A with operating voltage of 194V.
Designed with Edge Rate contacts for high signal integrity and low crosstalk. Operates in temperature range from -55°C to 125°C for varied environments. Shrouded with straight orientation and surface mount type for easy assembly.
Ideal for industrial, electronic, and communication applications requiring robust PCB interconnects.
This PCB Header is a reliable choice for electronic component assembly requiring high-speed performance and long product life. Explore more Samtec connectors and related components at EnvMart for your PCB design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 1.5A.
The operating voltage for this header is 194V.
It features a compact pitch size of 0.5 mm, suitable for high-density PCB layouts.
This connector operates within a temperature range of -55°C to 125°C.
It has a total of 20 contacts arranged in 2 rows.
The housing is made of liquid crystal polymer, and the contacts are made of gold-plated phosphor bronze.
It features a male solder termination type.
This header is shrouded, providing additional protection and ease of use.
It has a straight orientation, designed for surface mounting.
It is designed for board-to-board connector systems and is compatible with Samtec ERF5 series sockets.
The Edge Rate contact design enhances signal integrity and reduces crosstalk, improving overall performance.
The country of origin for this model is India.
