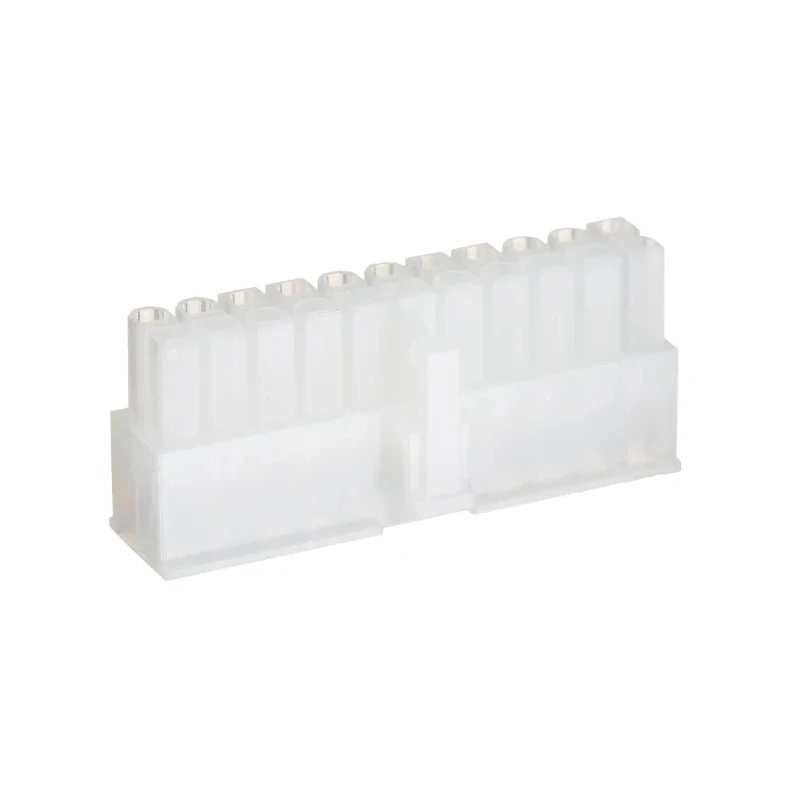

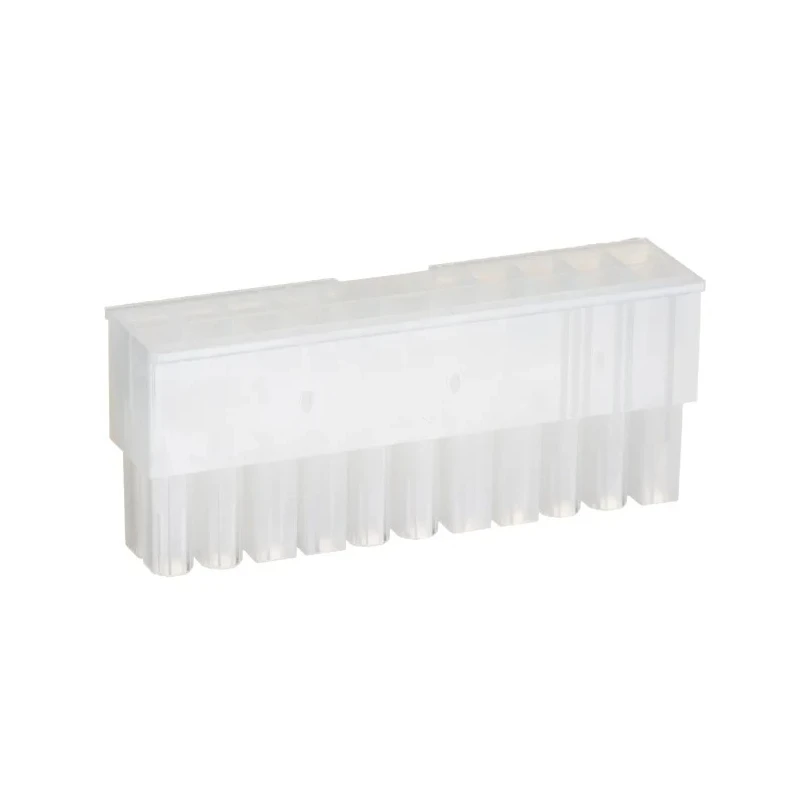

Molex Mini-Fit Female Connector Housing, 4.2 mm Pitch, 22 Way, 2 Row Straight 39-01-2220
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 47.4mm |
| Width | 19.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals |
| Number of Contacts | 22 |
| Connector Gender | Female |
Key Features
- Supports up to 13A current per contact for reliable power transmission.
- Constructed from durable nylon material for long-lasting performance.
- Straight orientation simplifies cable management and installation.
- Polarized design prevents misalignment during mating.
- Flammability rated at 94V-2 for enhanced safety compliance.
- Compatible with 45750 Mini-Fit Plus HCS and 5556 Mini-Fit Female Crimp Terminals.
- Low-halogen construction contributes to environmental compliance.
- Operating temperature range from -40 to +105 °C for diverse applications.
Product Description
Molex 39-01-2220 Mini-Fit Female Connector Housing features a 4.2 mm pitch with 22 contacts across 2 rows, designed for cable mounting applications requiring reliable electrical connections. Made from nylon, this housing ensures durability and robustness in demanding environments.
Supporting up to 13A current per contact, it provides dependable power transmission for various industrial and automation uses. The straight body orientation facilitates effective cable management and easy installation. Its polarized keying ensures correct mating to prevent connection errors.
This housing complies with safety through a flammability rating of 94V-2 and low-halogen construction promoting environmental safety. It is compatible with 45750 Mini-Fit Plus HCS and 5556 Mini-Fit Female Crimp Terminals, specifically suited for 16 AWG wires.
Operating normally within a temperature range from -40 to +105 °C, it fits diverse industrial, electrical, and mechanical applications. With compact dimensions of 47.4 mm length and 19.6 mm width, it is suitable for cable mount assembly environments.
Supports up to 13A current per contact for reliable power transmission. Durable nylon housing material for long lasting usage. Straight orientation for simplified cable routing. Polarized design prevents misalignment during mating.
Flammability rating of 94V-2 enhances operational safety. Compatible with specific Mini-Fit female crimp terminals. Low-halogen construction supports environmental standards. Wide operating temperature range of -40 to +105 °C.
Compact size with 47.4 mm length and 19.6 mm width.
This Connector Housing is ideal for industrial automation, electrical wiring, power transmission, and mechanical applications requiring secure and robust wire connections. For further technical details and compatible components, browse the Electronics & Electricals category on EnvMart for Molex Mini-Fit connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports up to 13A current per contact, ensuring reliable power transmission for various applications.
The housing is constructed from durable nylon material, which contributes to its robustness in demanding environments.
This model features 22 contacts arranged in 2 rows, providing ample connectivity options.
It is designed for cable mounting applications, facilitating effective installation.
It is compatible with 45750 Mini-Fit Plus HCS and 5556 Mini-Fit Female Crimp Terminals, specifically for 16 AWG wires.
The dimensions are 47.4 mm in length and 19.6 mm in width, making it compact for various applications.
It has a flammability rating of 94V-2 and low-halogen construction, promoting enhanced safety and environmental compliance.
The connector housing features a straight orientation, which simplifies cable management and installation.
The country of origin for this connector housing is India.
It is ideal for industrial automation, electrical wiring, power transmission, and mechanical applications requiring secure wire connections.
