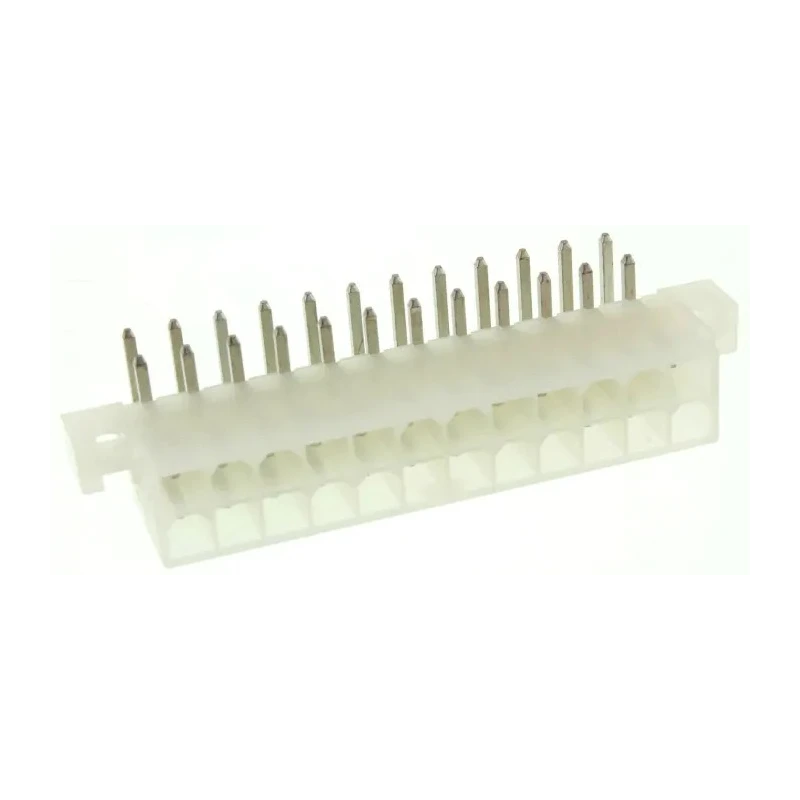

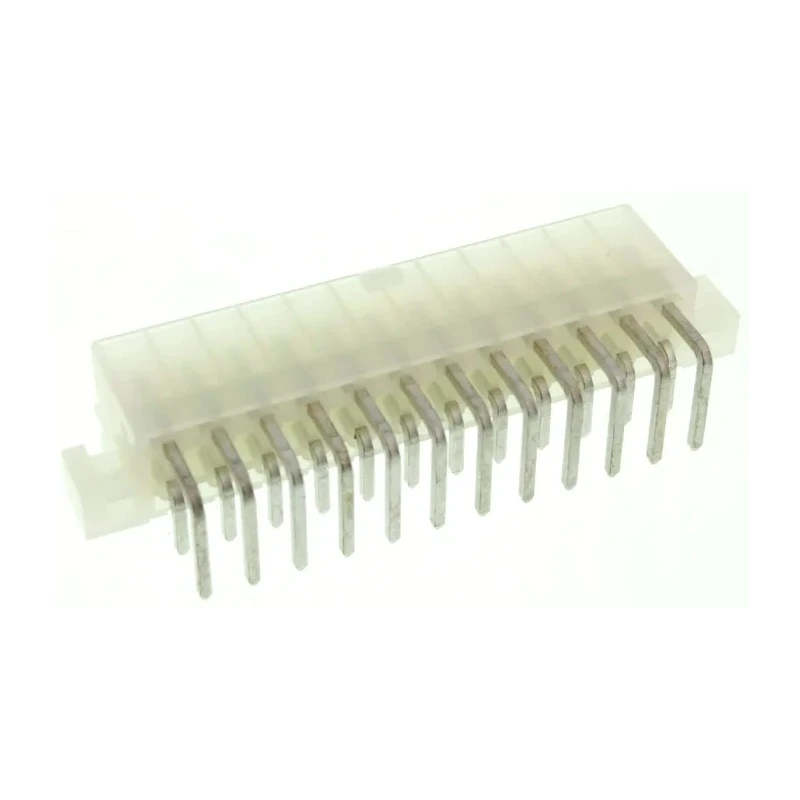

Molex Mini-Fit Jr. Series Right Angle Through Hole PCB Header 24 Contacts 4.2 mm Pitch 2 Row Shrouded 39-29-1248
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports up to 9A current per circuit ensuring reliable power delivery.
- Features fully isolated and scoop-proof terminals to protect against damage and arcing.
- Incorporates polarization and keying features to prevent mismating and ensure correct connection.
- Positive locking mechanism with audible click confirms secure mating and prevents accidental disconnects.
- Suitable for use in power connectors, wire-to-board applications, industrial automation, servers, and networking equipment.
- Constructed with nylon housing and brass contacts plated with tin for durability and corrosion resistance.
- Right angle orientation with 2 rows and shrouded design provides compact and safe PCB mounting.
- Operates over a wide temperature range from -40°C to 105°C ensuring performance in harsh environments.
Product Description
Molex 39-29-1248 Mini-Fit Jr. Series Right Angle Through Hole PCB Header with 24 contacts and 4.2 mm pitch is a robust connector designed for high current, high density wire-to-board applications. It is ideal for industrial, electronic, and automation environments.
This connector supports up to 9A current per circuit, making it suitable for demanding power delivery systems. The fully isolated terminals protect against debris and arcing, while scoop-proof housings prevent damage during mating.
Polarization and keying features ensure the connector cannot be misaligned or mismated with its receptacle. A positive locking mechanism with an audible click provides confirmation of a secure connection and reliability in environments subject to vibrations and shocks.
The right angle orientation and 2-row configuration with a 4.2 mm pitch provides a compact footprint on PCBs. The nylon housing offers durability and resistance to wear, and the brass contacts plated with tin deliver excellent conductivity and corrosion resistance.
Operating temperature range from -40°C to 105°C allows use in varied industrial and electronics conditions. Applications include consumer white goods, office equipment, industrial automation, rack servers, routers, and switches.
Supports up to 9A current per circuit. Fully isolated terminals for protection against arcing. Scoop-proof housing prevents contact damage during mating. Polarization and keying prevent misalignment and mismating. Positive locking mechanism with audible click for mating confirmation.
Constructed with nylon housing and brass, tin-plated contacts. Right angle, 2-row, 4.2 mm pitch configuration. Wide operational temperature from -40°C to 105°C.
This Molex Mini-Fit Jr. PCB header fits industry standards and is manufactured in China, ensuring quality and performance consistency. Browse more PCB Headers and connectors on EnvMart for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports up to 9A current per circuit, making it suitable for demanding power delivery systems.
The pitch of the contacts is 4.2 mm, which allows for a compact arrangement on PCBs.
The housing is made of nylon, and the contacts are brass plated with tin for conductivity and corrosion resistance.
It operates over a wide temperature range from -40°C to 105°C, suitable for various industrial and electronic environments.
This model features 24 contacts, arranged in a 2-row configuration.
It uses a solder termination type, which is common for through hole applications.
It incorporates polarization and keying features to prevent mismating, ensuring correct connection.
It is suitable for use in power connectors, wire-to-board applications, industrial automation, servers, and networking equipment.
This model has a right angle orientation, which facilitates compact PCB mounting.
It features a positive locking mechanism with an audible click to confirm secure mating and prevent accidental disconnects.
This connector is manufactured in China, ensuring quality and performance consistency.
The voltage rating for this model is 600V, making it suitable for high voltage applications.
