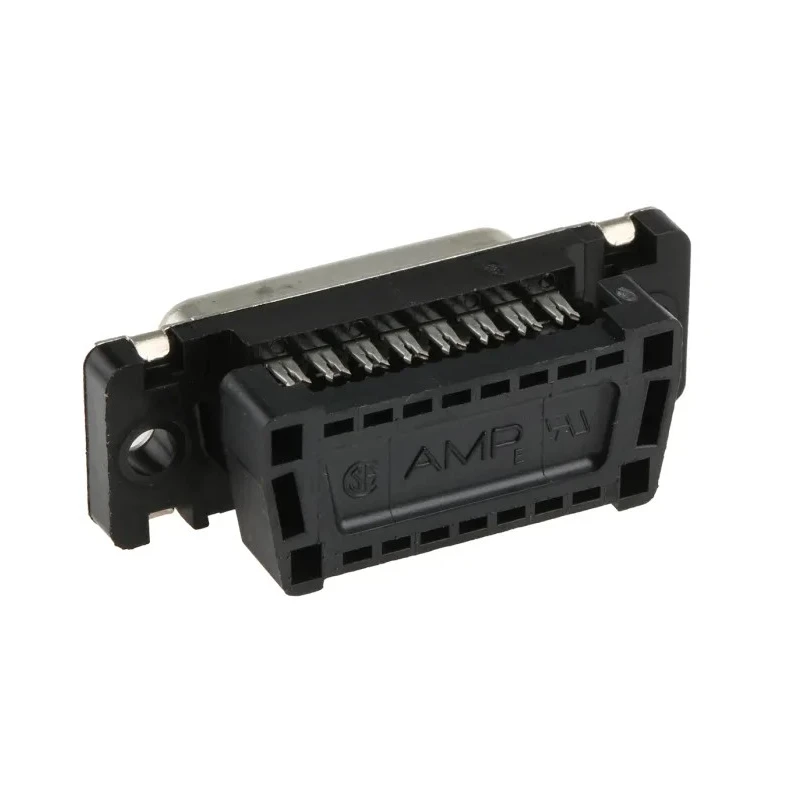

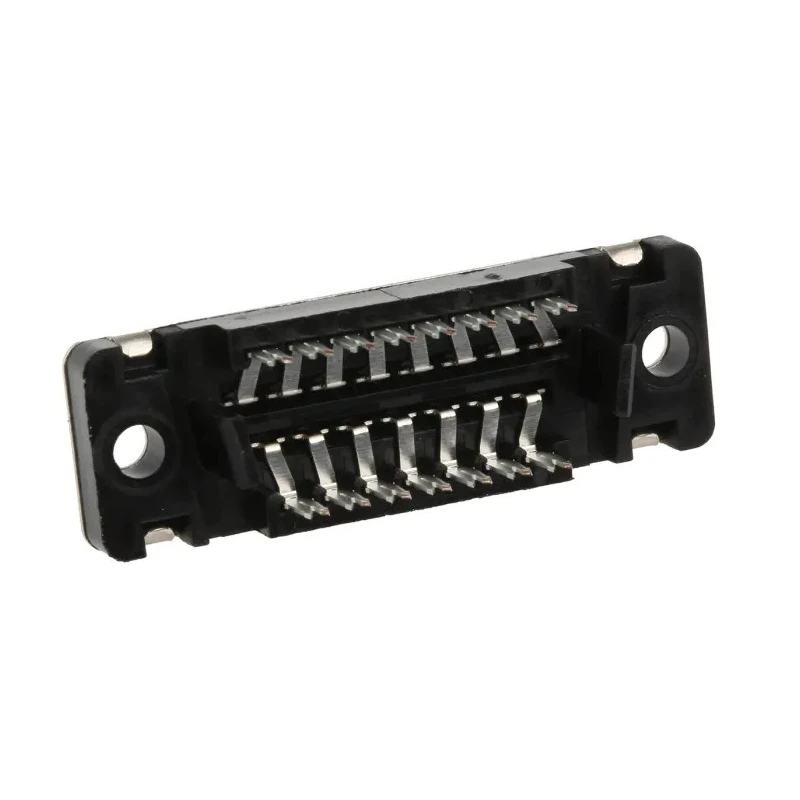

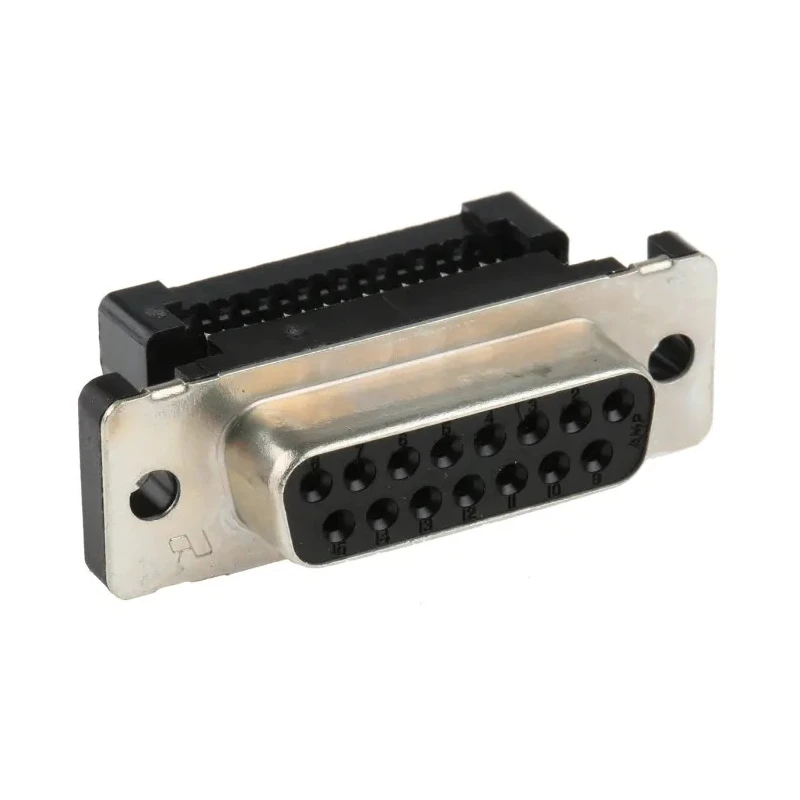

TE Connectivity Amplimite HDF-20 15 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Female 1658612-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| RS PRO 15 Way Straight 1.27 mm Pitch Cable D-Sub Connector FemaleBrand | RS PRO |
Key Features
- The connector has 15 contacts with a 2.76 mm pitch.
- It features a right-angle orientation suitable for space-saving installations.
- Housing is steel with gold over nickel plated phosphor bronze contacts for excellent conductivity.
- Supports up to 1.25 A current and 250 V voltage rating.
- Termination type is IDC, compatible with 28 AWG and 26 AWG cables.
- Operating temperature ranges from -55°C to 105°C for reliable performance.
- Meets UL 94 V-0 flammability standard and has a low-profile metal shell.
- Compatible with HD-20 Board Mount, HDP, and HDE D-sub connectors in sizes 1-4.
Product Description
TE Connectivity model 1658612-3 is a high-quality Amplimite HDF-20 series low profile IDC metal shell cable D-Sub connector with 15 female contacts and a 2.76 mm pitch. Featuring a right angle orientation, this connector facilitates cable mounting in constrained spaces and industrial settings.
The steel housing combined with gold over nickel plated phosphor bronze contacts ensures durability and superior electrical connectivity. It supports a current rating of 1.25 A and voltage rating up to 250 V.
Designed for use with flat ribbon cables of 28 AWG and 26 AWG sizes having 1.27 mm centers, termination is by IDC method, ensuring reliable and easy assembly. The connector operates efficiently over a broad temperature range from -55°C minimum up to 105°C maximum, conforming to UL 94 V-0 flame retardant standards.
This Amplimite HDF-20 connector mates with HD-20 Board Mount, HDP, and HDE connectors, sizes 1-4, offering versatile interoperability across electronic and power connection systems.
Ideal for use in industrial, laboratory, manufacturing, and commercial electronic assembly where reliable, compact, and robust cable connectors are required. The connector supports 15 contacts with a precise 2.76 mm pitch.
Gold over nickel plating on phosphor bronze contacts ensures low contact resistance and corrosion resistance. Right angle orientation enables efficient layout in PCB or wiring harness assemblies. Steady performance in operating temperatures from -55°C to 105°C.
Compliance with UL 94 V-0 rating offers enhanced safety against flame hazards. Compatible with various D-Sub Connector series adding flexible connectivity options. Metal shell provides mechanical robustness and EMI shielding.
Termination via IDC supports fast and reliable cable connections. Discover the TE Connectivity Amplimite HDF-20 connectors range at EnvMart, ideal for professional electronic and power connector applications across multiple industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.25 A and a voltage rating of 250 V.
The connector features a pitch of 2.76 mm for its 15 contacts.
The housing is made of steel, and the contacts are phosphor bronze with gold over nickel plating for enhanced conductivity.
It operates efficiently within a temperature range of -55°C to 105°C.
This connector uses an IDC (Insulation Displacement Connector) termination type, suitable for flat ribbon cables.
It is compatible with 28 AWG and 26 AWG cables.
It meets the UL 94 V-0 flammability standard, ensuring safety against flame hazards.
This model features a right-angle orientation, making it suitable for space-saving installations.
It has a total of 15 female contacts.
It is compatible with HD-20 Board Mount, HDP, and HDE D-sub connectors in sizes 1-4.
The housing is a low-profile metal shell designed for mechanical robustness and EMI shielding.
The connector is manufactured in India.
