| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | FS1JW TRTB |
| Width | 2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 1.8μs |

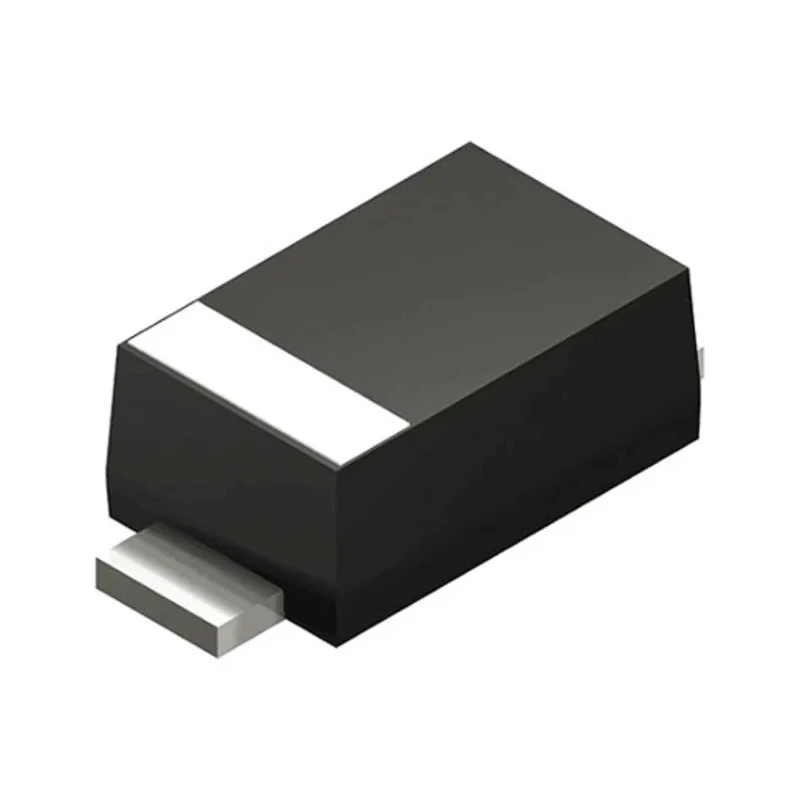

Fagor Electronica FS1JW TRTB is a single diode designed for electronic applications requiring a robust and efficient surface mount component. It operates with a maximum continuous forward current of 1.5 A and a peak reverse repetitive voltage of 600 V, making it suitable for power rectification and protection functions in electronics.
The diode is housed in a SOD-123W package, which offers a compact footprint ideal for space-sensitive circuit board layouts. It supports operating temperatures from -55°C to 150°C, ensuring it meets industrial and automotive environmental requirements.
This diode features a low forward voltage of 1.1 V which minimizes power losses during conduction. Its peak non-repetitive forward surge current of 30 A provides durability against transient current spikes encountered in power cycling.
With a fast peak reverse recovery time of 1.8 µs and a low peak reverse current of 50 µA, the FS1JW TRTB diode is capable of high efficiency and low noise performance in switching applications.
Certified to the automotive AEC-Q101 standard, this diode is an excellent choice for automotive electronic circuits and other high-reliability systems. This diode features a SOD-123W package for surface mount applications.
It supports high-voltage operation up to 600 V peak reverse voltage. The maximum forward current is rated at 1.5 A continuous operation. Forward voltage drop is 1.1 V minimizing conduction losses. Operating temperature range supports industrial and automotive environments.
Peak surge current rating of 30 A for transient robustness. Low peak reverse current leakage of 50 µA. Fast reverse recovery time of 1.8 µs for efficient switching. Compliant with AEC-Q101 automotive standard. Compact size enables flexible PCB design with 3.1 x 2 x 1.2 mm dimensions.
This product is ideal for use in industrial, automotive, and commercial electronics applications including power supplies, voltage regulation, and protection circuits. It demonstrates reliable electrical performance in compact form factors.
Explore the extensive range of Fagor Electronica semiconductor components and other discrete devices in the electronics and electrical category at EnvMart for high-quality and reliable solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
