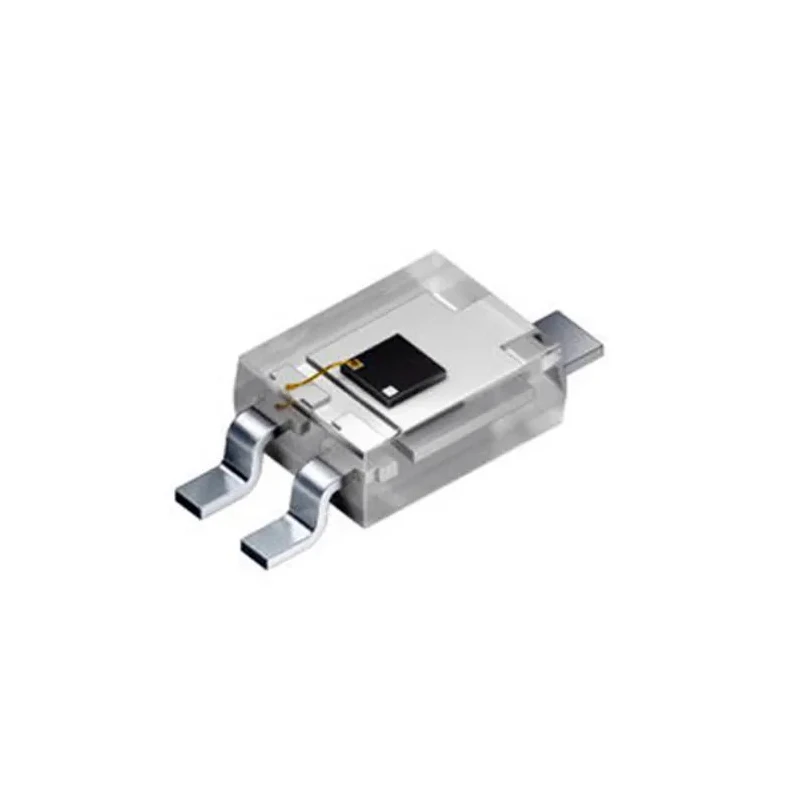

ams OSRAM Smart DIL 120° Visible Light Infrared Ultraviolet Phototransistor Surface 3-Pin DIP Package SFH 3410-Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 1.05mm |
| Length | 2.1mm |
| Model | SFH 3410-Z |
| Packaging | Tape & Reel |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | Smart DIL |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Automotive Standard | AEC-Q102 |
| Peak Wavelength | 600nm |
| Spectrums Detected | Visible Light, Infrared, Ultraviolet |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 20mA |
| Maximum Light Current | 3.2μA |
| Maximum Dark Current | 3nA |
| Collector Emitter Voltage | 5.5V |
| Emitter Collector Voltage | 0.5V |
Key Features
- Detects visible light, infrared, and ultraviolet spectrums for versatile photodetection.
- Features a wide 120° angle of half sensitivity for broad light reception.
- Maximum light current rated at 3.2μA with low dark current of 3nA.
- Operates within the temperature range of -40°C to 100°C for robust performance.
- Compact dimensions with length 2.1mm, width 2.7mm, and height 1.05mm enhance PCB integration.
- Supports a maximum collector current of 20mA and collector-emitter voltage of 5.5V.
- Complies with RoHS standards and AEC-Q102 automotive quality standard.
- Provided in tape & reel packaging to improve manufacturing efficiency.
Product Description
ams OSRAM SFH 3410-Z is a premium Smart DIL series phototransistor designed to detect visible light, infrared, and ultraviolet wavelengths with a peak wavelength of 600nm. Encased in a surface mount 3-pin DIP package, it is highly suitable for precision light sensing applications.
This phototransistor features a 120° angle of half sensitivity, ensuring broad light reception which makes it ideal for ambient light sensing, exposure metering, and backlight dimming in various electronic applications.
Operating over a wide temperature range from -40°C to 100°C, the SFH 3410-Z supports industrial and automotive environments, complying with AEC-Q102 standards. Its robust electrical characteristics include a maximum collector current of 20mA, collector-emitter voltage of 5.5V, and emitter-collector voltage of 0.5V.
The device produces a maximum light current of 3.2μA and maintains an extremely low dark current of 3nA, which enhances sensitivity and reduces noise during light detection.
Physically compact with dimensions 2.1mm length, 2.7mm width, and 1.05mm height, it integrates seamlessly onto printed circuit boards. The product is RoHS compliant and supplied in tape & reel packaging, facilitating automated assembly and consistent placement in production lines.
Its design caters to applications in industrial, automotive, laboratory, measuring instruments, and consumer electronics sectors requiring precise and reliable phototransistor components.
Detects visible light, infrared, and ultraviolet spectrums for versatile photodetection. Wide 120° angle of half sensitivity for broad light reception. Maximum light current of 3.2μA with low dark current of 3nA for sensitive detection.
Operating temperature range from -40°C to 100°C suitable for harsh environments. Compact 3-pin DIP surface mount package with dimensions 2.1mm x 2.7mm x 1.05mm. Meets RoHS compliance and AEC-Q102 automotive standard for quality assurance.
Available in tape & reel packaging suitable for automated manufacturing.
This phototransistor is ideal for integration into industrial machines, automotive sensors, lab instruments, and electronic measuring devices. Explore more Phototransistor components and optoelectronic products to meet your design requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current for this model is 20mA.
It features a 120° angle of half sensitivity, allowing for broad light reception.
This phototransistor operates within a temperature range of -40°C to 100°C.
The dimensions are 2.1mm in length, 2.7mm in width, and 1.05mm in height.
It can detect visible light, infrared, and ultraviolet spectrums.
The maximum light current is rated at 3.2μA.
It is provided in tape & reel packaging to enhance manufacturing efficiency.
The collector-emitter voltage is rated at 5.5V.
This model complies with the AEC-Q102 automotive quality standard.
The maximum dark current is 3nA, which enhances sensitivity and reduces noise.
It is designed for surface mount with a 3-pin DIP package.
The country of origin for this phototransistor is India.
