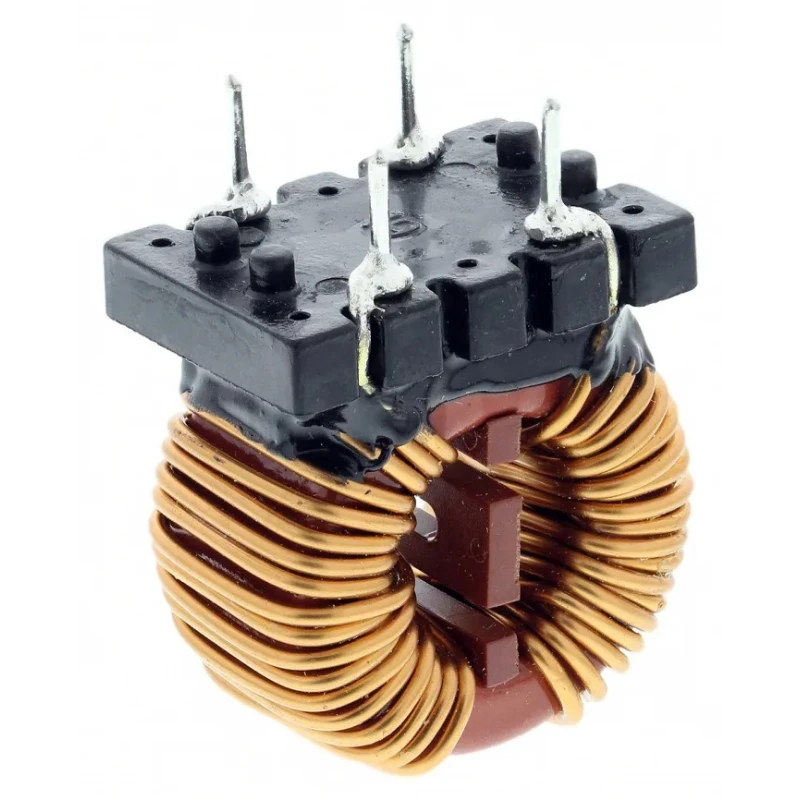

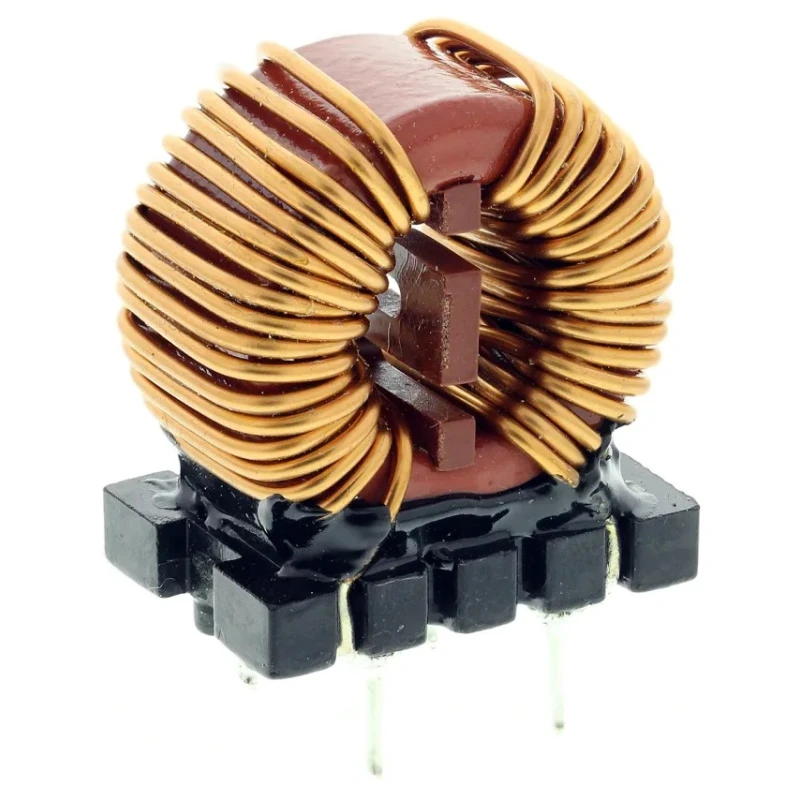

Wurth Elektronik 2.2 mH Manganese Zinc Leaded Inductor, 6 A IDC, 20 mΩ RDC, 250V AC, Radial Mount, WE-CMB 744824622
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 27.5mm |
| Brand | Wurth Elektronik |
| Height | 33mm |
| Length | 27.5mm |
| Depth | 18.5mm |
| Mount Type | Radial |
| Series | WE-CMB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 250V ac |
| Inductance | 2.2mH |
| Standards/Approvals | EN 61760-1:2006 |
| Maximum DC Current | 6A |
| Maximum DC Resistance | 20mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 10mm |
| Standards/ApprovalsEN 61760-1 | 2006 |
| EN 61760-1 | 2006 |
Key Features
- Compact manganese zinc core for improved magnetic performance.
- Low maximum DC resistance of 20 mΩ ensuring efficient current flow.
- Lead pitch of 10 mm suitable for standard PCB hole spacing.
- Inductance tolerance of ±30 percent accommodates various circuit needs.
- Wide operating temperature range from -40°C to 125°C.
- Solder termination style enables reliable electrical connections.
Product Description
Wurth Elektronik 744824622 is a precision 2.2 mH manganese zinc leaded inductor from the WE-CMB series, designed for radial mounting. This inductor supports a maximum DC current of 6 A and features a low DC resistance of 20 mΩ, making it highly efficient for suppressing common mode noise in electronic circuits. Rated for 250 V AC operation and compliant with EN 61760-1:2006, it suits automotive and industrial applications requiring robust electromagnetic interference (EMI) filtering.
The compact design incorporates a manganese zinc core that facilitates high inductance within a small footprint. With dimensions of 27.5 mm length and diameter, height 33 mm, and a lead pitch of 10 mm, this component integrates easily into various power supply filters and motor control circuits. The inductance tolerance is ±30%, accommodating circuit requirements while ensuring performance reliability across a wide temperature range from -40°C to +125°C.
This inductor uses solder termination for secure mounting on printed circuit boards and meets flammability standards ensuring safe operation in diverse environments. Its robust construction and compliance with industry standards make it suitable for industrial, automotive, and power electronics applications, including power line input/output filters and noise suppression in devices without grounding.
Compact manganese zinc core for enhanced magnetic properties. Supports 6 A of continuous DC current for high power applications. Designed to reduce EMI and radio interference effectively. Complies with EN 61760-1:2006 international standard.
Operating temperature range from -40°C to +125°C for versatility. 250 V AC maximum voltage rating for demanding environments. Radial mount style with 10 mm lead pitch for easy PCB integration. Ideal for filters in power electronics, motors, and industrial devices.
Explore more quality electronic components from Wurth Elektronik in the Leaded Inductors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 2.2 mH.
It can handle a maximum DC current of 6 A.
The maximum voltage rating for this inductor is 250 V AC.
The dimensions are 27.5 mm in length and diameter, with a height of 33 mm and a depth of 18.5 mm.
The lead pitch for this inductor is 10 mm, suitable for standard PCB hole spacing.
The operating temperature range is from -40°C to +125°C.
It uses a solder termination style for reliable electrical connections.
The inductance tolerance is ±30%.
This inductor complies with the EN 61760-1:2006 standard.
The core material used is manganese zinc, which enhances magnetic performance.
It is suitable for automotive and industrial applications requiring electromagnetic interference (EMI) filtering.
The maximum DC resistance is 20 mΩ, ensuring efficient current flow.
