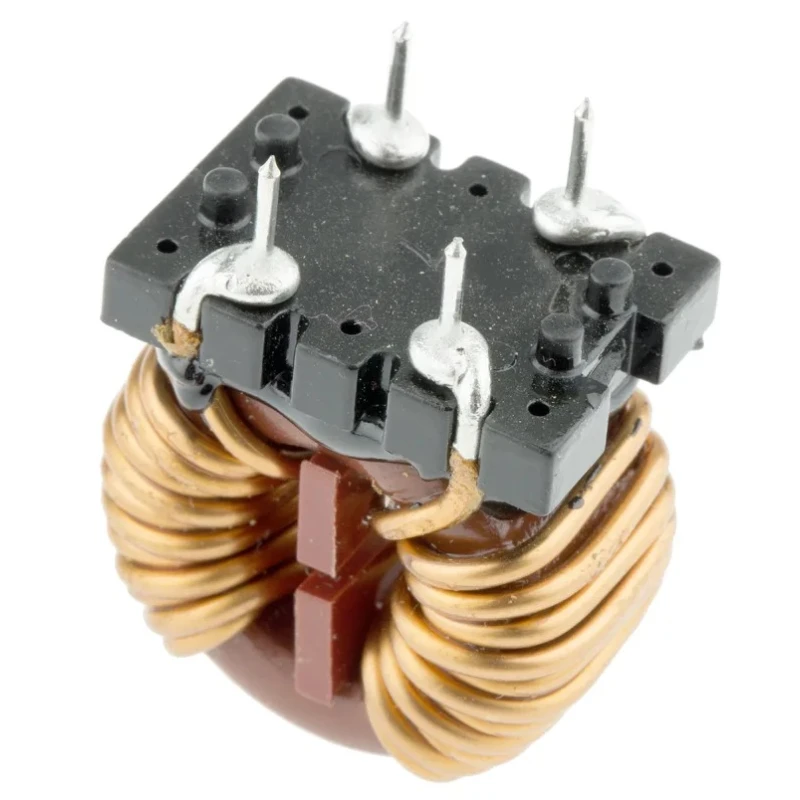

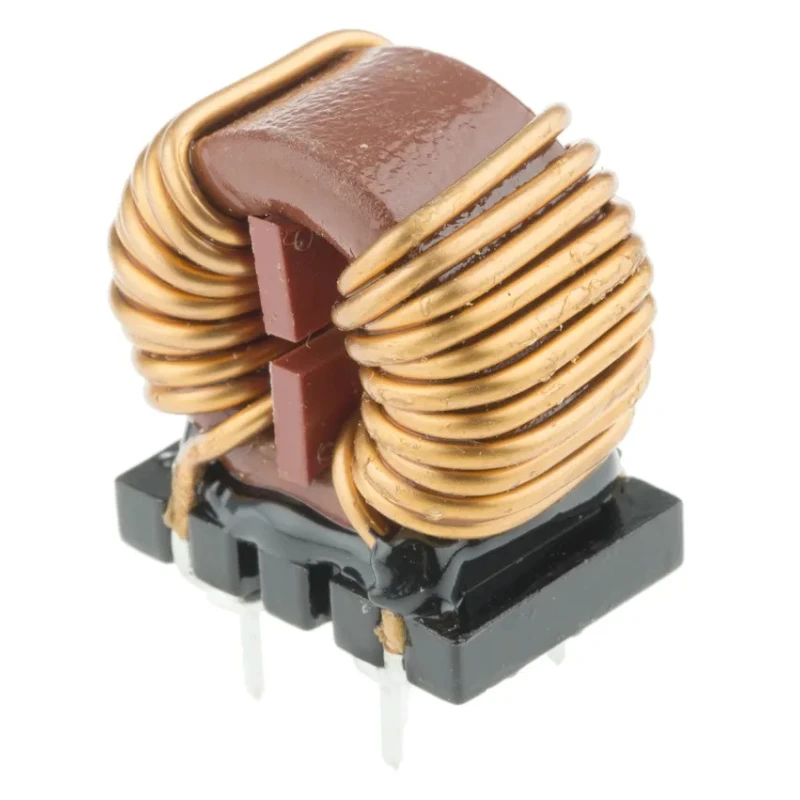

Wurth Elektronik 1 mH Leaded Inductor Radial Mount 10 A IDC 7 mΩ Rdc 250V ac WE-CMB 744824101

Wurth Elektronik 744824101 is a 1 mH leaded inductor with radial mounting, designed for high current applications up to 10 A IDC and low DC resistance of 7 mΩ. Operating at a maximum voltage of 250V AC, it suits a variety of industrial and electronic circuit needs.

The WE-CMB series by Wurth Elektronik is engineered for compactness and high suppression of common mode noise, making it ideal for use in motor control, power line filters, and power electronics where interference reduction is critical.

This inductor features a solder termination style with 4 pins and a 10 mm lead pitch, ensuring reliable electrical and mechanical connections. It has an inductance tolerance of ±30%, tested at 10 kHz, and can operate across a broad temperature range from -40°C to 125°C, suitable for demanding environments.

Its compact form factor with a diameter of 27.5 mm, length of 27.5 mm, height of 33 mm, and depth of 18.5 mm allows for space-efficient PCB designs, while maintaining superior performance.

RoHS compliance assures environmental safety and it meets IEC 60938-2 and UL 94 V-0 flammability standards. These features make it suitable for industrial electronics, construction of power supplies, automation equipment, HVAC systems, and other manufacturing and commercial applications.

Compact radial mount leaded inductor with 1 mH inductance. Maximum DC current rating of 10 A ensures high performance. Low DC resistance of 7 milliohms reduces power losses. Rated for 250V AC maximum voltage operation. Wide operating temperature range from -40°C to 125°C.

Inductance tolerance of ±30% suitable for various applications. Features solder termination style and 4 pin count with 10 mm lead pitch. Compliant with RoHS standards for environmental safety. Designed for high suppression of asymmetrical interferences in motors and power lines.

Compact dimensions with 27.5 mm diameter and 33 mm height enable space-saving PCB layouts.

For customers seeking reliable and efficient electromagnetic interference solutions, the Wurth Elektronik 744824101 offers excellent value and proven performance. Explore more in our Leaded Inductors category at EnvMart.
