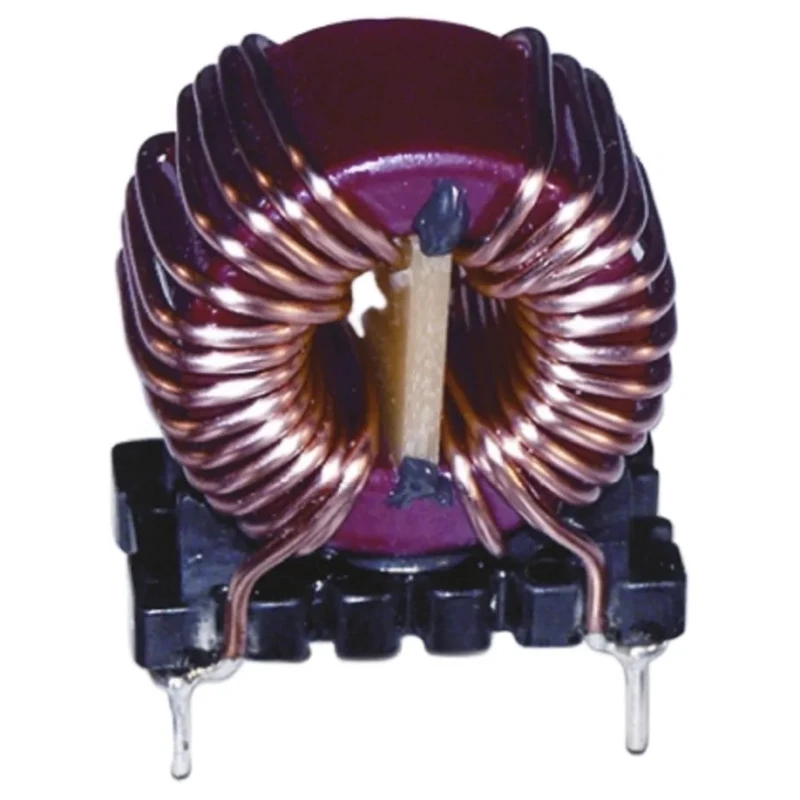

Wurth Elektronik 3.3 mH Manganese Zinc Leaded Radial Inductor 1.5 A IDC 120 mΩ Rdc 250V AC WE-CMB 744822233

Wurth Elektronik 744822233 Leaded Radial Inductor 3.3 mH with manganese zinc core offers high performance in compact size suitable for industrial electronic applications. This inductor provides a maximum DC current rating of 1.5 A with a low DC resistance of 120 mΩ, ensuring efficient electrical performance with minimal losses.

The component is designed with a radial mounting style that fits standard PCB layouts featuring 0.7 mm lead diameter and a 7.7 mm lead pitch dimension. Engineered to operate reliably within a wide temperature range from -40°C up to 125°C, making it ideal for harsh environments.

The inductor is certified with multiple international standards, including ENEC 10, REACH, RoHS, and VDE, underscoring its compliance with safety and environmental regulations.

Its construction featuring manganese zinc core material enhances magnetic properties suitable for suppression of common mode noise and radio frequency interference in electronic devices.

This component’s compact dimensions of 17.5 mm diameter and length, 22 mm height, and 13 mm depth provide space-saving integration into complex circuits. The maximum operating voltage rating of 250V AC makes it suitable for power electronics and filter applications where voltage endurance is critical.

Typical applications include power input/output filters, motor noise reduction, and devices without grounding connections.

Wurth Elektronik’s WE-CMB series is recognized for its high suppression capabilities of asymmetrical interference, broadband screening due to anti-capacitance coiling, and suitability for industrial, manufacturing, and power electronics sectors.
