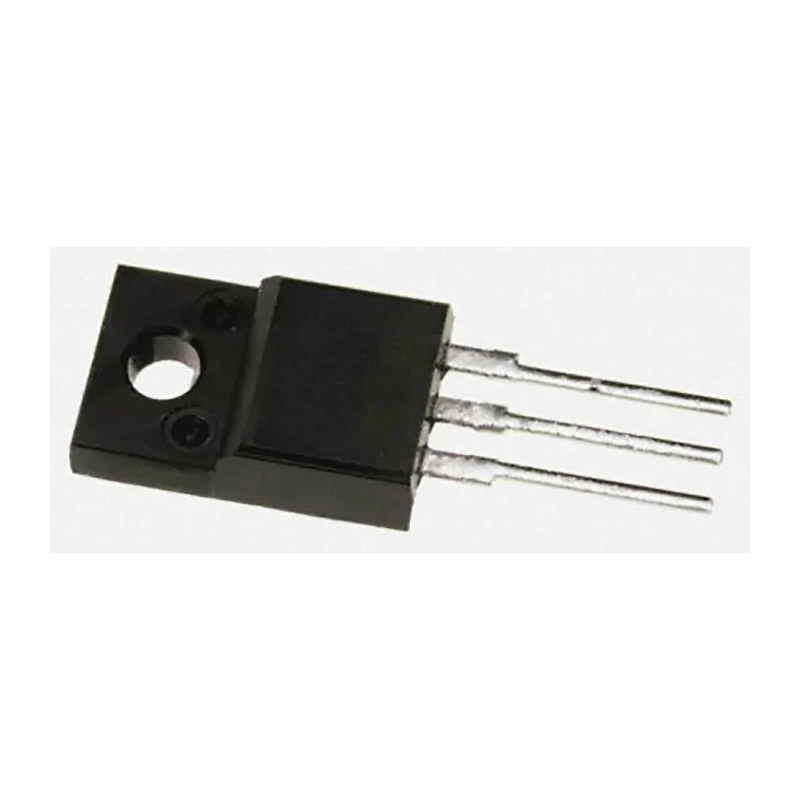

STMicroelectronics 200 V 20 A Switching Diode TO-220ABFP STTH2002CFP

STMicroelectronics STTH2002CFP Switching Diode TO-220ABFP is engineered for reliable power electronics applications requiring fast switching and high current capacity. This diode supports a maximum continuous forward current of 20 amperes and withstands a peak reverse voltage of 200 volts, ensuring robust performance under demanding load conditions.

The diode is housed in a TO-220ABFP package, designed for through-hole mounting with a three-pin configuration providing ease of integration into electronic circuits and devices. Its peak non-repetitive forward surge current rating of 90 amperes allows it to manage transient high current pulses commonly encountered during power-up or fault conditions.

With a maximum forward voltage of 1.25 volts, this component minimizes conduction losses and improves overall system efficiency. Its capability to operate between -65°C and 175°C extends usability across diverse industrial, automotive, and commercial temperature environments.

The fast peak reverse recovery time of 27 nanoseconds enhances switching performance, making it suitable for use in switching power supplies, inverters, and other high-speed power electronic circuits.

The physical dimensions, including a length of 10.4 millimeters, width of 4.6 millimeters, height of 9.3 millimeters, and pin diameter of 3 millimeters, support compact and efficient PCB layouts.

The diode features a TO-220ABFP package for efficient heat dissipation. Enabled for switching applications with a common cathode diode configuration. Supports a wide operating temperature range from -65°C to 175°C. Designed to handle transient surge currents up to 90A.

Fast reverse recovery time of 27ns minimizes switching losses. Low forward voltage drop of 1.25V ensures minimal conduction loss. Compact dimensions aid in efficient circuit design and heat management.

This diode is ideal for use in industrial power control, automotive electronic circuits, and general-purpose rectification duties where switching speed and current handling are critical. It meets RoHS compliance standards, ensuring environmentally responsible manufacture and disposal.
