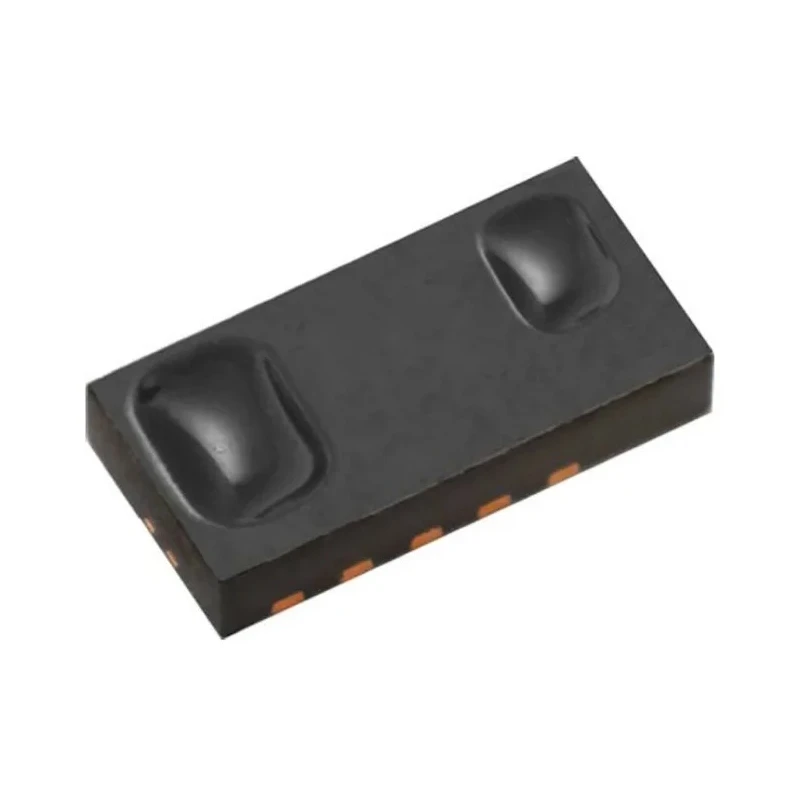

Vishay Proximity Sensor & Infrared Emitter VCNL3020 2.5 V to 3.6 V 200mm Sensing Distance VCNL3020
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 830μm |
| Length | 4.9mm |
| Model | VCNL3020 |
| Width | 2.4mm |
| Mount Type | Surface |
| Output type | Digital, Open Drain |
| Series | VCNL3020 |
| Sensing Distance | 200mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Maximum Switching Frequency | 3400kHz |
| Maximum Output Current | 200mA |
| Pin Count | 10 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.5V |
Key Features
- Integrated proximity sensor with infrared emitter and interrupt function.
- Supports I²C serial communication interface for precise control.
- Programmable LED drive current from 10 mA up to 200 mA.
- Maximum switching frequency of 3.4 MHz enables fast response.
- Compact surface-mount design with 10 pins and dimensions 4.9 mm × 2.4 mm × 0.83 mm.
- Operating temperature range from -25°C to 85°C suitable for various environments.
- Output type is digital with open drain for easy interfacing.
- Maximum output current rated at 200 mA.
Product Description
Vishay VCNL3020 is a fully integrated Proximity Sensor with an Infrared Emitter and Interrupt capability, designed for advanced sensing in electronic components and devices. Operating at a voltage range of 2.5 V to 3.6 V, it provides proximity detection up to 200 mm and communicates via an I²C serial interface, offering precise and reliable sensor data.
Its programmable LED drive current ranges from 10 mA to 200 mA, allowing flexible settings based on application needs. The sensor supports a maximum switching frequency of 3.4 MHz and outputs a digital, open drain signal, making it ideal for embedded systems and sensor IC implementations.
The VCNL3020 features a compact and surface-mount design with a 10-pin package, measuring just 4.9 mm in length, 2.4 mm in width, and 830 μm in height. Its operating temperature range from -25°C to 85°C supports use in diverse industrial and commercial environments.
Manufactured in the Philippines, this proximity sensor serves applications in electronics manufacturing, consumer electronics, industrial automation, and other fields requiring accurate proximity sensing and infrared detection.
Integrated proximity sensor with infrared emitter and interrupt function. 16-bit effective resolution with I²C serial communication interface. Programmable LED drive current from 10 mA to 200 mA. Sensing distance up to 200 mm.
Digital output type with open drain. Surface mount package with 10 pins and compact dimensions. Operating temperature from -25°C to 85°C. Maximum switching frequency of 3.4 MHz. Maximum supply voltage of 3.6 V. Manufactured in the Philippines.
This Proximity Sensor IC is suitable for use in telecommunications, industrial applications, and consumer electronics, enhancing device interaction by proximity and light sensing. Browse EnvMart's extensive range of proximity sensors and semiconductor solutions for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VCNL3020 has a sensing distance of up to 200 mm.
This model operates within a temperature range of -25°C to 85°C.
It provides a digital output type with an open drain configuration.
The maximum output current rated for this sensor is 200 mA.
The maximum supply voltage for the VCNL3020 is 3.6 V.
It supports an I²C serial communication interface for precise control.
The dimensions of this proximity sensor are 4.9 mm in length, 2.4 mm in width, and 830 μm in height.
The maximum switching frequency is 3.4 MHz, enabling fast response times.
This model features a 10-pin surface mount package.
The programmable LED drive current ranges from 10 mA to 200 mA.
The VCNL3020 is manufactured in the Philippines.
It is suitable for applications in telecommunications, industrial automation, and consumer electronics.
