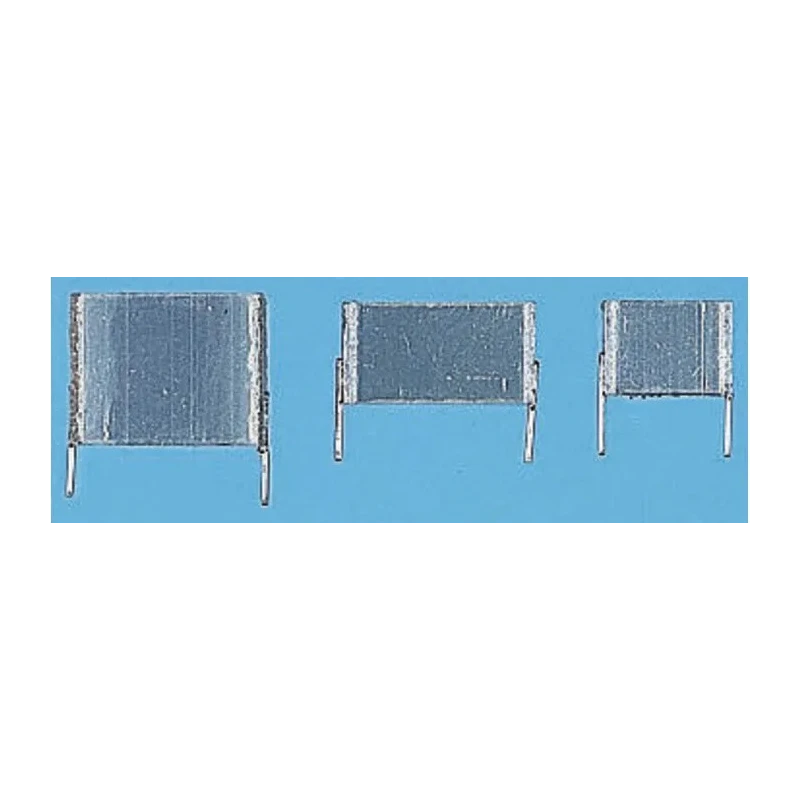

TDK B32560 Film Capacitor 150nF 63V AC 100V DC Through Hole 2 Pin B32560J1154K000

TDK B32560J1154K000 film capacitor is a precision passive component with a capacitance of 150nF and a rated AC voltage of 63V and DC voltage of 100V. It features through-hole mounting with a 7.5mm lead pitch and two pins, optimized for both industrial and general consumer electronics applications.

The capacitor employs a stacked-film radial wire-ended metallised polyester film technology providing reliable electrical performance and long-term stability under maximum operating temperatures up to 100°C. These capacitors are uncoated, requiring consideration for creepage and clearance in circuit design.

TDK B32560 series capacitors comply with RoHS standards, making them suitable for green electronics manufacturing. Typical use cases include energy-saving lamp ballast circuits and various industrial electronic equipment where compact size and stable capacitance are critical.

The device's compact dimensions of 9mm length, 4.7mm height, and 2.5mm width, combined with a pin diameter of 0.5mm, allow easy insertion and soldering on printed circuit boards while maintaining mechanical integrity.

This film capacitor is suitable for applications in industrial electronics, consumer electronic products, power supply circuits, and other electronic assemblies requiring high-reliability capacitors with precise capacitance and voltage ratings.

This capacitor features a 7.5mm lead pitch for secure PCB mounting. Maximum operating temperature is 100°C ensuring stability in demanding environments. The device uses stacked-film radial wire-ended metallised polyester film construction.

It is RoHS compliant, suitable for eco-friendly applications. Ideal for lamp ballast circuits in energy-saving lamps and industrial electronics. The capacitor dimensions are 9mm length, 4.7mm height, and 2.5mm width. Pin diameter is 0.5mm, supporting robust mechanical connections.
