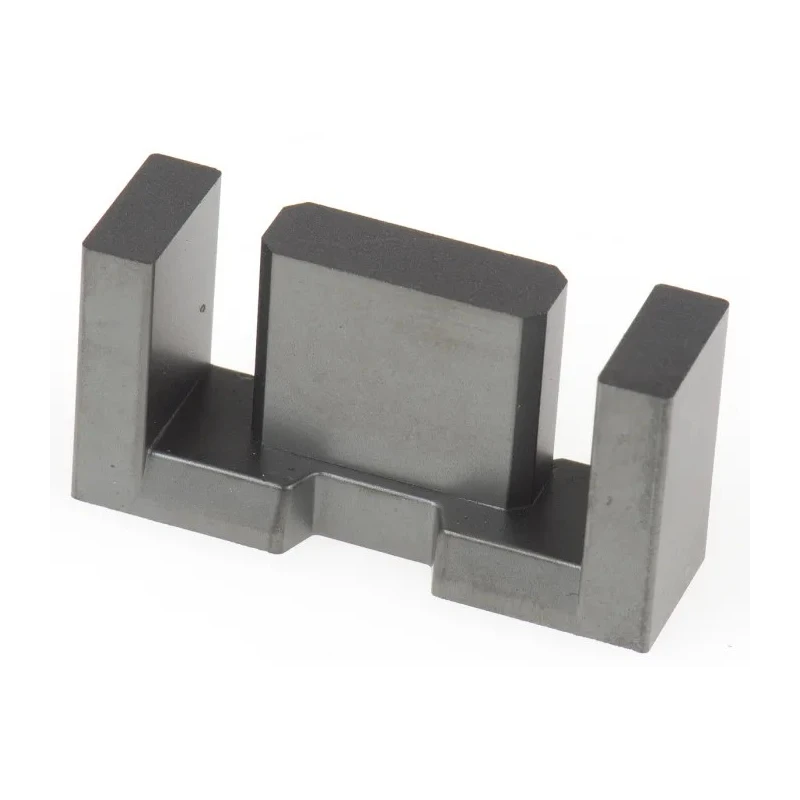

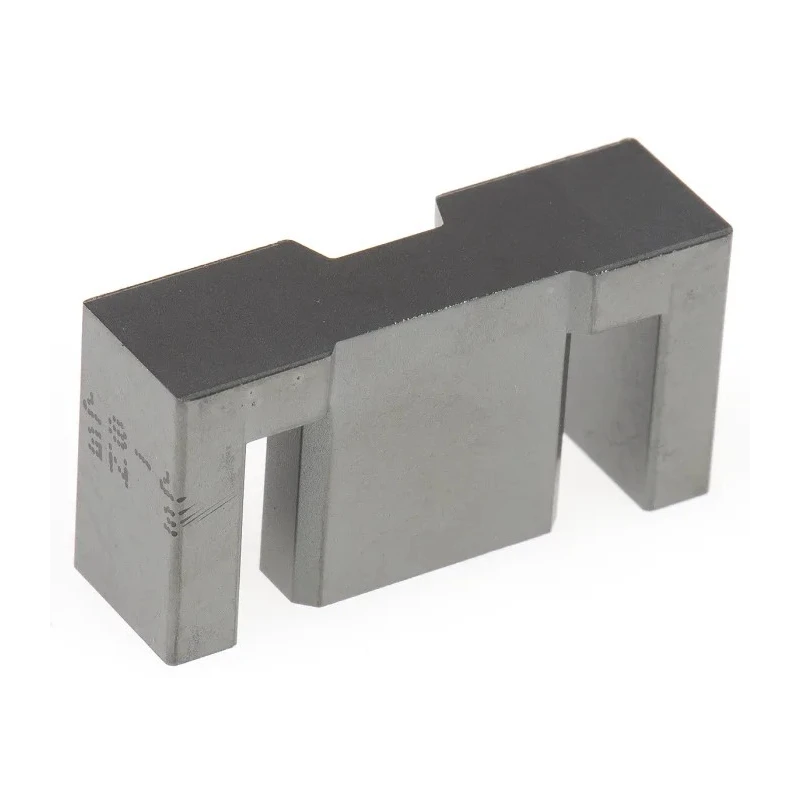

TDK Transformer Ferrite Core EFD 30, 2050 nH, N87 Material, 30mm x 15mm x 9.1mm B66423G0000X187

TDK B66423G0000X187 is a high-quality transformer ferrite core with EFD 30 core size, 2050 nH AL rating, and made from N87 ferrite material. It measures 30 mm in length, 15 mm in width, and 9.1 mm in depth. This core is specifically designed for use with DC DC converters, providing an optimized magnetic path for efficient power conversion.

The N87 material offers excellent magnetic permeability and low core losses at high switching frequencies, making it suitable for industrial electronics, power supplies, and telecommunications equipment.

With a maximum operating temperature of 180°C, this transformer ferrite core is capable of sustained operation in demanding thermal conditions often found in commercial and industrial environments.

Typical applications include power supply units, DC DC conversion modules, and electronic transformers where compact size and reliable magnetic properties are required. Ferrite core designed to optimize transformer efficiency and reduce core losses.

Core dimensions are 30 mm length, 15 mm width, and 9.1 mm depth for compact assembly. Material N87 ensures high magnetic performance and low losses at high frequencies. Maximum operating temperature reaches 180°C suitable for demanding industrial environments.

AL rating of 2050 nH for precise inductance characteristics in power applications. Compatible with DC DC converters for power conversion applications. Manufactured to strict quality standards by TDK for reliable performance.

No additional certifications or approvals apply to this transformer core. This product is ideal for engineers and designers working on power conversion and electronic transformer assemblies seeking a proven magnetic core solution.
