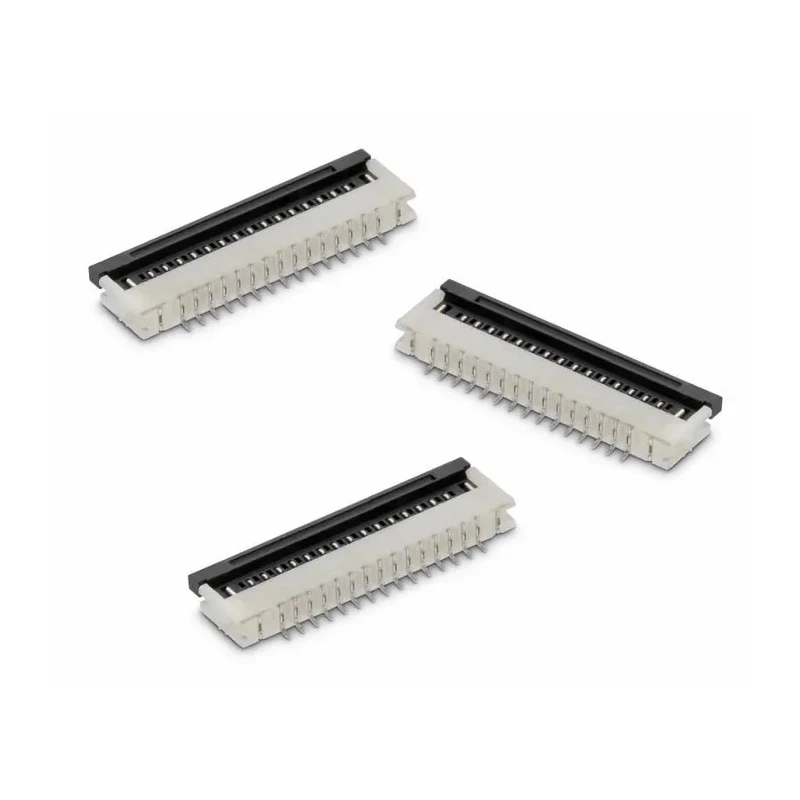

Wurth Elektronik 28 Way Horizontal Female 1 mm Pitch FPC Connector, Solder Termination 686128148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 28 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- This FPC connector features a 1 mm pitch with 28 contacts, supporting up to 1A current.
- Constructed with phosphor bronze contacts plated with tin over nickel for enhanced conductivity and durability.
- It has a bottom contact position and a horizontal orientation, designed for surface mount applications.
- Equipped with a low insertion force ZIF (Zero Insertion Force) mechanism and a locking flip actuator.
- Operates reliably between -40°C and 105°C, suitable for various industrial environments.
- Housing is made of polyamide material ensuring耐熱性 and mechanical stability.
- Ideal for compact electronic designs requiring high density, secure FPC connections.
- Manufactured under the WR-FPC series, this connector is a cost-effective wire to board solution.
Product Description
Wurth Elektronik 686128148922 28 Way Horizontal Female 1 mm Pitch FPC Connector is a surface mount device with solder termination, designed for secure and low profile FPC connections in modern electronic applications.
This WR-FPC connector features a bottom contact configuration with a hinged flip-lock actuator that provides a Zero Insertion Force (ZIF) connection, significantly reducing cable insertion stress and improving the longevity of the connection.
The phosphor bronze contacts with tin over nickel plating ensure low contact resistance and high reliability. Its polyamide housing offers excellent mechanical strength and thermal stability within the operating temperature range of -40°C to 105°C.
The 1 mm pitch spacing and 28 contacts allow for high-density connections in compact spaces, making it ideal for interfacing with small displays, keyboards, or other miniaturized electronic components.
The connector supports a voltage rating of 100 V AC and a current rating of 1A, suitable for a broad range of low power signal transmission applications in industrial, electronic manufacturing, and telecommunications sectors.
This product's low profile and lightweight design contribute to optimized space usage and enhanced device portability. Its flip-lock hinge actuator ensures the cable is securely locked, preventing accidental disconnections during operation or handling.
The solder retention feature stabilizes the connector on the PCB during soldering processes, enhancing assembly robustness. Manufactured in China, this connector conforms to standard industry practices yet has no specific industry approval certifications.
Perfect for applications demanding secure, reliable, and compact FPC connectivity solutions, this WR-FPC connector from Wurth Elektronik streamlines PCB assembly and enhances product performance.
Explore more FPC Connectors and related electronic components from EnvMart’s extensive selection to fit your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 1A, making it suitable for low power signal transmission applications.
It has a voltage rating of 100V AC, allowing it to be used in various electronic applications.
This connector operates reliably between -40°C and 105°C, suitable for diverse industrial environments.
The housing is made of polyamide, while the contacts are constructed from phosphor bronze and plated with tin over nickel for enhanced conductivity.
It features 28 contacts, allowing for high-density connections in compact electronic designs.
This model uses solder termination, designed for secure connections on printed circuit boards (PCBs).
The connector has a horizontal orientation, making it suitable for surface mount applications.
It features a Zero Insertion Force (ZIF) mechanism, which reduces cable insertion stress and enhances connection longevity.
Yes, it is specifically designed for surface mount applications, allowing for efficient use of space on PCBs.
The contact position is bottom, which is typical for this type of FPC connector.
This connector is part of the WR-FPC series, which includes various FPC connectors designed for compact electronic applications.
The connector is manufactured in China, adhering to standard industry practices.
